Description

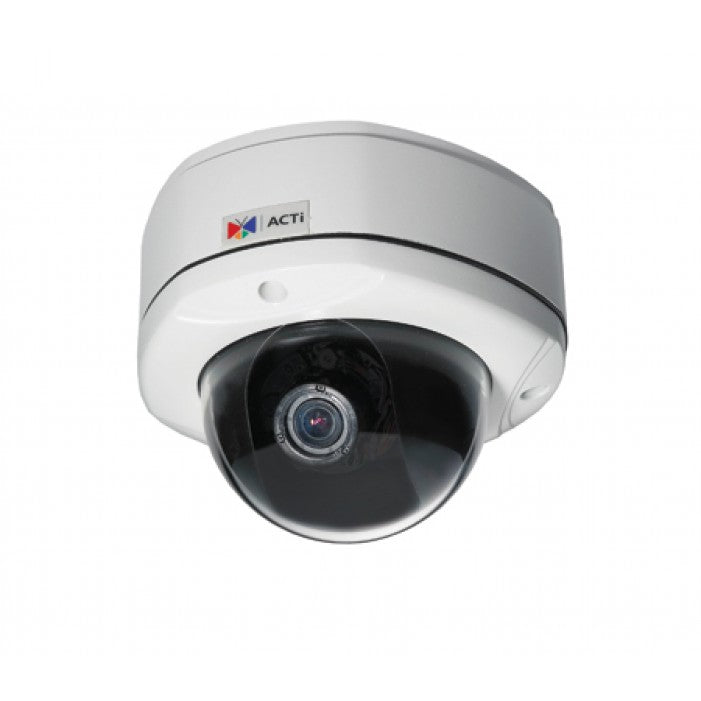

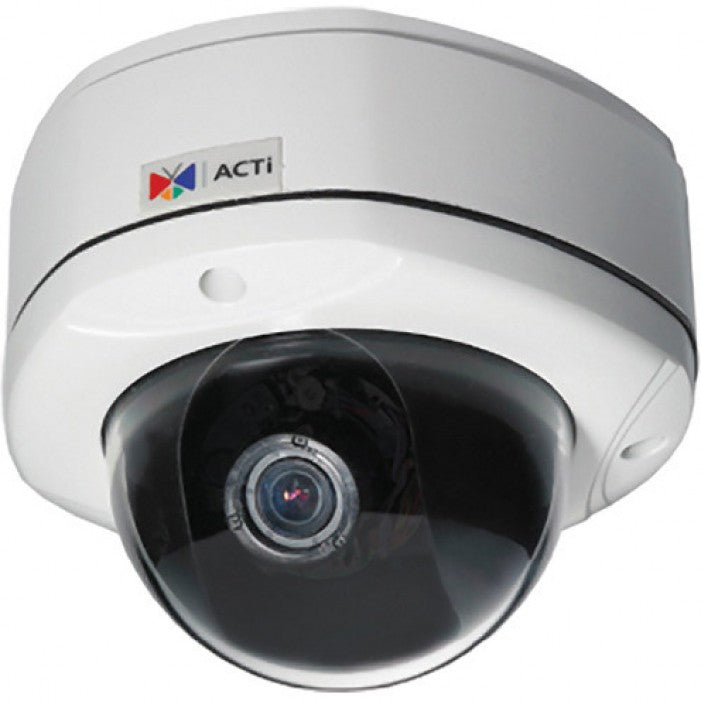

The ACTi KCM-7311 4 MP IP Day/Night Vandal-Proof Dome Camera with P-Iris & WDR provides excellent color sensitivity and high-quality images for both day and night applications. Thanks to the 1/3.2" Aptina Progressive Scan CMOS sensor, the camera provides clear and crisp images at resolutions of up to 2032 x 1920 at 8 fps. The included P-Iris (Precise Iris) lens automatically adjusts incoming light levels at all times, providing detailed imagery with optimal sharpness and the applicable depth of field. Along with MPEG-4 SP and MJPEG formats, this camera supports H.264 compression technology that provides small-sized files and uses less network bandwidth. With its mechanical IR cut filter, the camera assures images with good color rendition in up to 0.1 lux illumination at f/1.4 and monochrome visuals in up to 0.05 lux illumination at f/1.4. With the ExDR (Extended Dynamic Range) feature, the camera properly exposes scenes containing a mix of bright and dark regions, thus enabling you to identify details of objects in a high-contrast environment.
The KCM-7311 gives you the freedom to define up to 4 regions of interest within the full image. Further, these regions can be treated as independent streaming channels and can be scheduled individually for recording by an NVR. For example, only the entrance within the camera's view can be continuously recorded while the other 3 areas will only be streamed live. This not only helps in optimum utilization of bandwidth but also provides a cost-effective monitoring solution. The Motion Detection feature triggers an alarm when movement is detected in a designated portion of the video display. In addition, you can block up to 4 configurable regions of an image for security reasons. The Power over Ethernet feature (PoE) transfers both power and data over a single Ethernet network cable, eliminating the need to install the camera near a power supply.
Product Features
- 4 Megapixel
- 3.6x Optical Zoom (3.3-12mm) P-Iris
- 1/3.2" Progressive Scan CMOS Image Sensor
- Day/Night with Superior Low Light Sensitivity (SLLS)
- Advanced Wide Dynamic Range (WDR)
- 8 fps at 2032x1920 / 15 fps at 1920x1080
- Two-Way Audio
- H.264 / MPEG-4 / MJPEG Compression
- MicroSDHC memory card slot
- Video Motion Detection / Privacy Masks
- IP66 Rated Weatherproof
- Vandal Resistant
- PoE Class 3 / 12VDC
KCM-7311 Data SheetGeneral Information
