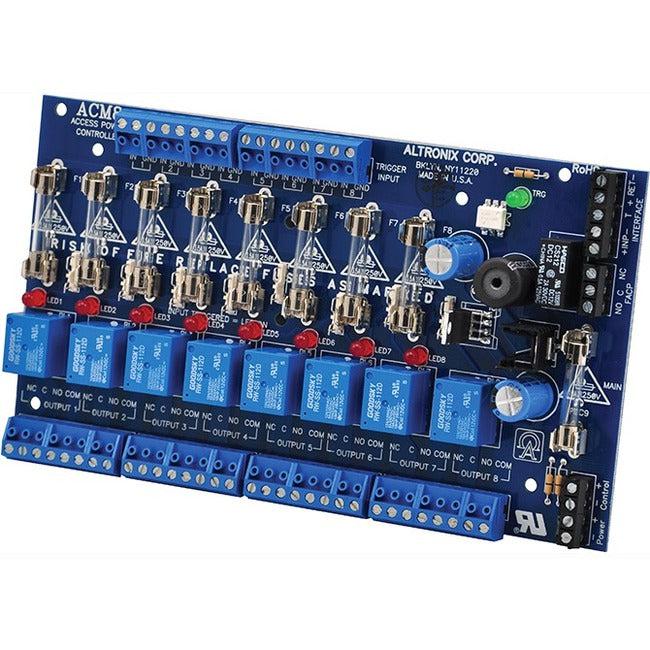

Altronix ACM8 Power Controller
ACM8 unit converts one 12 to 24 volt AC or DC input into eight independently controlled fuse protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs.
- UL and cUL listed.
- Fire alarm disconnect is selectable by output.
- Individually selectable Fail-Safe/Fail-Secure outputs or dry form "C" contacts.
- Converts (1) 12 to 24 volt AC or DC input into (8) fused power outputs.
- 8 Output Access Power Controller.
Product Type: Power Controller
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: Altronix
Compatibility:
Access Control Devices:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Form Factor: Wall Mountable
Manufacturer: Altronix Corporation
Product Model: ACM8
Product Name: ACM8 Power Controller
Application/Usage: Electric Strike
Manufacturer Part Number: ACM8
Manufacturer Website Address: http://www.altronix.com
Packaged Quantity: 1
Limited Warranty: Lifetime
Weight (Approximate): 11.20 oz
