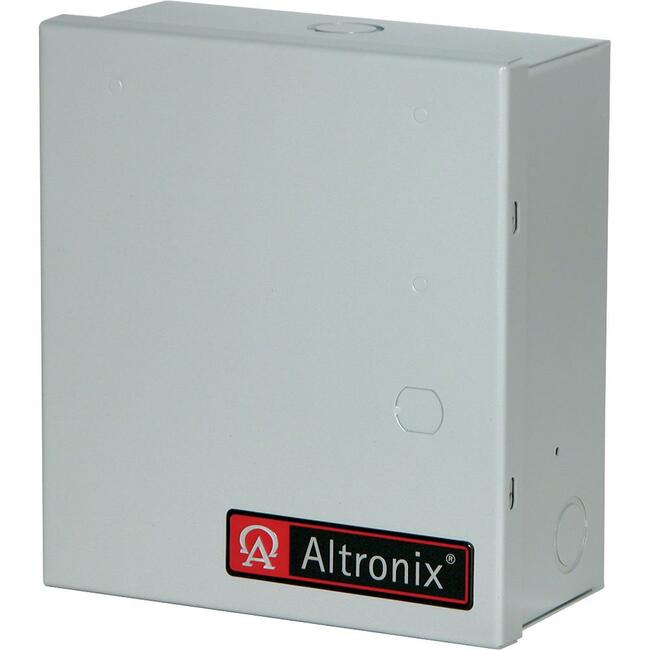

Altronix ACM4CBE Power Module
ACM4CBE converts one (1) 12 to 24 volt AC or DC input into four (4) independently controlled PTC protected outputs. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. Unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the four (4) outputs.
Product Type: Power Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Product Series: ACM
Brand Name: Altronix
Manufacturer: Altronix Corporation
Product Model: ACM4CBE
Product Name: ACM4CBE Power Module
Manufacturer Part Number: ACM4CBE
Manufacturer Website Address: http://www.altronix.com
Limited Warranty: Lifetime
Weight (Approximate): 6.70 lb
