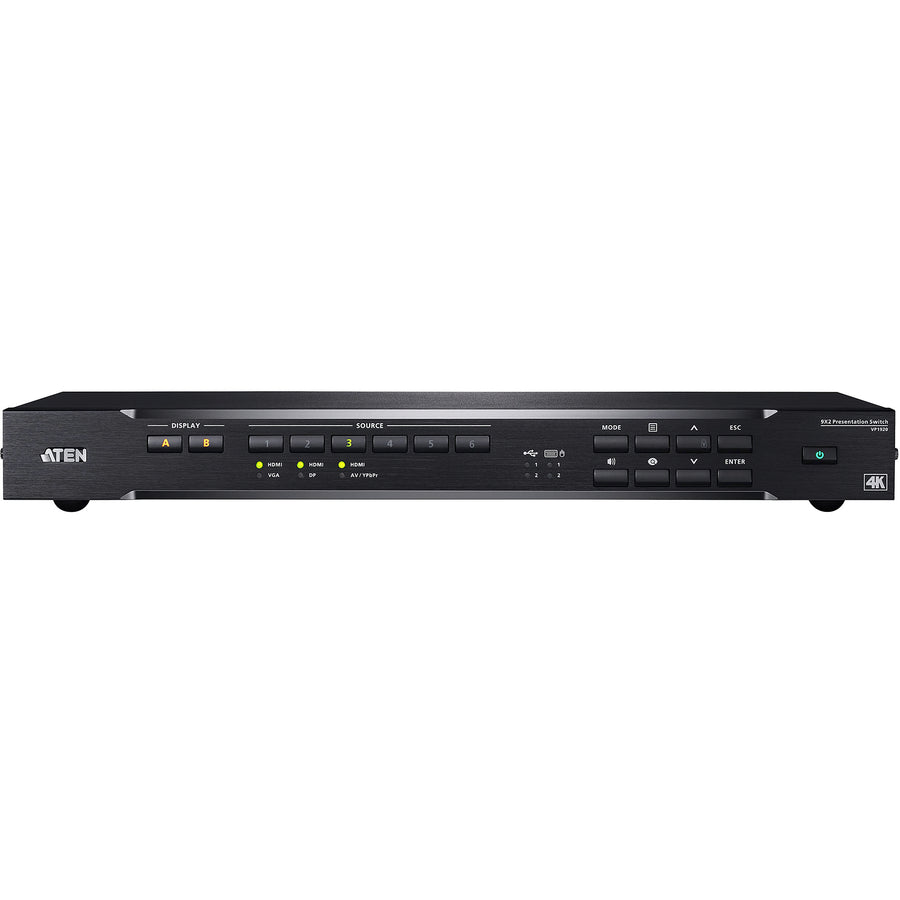

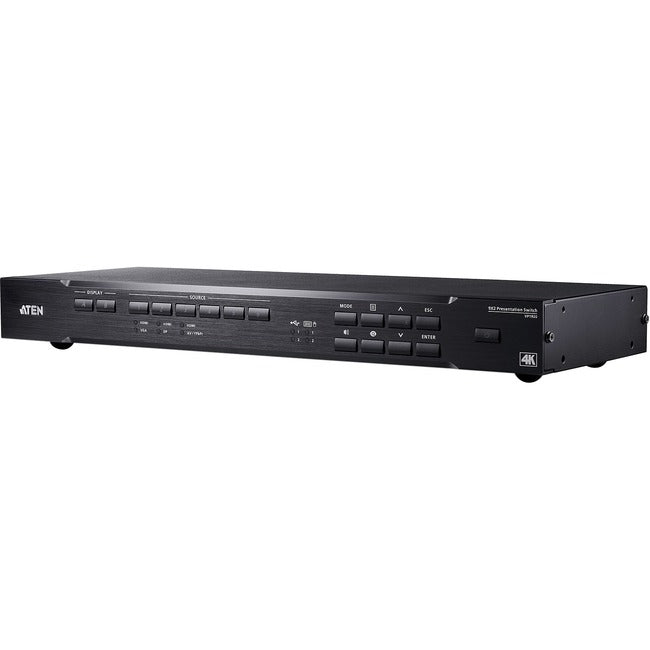

Aten 9 x 2 4K Presentation Matrix Switch-TAA Compliant
The ATEN VP1920 is a 3-in-1 presentation switch that integrates a video matrix switch, an audio processor, and analog-to-digital converter functions. With nine multi-format inputs to two HDMI 4K outputs, it is designed to boost the efficiency and impact of professional presentations.
With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition centers or hotels.

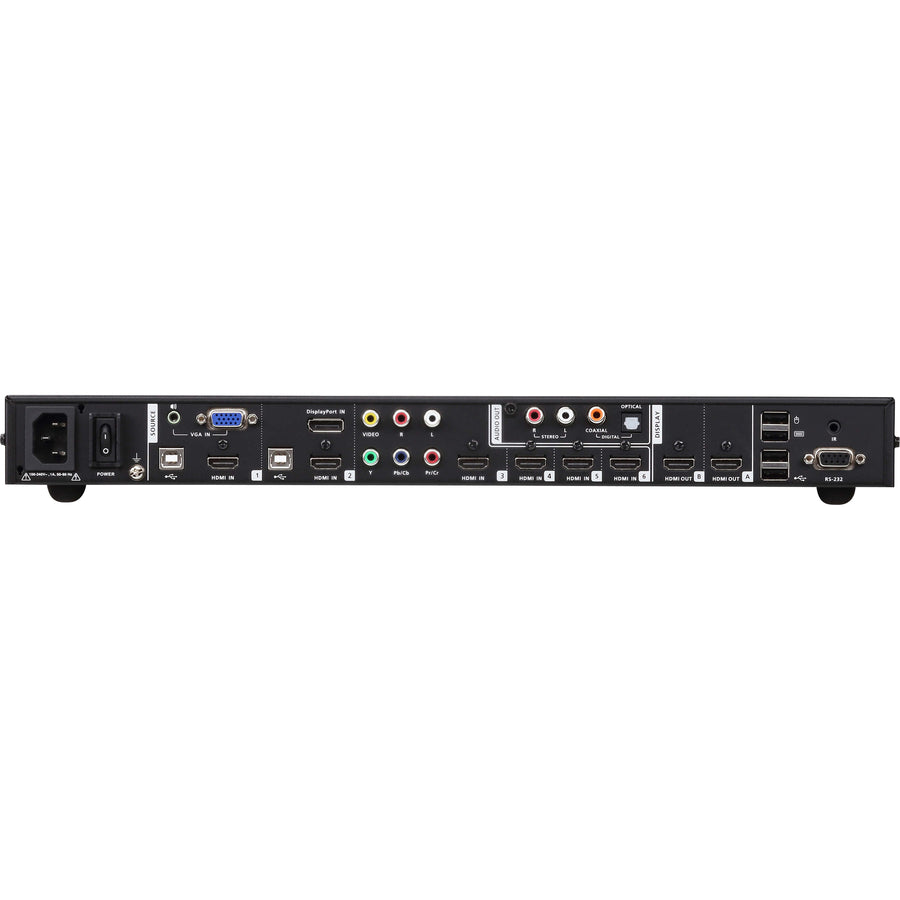

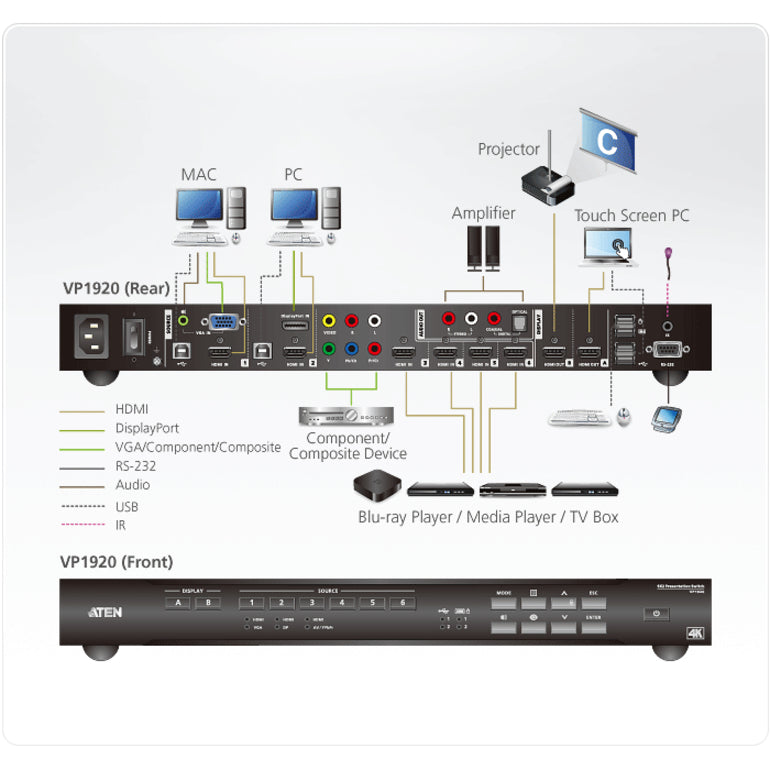

- Supports multi-format 9 Inputs and 2 HDMI outputs: 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr), 3 HDMI inputs, 2 HDMI output,
- VGA port supports universal analog input formats (RGBHV/RGBs/YCbCr/YPbPr)
- Embed/De-embed Audio-HDMI/DisplayPort audio signals can be extracted to digital/analog audio signals; stereo / composite/component audio can be embedded to digital audio signals
- Superior video quality up to 4096 x 2160@60Hz (4:2:0) / 4096 x 2160@30Hz (4:4:4) (HDMI/DP)
- EDID Expert™ - automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
- HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
- Multiple control methods via front-panel pushbuttons, RS-232, OSD, and IR remote
- Source preview - quickly identify and switch to the target content
- Selectable display modes (Matrix, Mirror, or PiP) for different presentation demands
- Auto switching - automatically detects and switches to a new source as soon as it is connected for time-saving and convenience
Product Type: Audio/Video Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: ATEN
Form Factor: Desktop
Manufacturer: ATEN Technology, Inc
Product Model: VP1920
Product Name: 9 x 2 4K Presentation Matrix Switch
Manufacturer Part Number: VP1920
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:
- 9 x 2 4K Presentation Matrix Switch
- 1 x Power Cord
- 1 x IR Receiver
- 1 x IR Remote Control
- 1 x User Instructions
Weight (Approximate): 5.20 lb
