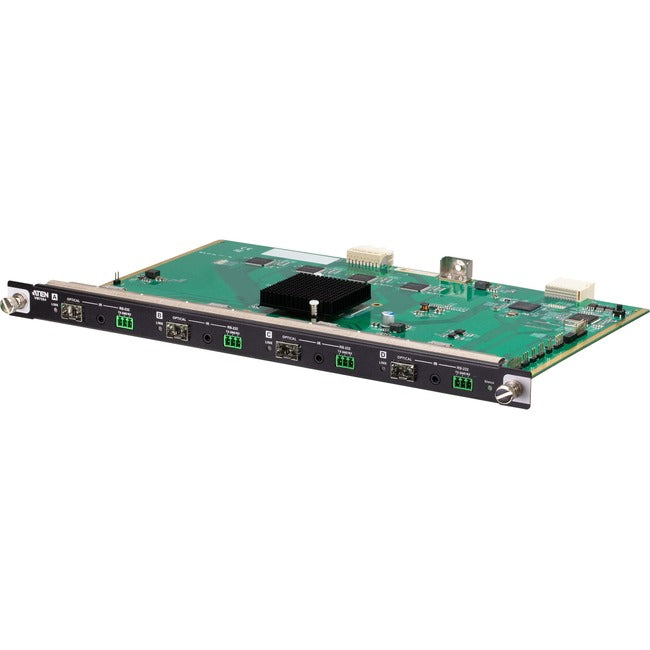

VanCryst VM7584K1 4-Port 10G Optical Input Board (4K@300m (K1, MM))
The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces.

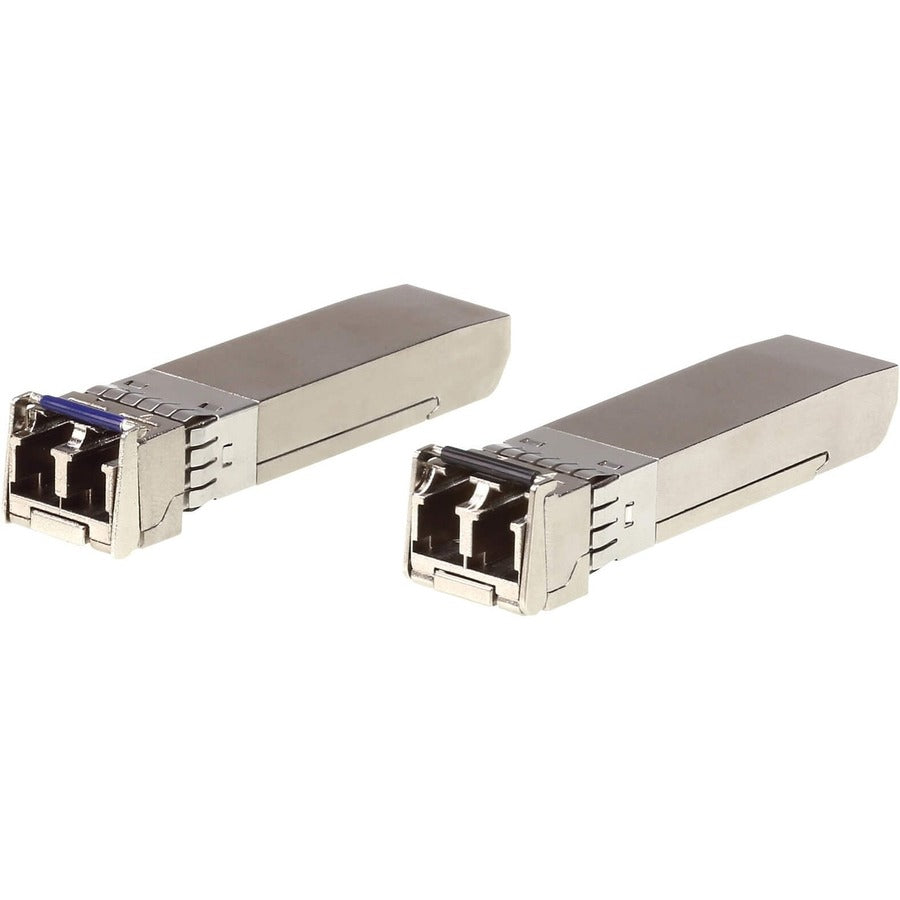

Designed with fiber optics technology for long-distance transmission, the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1) or 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
The ATEN VM input/output boards are hot-swappable which gives system integrators great flexibility and efficiency for installation and maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for scalable video-critical applications.
- Compatible with the VM3250 / VM3200 / VM1600A; mix and match with modular I/O boards of any type for optimum flexibility
- Extends audio/video, IR, and RS-232 control signals over long distances via duplex fiber optic cables
- Superior video quality over long-distance transmission - up to 4096 x 2160@60Hz (4:2:0), 300m with VM7584K1 over multimode cables or 10km with VM7584K2 over single-mode cables
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
- Consumer Electronics Control (CEC) support
- Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel - IR transmission is processed one direction at a time, ranging from 30 kHz to 60 kHz
- EDID Expert™ - selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- Hot-swappable fiber optic module and I/O boards for easy integration and maintenance
Product Type: Optical Input Board
Product Color: Black
Product Material: Metal
Brand Name: VanCryst
Compatibility:
VanCryst Modular Matrix Switch:
Length: 13.9"
Manufacturer: ATEN Technology, Inc
Product Model: VM7584K1
Product Name: VM7584K1 4-Port 10G Optical Input Board (4K@300m (K1, MM))
Product Line: Professional
Application/Usage: Matrix Switcher
Manufacturer Part Number: VM7584K1
Manufacturer Website Address: http://www.aten.com/us/en/
Weight (Approximate): 1.26 lb
