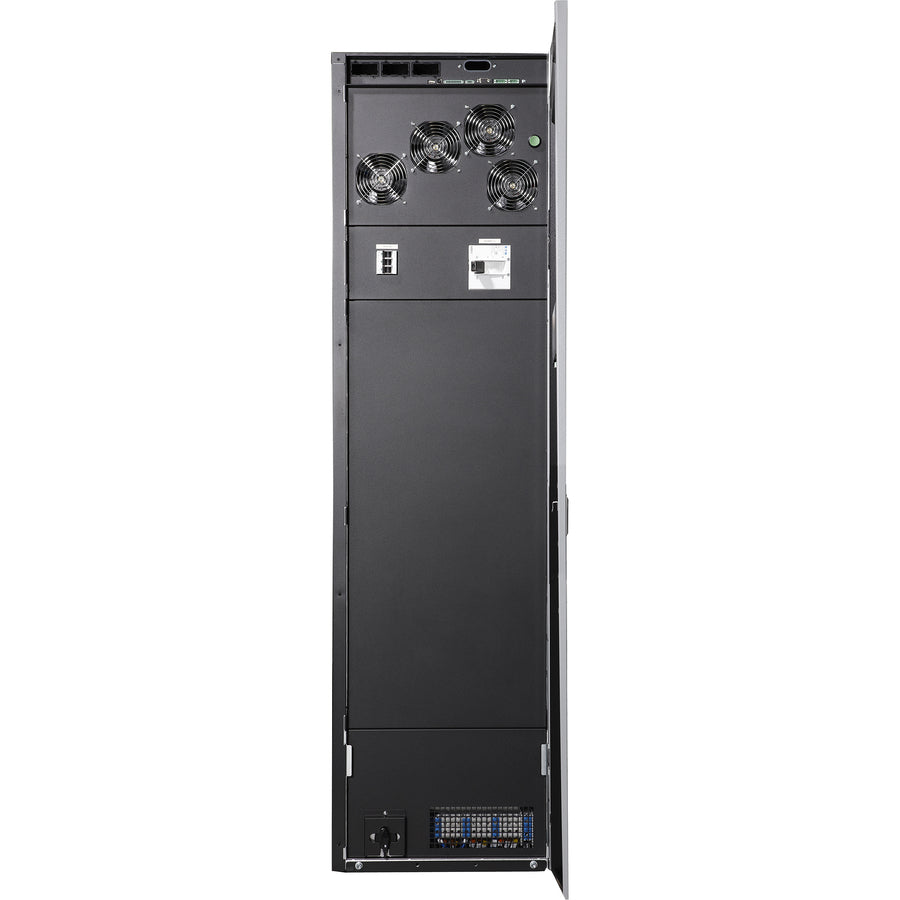

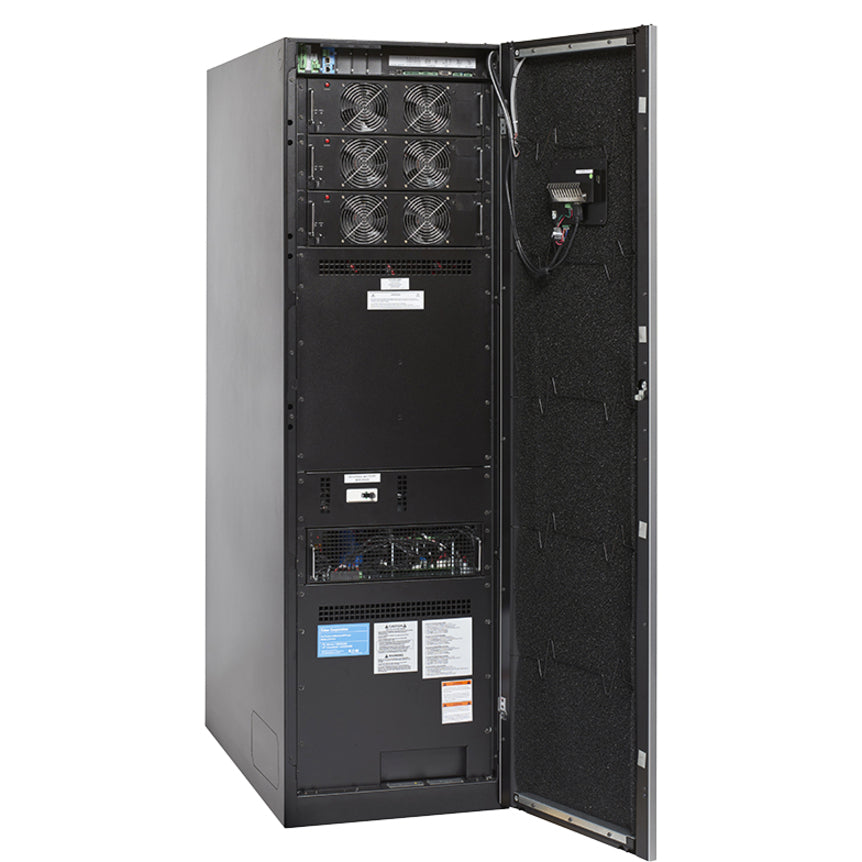

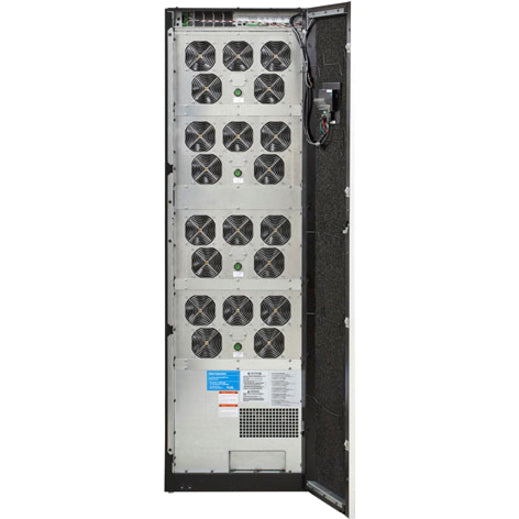

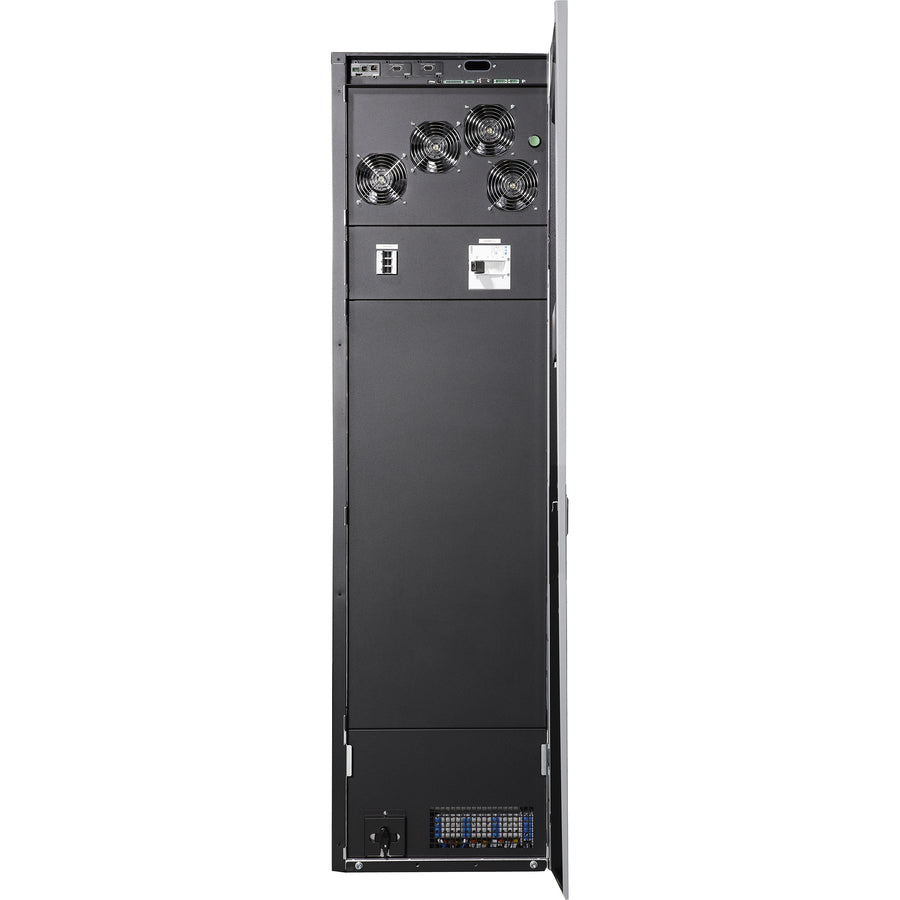

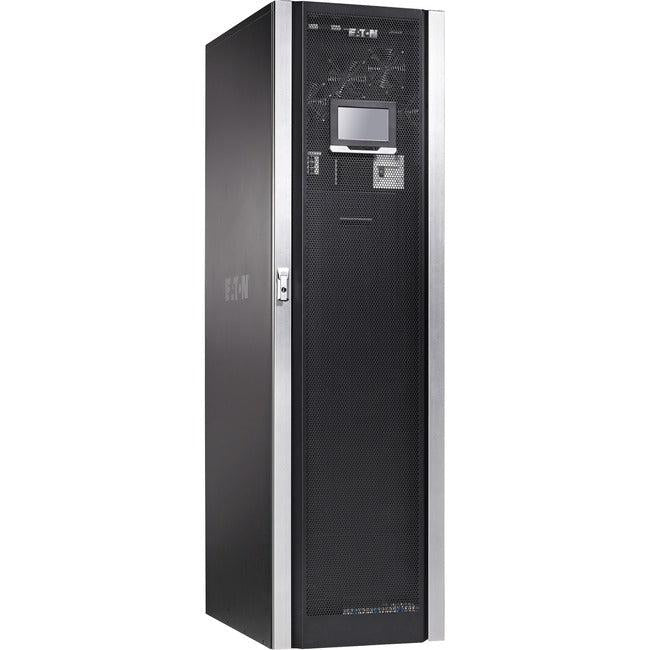

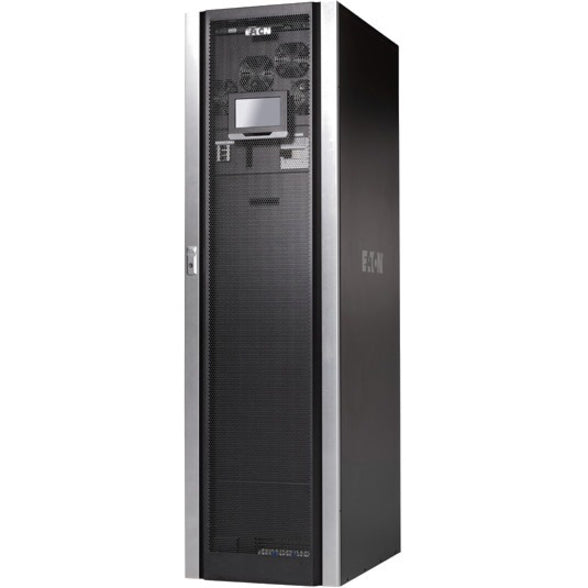

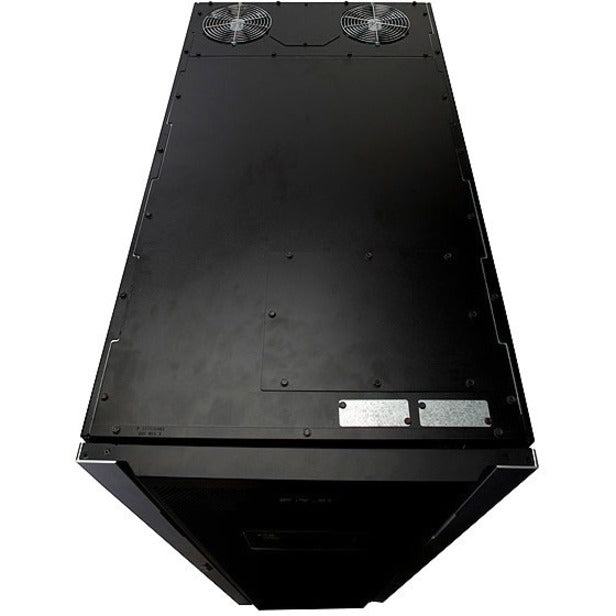

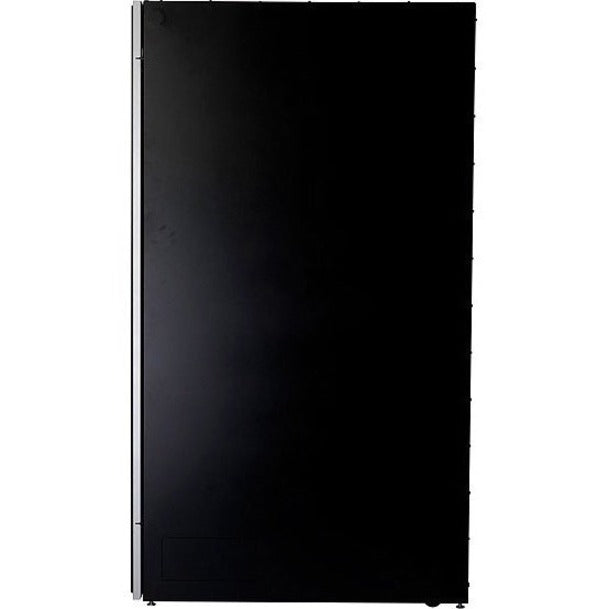

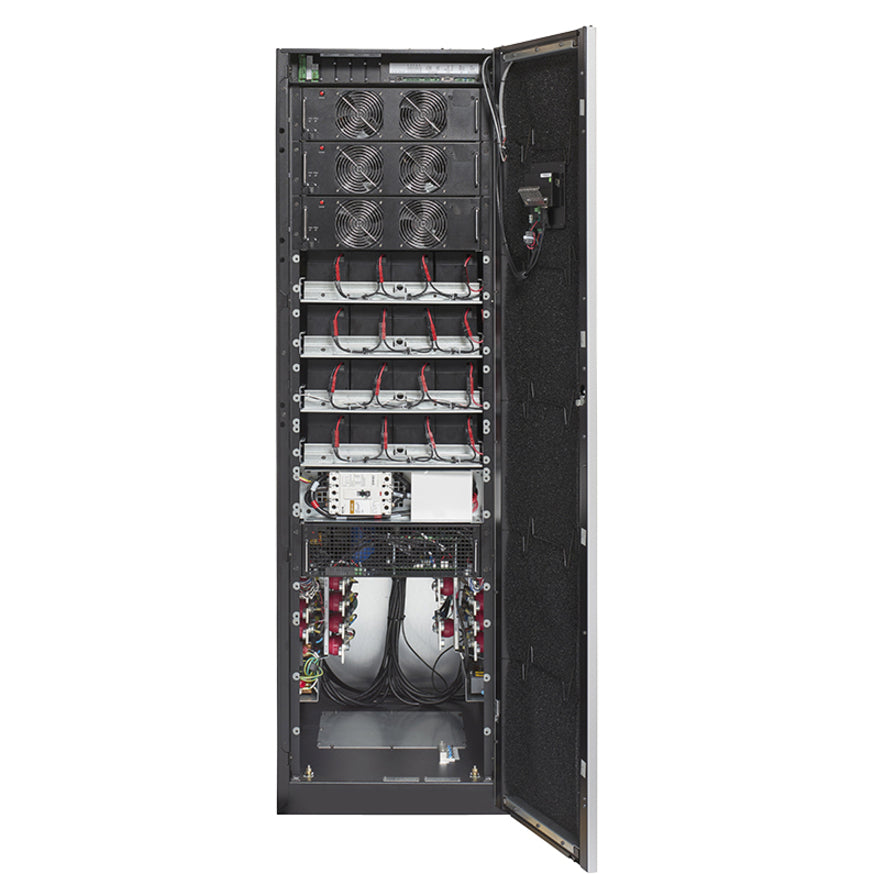

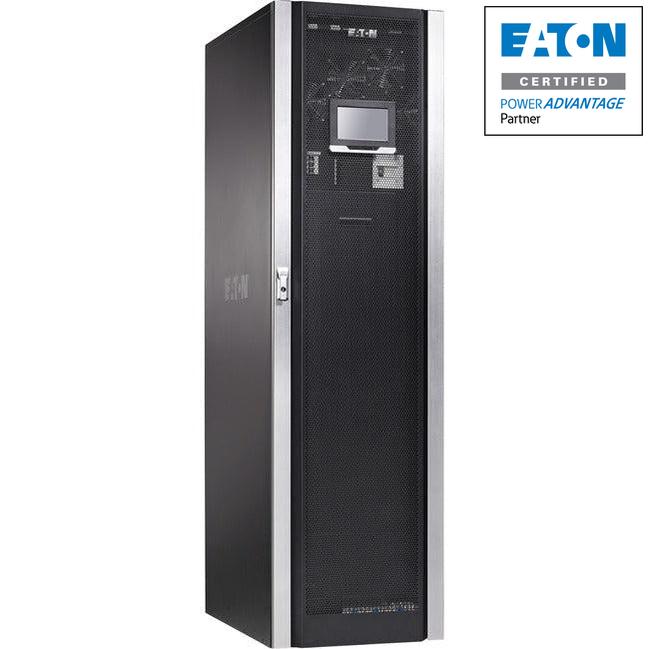

The Eaton 93PM UPS 100kW Tower 9PG05N0227J20R2 is perfect for enterprise data center operators and facility managers requiring high-capacity power protection with flexible tower configuration and essential bypass capabilities. Our 100kW UPS delivers:
-
Enterprise UPS reliability with double-conversion topology ensuring complete power protection
-
Tower configuration providing flexible installation options without rack space constraints
-
Essential bypass switch enabling maintenance and service without interrupting critical loads
-
Smart UPS monitoring with comprehensive management and diagnostic capabilities
Key Features
-
100kW power capacity supporting large server farms and critical infrastructure
-
Tower form factor eliminating rack space requirements for maximum flexibility
-
480V to 208V transformation providing optimal voltage for North American data centers
-
Essential bypass switch with 4 breaker configuration for enhanced serviceability
-
High efficiency design reducing operational costs and heat generation
-
Advanced battery management optimizing runtime and battery life
-
Network connectivity enabling remote monitoring and management
Technical Specifications
| Manufacturer |
Eaton |
| Model Number |
9PG05N0227J20R2 |
| Product Series |
93PM UPS System |
| Power Rating |
100kW / 100kVA |
| Input Voltage |
480V AC, 3-phase |
| Output Voltage |
208V AC, 3-phase + neutral |
| Form Factor |
Tower configuration for floor installation |
| Topology |
Double-conversion online with PWM rectifier |
| Efficiency |
Up to 95% in double-conversion mode |
| Bypass Configuration |
Essential bypass with 4 breaker design |
| Frequency |
50/60 Hz auto-sensing with tight regulation |
| Power Factor |
0.9 output power factor, near unity input |
| Compatible Systems |
Enterprise data centers, manufacturing facilities, healthcare systems |
Target Use Cases
-
Enterprise Data Centers: Large-scale server deployments requiring reliable power protection
-
Manufacturing Facilities: Industrial automation and control systems
-
Healthcare Systems: Critical medical equipment and patient monitoring systems
-
Financial Services: Trading floors and transaction processing centers
-
Telecommunications: Network operations centers and communication hubs
-
Government Facilities: Mission-critical operations requiring uninterrupted power
Features & Benefits
-
Tower Configuration: Floor-standing design eliminates rack space requirements
-
Essential Bypass: Four-breaker bypass system ensures serviceability without downtime
-
Voltage Transformation: 480V to 208V conversion optimizes power distribution
-
High Power Density: 100kW capacity in compact tower footprint
-
Advanced Protection: Complete isolation from power disturbances and outages
-
Scalable Solution: Multiple units can be paralleled for higher capacity
Power Protection Technologies
-
Double-Conversion Topology: Complete electrical isolation and power conditioning
-
PWM Rectifier Technology: Low harmonic distortion and improved efficiency
-
Automatic Voltage Regulation: Precise output voltage control regardless of input conditions
-
Frequency Regulation: Stable 60 Hz output independent of input frequency variations
-
Overload Protection: Automatic load management preventing equipment damage
-
Battery Management: Intelligent charging and monitoring for optimal battery performance
Management & Monitoring
-

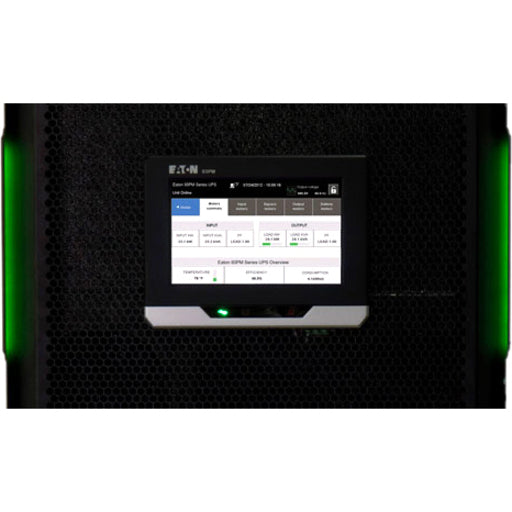

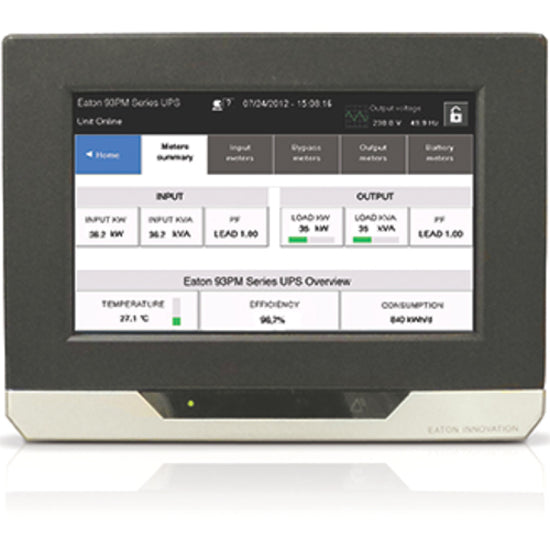

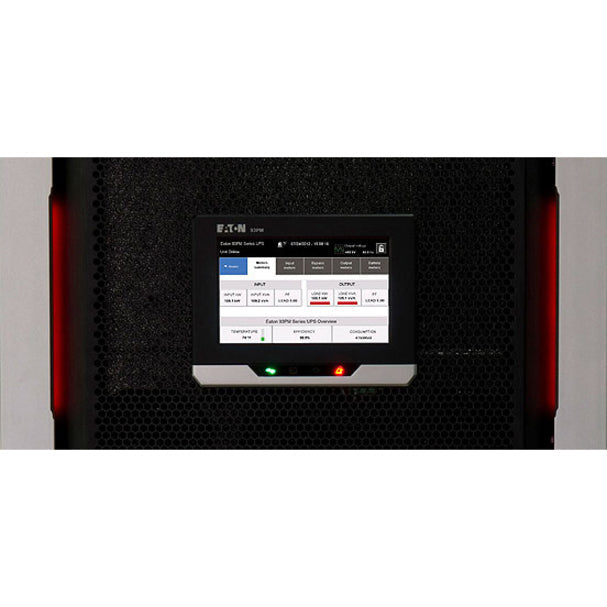

Intelligent Display: LCD interface showing real-time status and alerts
-
Network Connectivity: SNMP and web-based monitoring capabilities
-
Remote Management: Cloud-based monitoring and diagnostics
-
Predictive Analytics: Proactive maintenance alerts and battery replacement notifications
-
Energy Reporting: Comprehensive power consumption and efficiency tracking
-
Integration Support: Compatible with building management systems
Frequently Asked Questions
Q: What is the advantage of the tower configuration for the Eaton 93PM 100kW?
A: The tower UPS configuration provides maximum installation flexibility without consuming valuable rack space. This enterprise UPS can be positioned anywhere in the facility while providing the same protection as rack-mounted solutions, making it ideal for facilities where rack space is at a premium or where distributed power protection is required.
Q: How does the essential bypass feature benefit operations?
A: The essential bypass switch with 4 breaker configuration allows complete maintenance and service of the UPS without interrupting power to critical loads. This Eaton UPS feature ensures maximum uptime by enabling hot-swappable maintenance while maintaining power protection through the bypass circuit.
Q: Can this UPS handle the voltage transformation from 480V to 208V?
A: Yes, the 93PM UPS is specifically designed for 480V to 208V transformation, making it ideal for North American data centers that receive 480V utility power but need 208V for IT equipment. This integrated transformation eliminates the need for external transformers, reducing complexity and improving efficiency.
Q: What type of loads can this 100kW UPS support?
A: The 100kW UPS can support a wide range of critical loads including servers, storage systems, network equipment, and industrial control systems. With 0.9 output power factor, this smart UPS is optimized for modern IT equipment and can deliver its full 100kW capacity to typical data center loads.
Q: Is this UPS model still available for purchase?
A: This specific model has been discontinued by Eaton. However, the Eaton UPS portfolio includes newer 93PM series models and other enterprise-class solutions that provide similar or enhanced capabilities. We recommend consulting with an Eaton representative to identify the most suitable current replacement model for your specific application requirements.
Eaton 93PM UPS 100kW Tower 9PG05N0227J20R2 - enterprise power protection with bypass switch for data centers, discontinued model.
