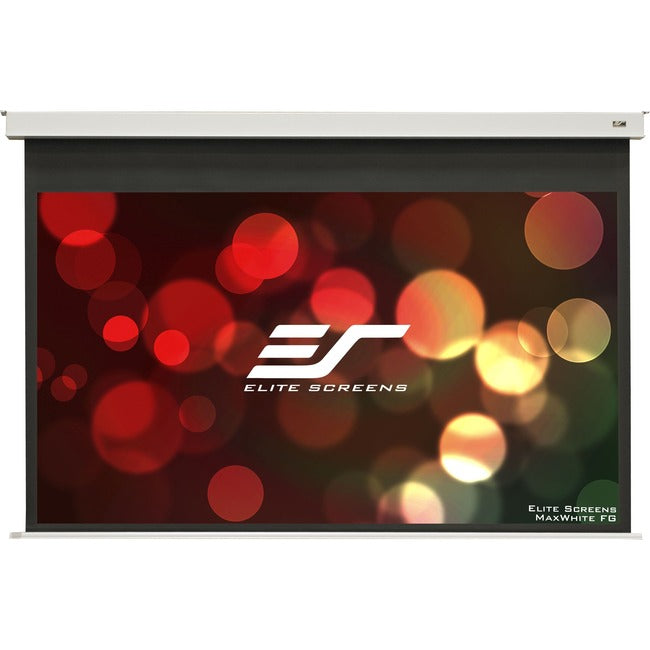

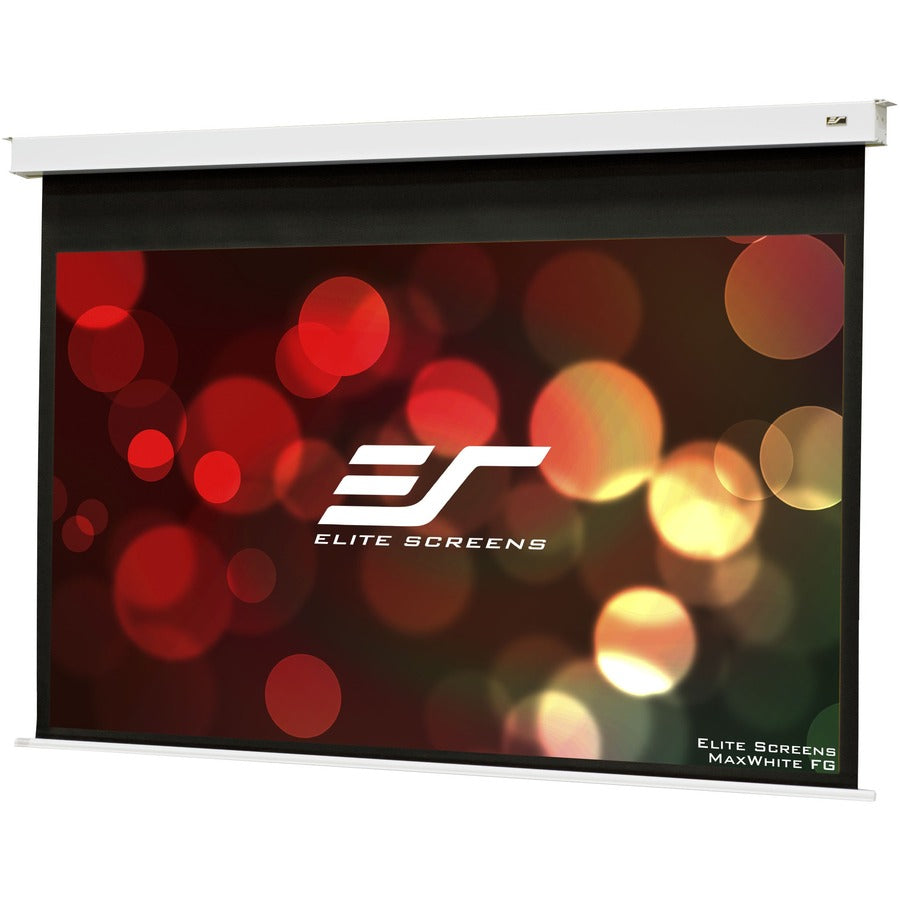

Elite Screens Evanesce B Series EB92HW2-E12

Elite Screens Evanesce B Series

The Evanesce B is a versatile in-ceiling projection screen that conveniently disappears from view when not in use. It can be installed from within the above-ceiling airspace or from below thanks to its removable base panels that were originally designed for the European market. Its GREENGUARD® certified MaxWhite® FG (fiberglass-backed) 1.1 gain matte white material provides superb color temperature with wide diffusion uniformity. The screen is moved by a strong, fast-acting tubular motor and comes with a full IR/RF wireless, 12-volt trigger and Ethernet control package.

Screen Material

• Greenguard® Certified MaxWhite® Fiberglass (FG) front projection material with black backing
• 1.1 Gain with a 180° wide-viewing angle for commercial and residential presentations
• Not compatible with Ultra/Short-throw Projectors
• Black masking borders enhance picture contrast
• 4K Ultra HD, Active 3D, and HDR Ready
• Available in the following diagonal sizes:
  • 100" and 120" in 4:3 format
  • 92" , 100" , 110" and 120" in 16:9 format

Design and Installation

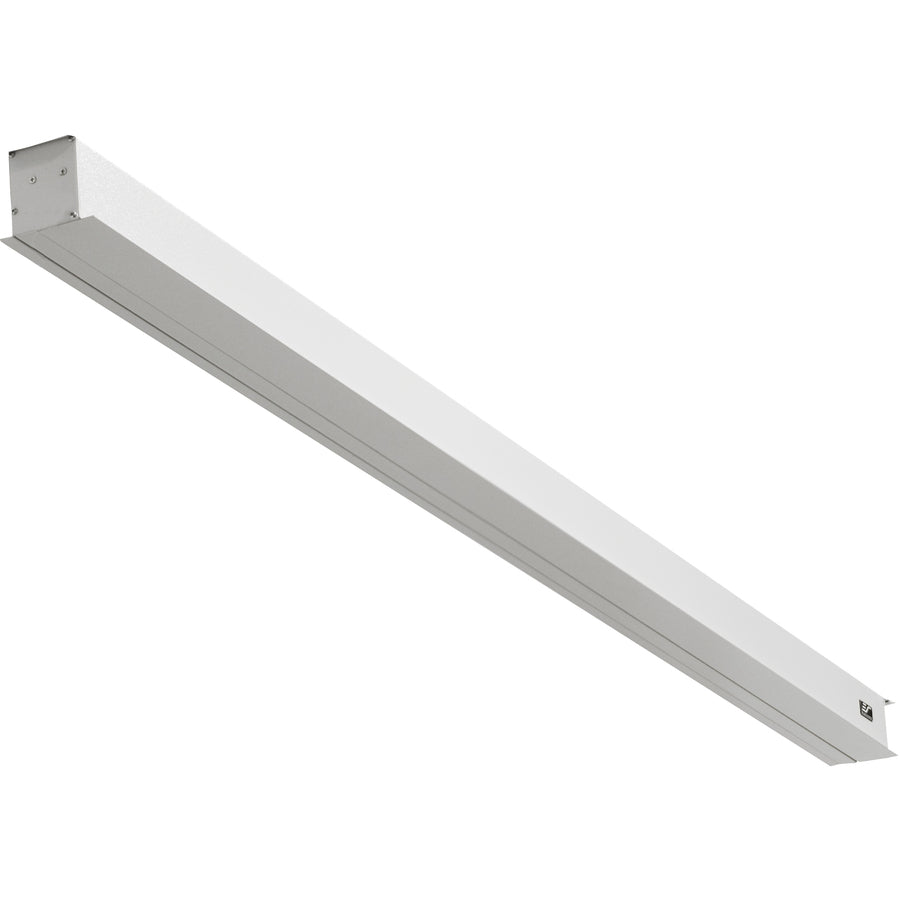

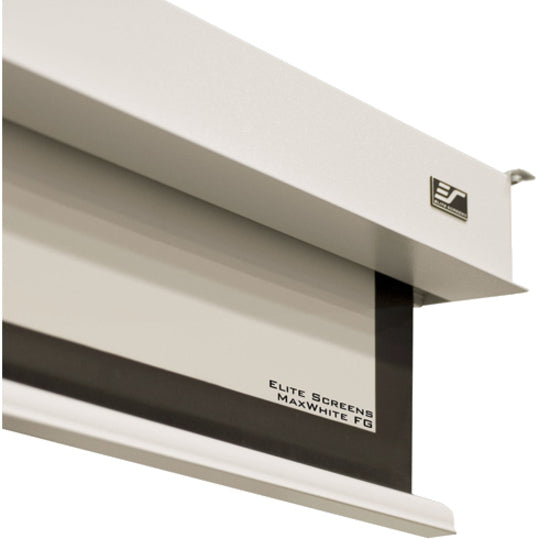

• Aluminum housing with white finish (RAL9003) is slim yet strong and moisture resistant
• Concealed in-ceiling recessed front projection screen for multi-use rooms
• Installation kit included for above or below ceiling

Control System

• Internal Radio Frequency/Infrared receivers with IR, RF remotes included
• Low voltage 3-way position wall switch
• Standard 5-12 volt trigger to synchronize screen operation with the projector's power cycle
• RJ45 port allows 3rd party control systems integration
• Optional in-wall up/down switch (part# ZIW-W) - sold separately
• Optional wirless 5-12v triggers - sold separately

Quality and Reliability

• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• Flame Retardant: Complies with NFPA 701 Standards
• GREENGUARD® and GREENGUARD® Gold Certified
• 2-Year / 3-Year ENR-G Manufacturer's Warranty by Elite Screens, an ISO9001 manufacturer since 2004
• Lifetime Tech Support by Elite's Professional Service Team through Email, Web Chat or Toll Free Phone Call

• 92-inch Diagonal, 45-inch H x 79.9-inch W Viewing Size, 16:9 HD Format Aspect Ratio with a 12-inch Black Masking Drop in a White Finish Case/Housing. Overall Product Dimension: 100.3-inch H x 90.2-inch W.


• Screen Material: MaxWhite FG, 1.1 Gain. Fiberglass-backed, 180 degree wide viewing angle, fully black backed front projection screen with textured surface. 4K Ultra HD and Active 3D Projection Ready. GreenGuard and GreenGuard GOLD Certified. Mildew resist


• Features a slim and sleek design. White finished moisture resistant aluminum casing. A long lasting and powerful tubular motor easily lends itself for in or below ceiling installations.


• Includes Full In-Ceiling Installation Kit, Infrared (IR) & Radio frequency (RF) Remotes, 3-Way Wall Switch, Integrated RJ45 Port and 5-12 volt trigger.


• 2-Year / 3-Year ENR-G, Manufactures Warranty by Elite Screens' an ISO9001 manufacturer since 2004 and Lifetime Tech Support by Email, Web-Chat or Toll-Free Phone Call by Elite's Professional Service Team.

Product Type: Projection Screen
Environmentally Friendly: Yes
Environmental Certification: GREENGUARD
Assembly Required: No
Brand Name: Elite Screens
Manufacturer: Elite Screens, Inc
Product Model: EB92HW2-E12
Product Name: Evanesce B EB92HW2-E12 Projection Screen
Mount Type: Ceiling Mount
Product Line: Evanesce B
Manufacturer Part Number: EB92HW2-E12
Manufacturer Website Address: http://www.elitescreens.com
Package Contents:
