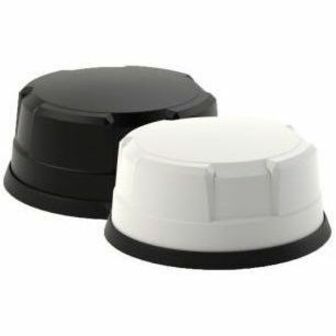

Panorama Antennas LG-IN2446 Antenna
The LG-IN2446 is a high performance 4x4 MiMo LTE, 4x4 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
- Low profile antenna with 9 functions in 1
- 4x4 MiMo 4G/5G LTE cellular, 4x4 MiMo Dual Band WiFi and GPS/GNSS in one housing
- Kits with extension cables available for a range of LTE routers
- Suitable for Cradlepoint COR IBR1700 Series Routers
The LG-IN2446 range has been designed to provide 4x4 4G/5G MiMo performance from 617-960/1710-6000MHz combined with GPS/GNSS and 4x4 MiMo WiFi 2.4/5.0GHz in a compact low profile housing.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna radome is available in black or white and meets IK10 for vandal resistance and IP69K for ingress protection.
The integrated GPS/GNSS module supports GPS, Glonass, Galileo, QZSS and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
LG-IN2446 is supplied as a complete plug and play kit with integrated 5m (16') ultra-low loss TPE extension cables and SMA (m) connectors for 4G/5G and GPS and Rev Pol SMA for WiFi.
- Designed to operate at 617 MHz to 960 MHz frequency
- Dramatically enhance the performance of wireless router with this antenna
- Receive signals from multiple directions with this omnidirectional antenna
- Antenna can be mounted as panel
Product Type: Antenna
Environmentally Friendly: Yes
Environmental Certification: REACH
Taa Compliant: Yes
Product Color: Black
Diameter: 7.09"
Brand Name: Panorama Antennas
Compatibility: Cradlepoint COR IBR1700 Series Routers
Form Factor: Panel
Manufacturer: Panorama Antennas Ltd
Product Model: LG-IN2446
Product Name: LG-IN2446 Antenna
Application/Usage: GLONASS
Manufacturer Part Number: LG-IN2446
Manufacturer Website Address: http://www.panorama-antennas.com
