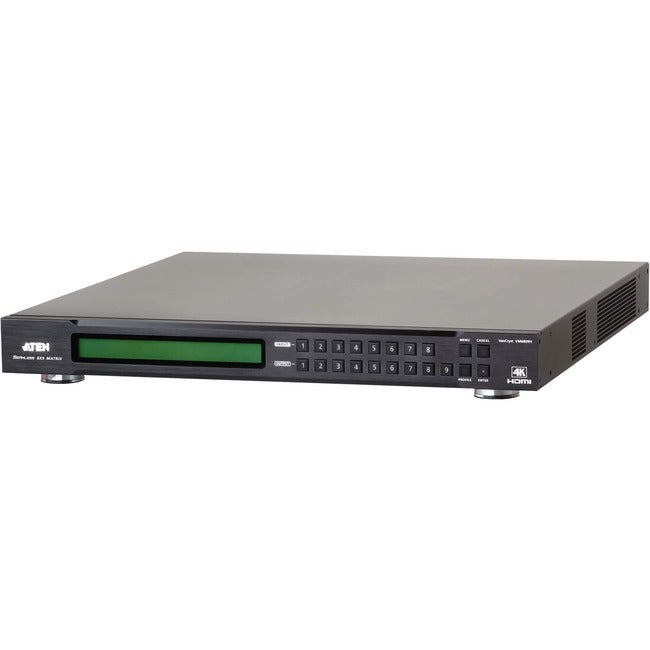

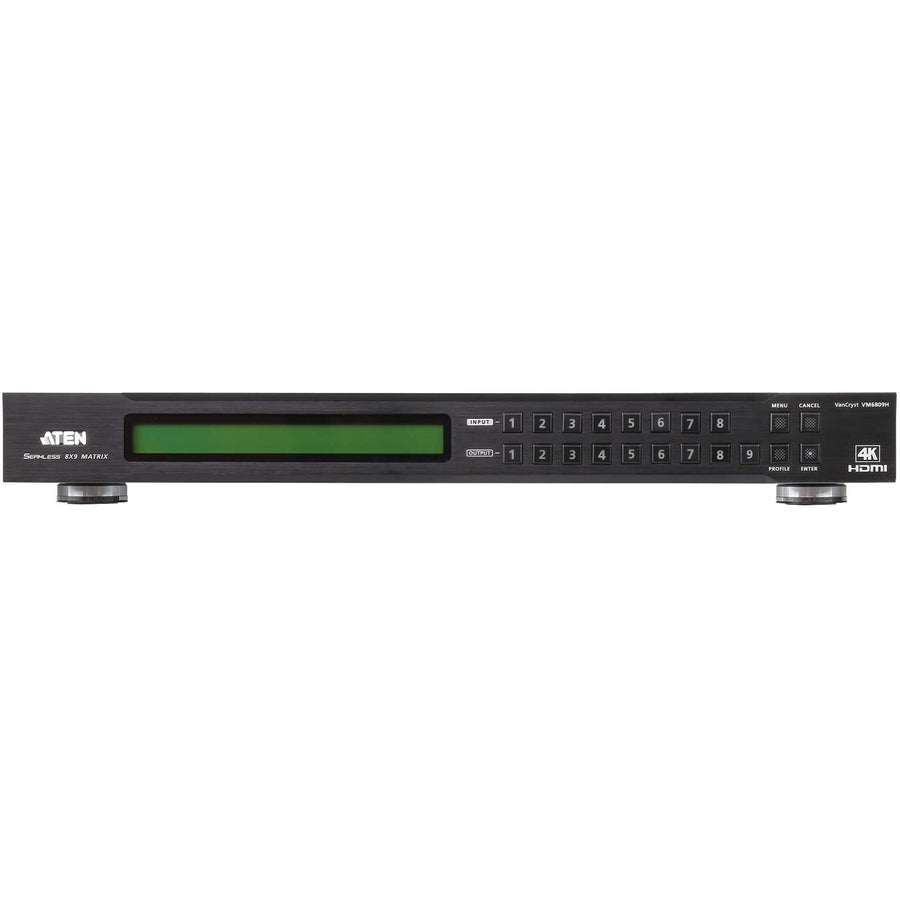

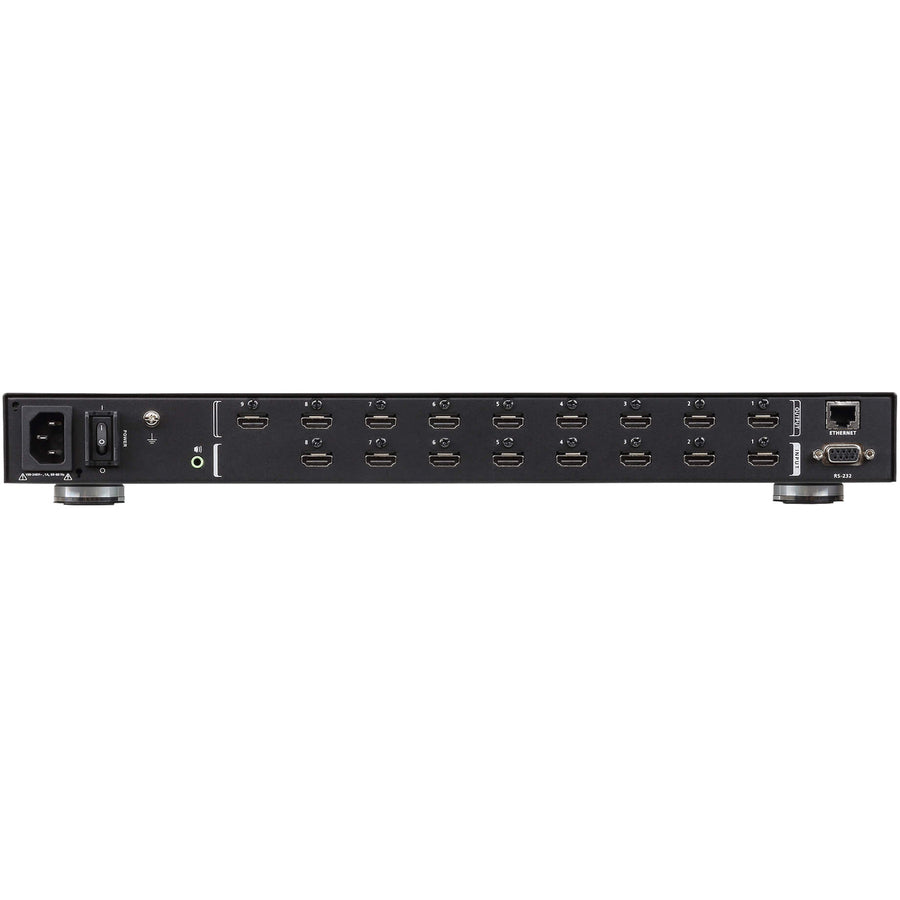

ATEN 8 x 9 4K HDMI Matrix Switch with Scaler-TAA Compliant
4K is the next generation of image quality for high definition video, which delivers eight million pixels that is four times as much detail as 1080p Full HD resolutions. ATEN's VM6809H 4K HDMI Matrix Switch with Scaler is compatible with the two latest 4K video resolution standards: 3840 x 2160 and 4096 x 2160. The VM6809H offers powerful HD processing to produce 4K resolutions across nine displays with crystal-clear images.
The VM6809H supports 4K @ 60 Hz, HDMI 2.0 and HDCP 2.2 and features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6809H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 17 connection profiles that can be customized into different video wall layouts.
The VM6809H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup - such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time synchronization.
More from the Manufacturer
- 8 x 9 HDMI input/output connections
- Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web GUI or Telnet
- 4K Scaler - features a 4K video scaling function to convert input resolutions to the display's native resolutions
- Seamless Switch™ -features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
- Video Wall -allows you to create custom video wall layouts via intuitive web GUI
- EDID Expert -selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- FrameSync - prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- HDMI (3D, Deep color, 4K); HDCP 2.2 compatible
- Audio-enabled, HDMI audio can be extracted to stereo audio
- ESD protection for HDMI
Product Type: Audio/Video Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: Taiwan
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology Inc
Product Model: VM6809H
Product Name: 8 x 9 4K HDMI Matrix Switch with Scaler
Product Line: VanCryst
Manufacturer Part Number: VM6809H
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:
- 8 x 9 4K HDMI Matrix Switch with Scaler
- 1 x Power Cord
- 1 x Rack Mounting Kit
- 1 x User Instructions
Limited Warranty: 3 Year
Weight (Approximate): 15.54 lb
