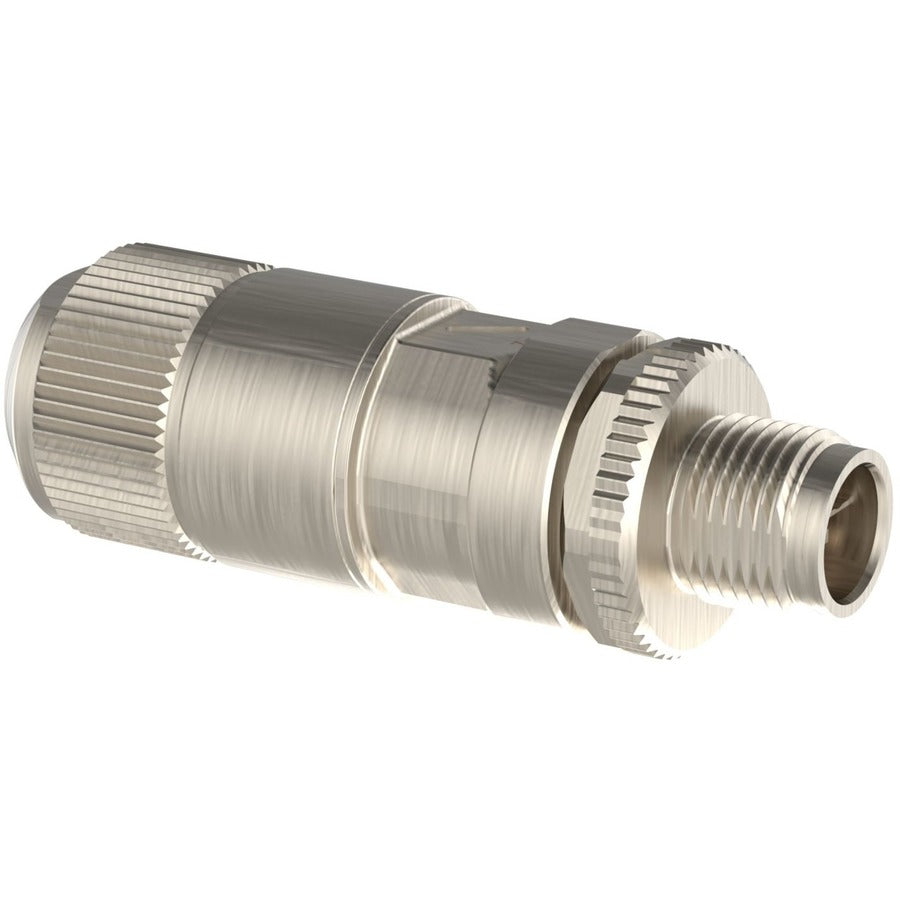

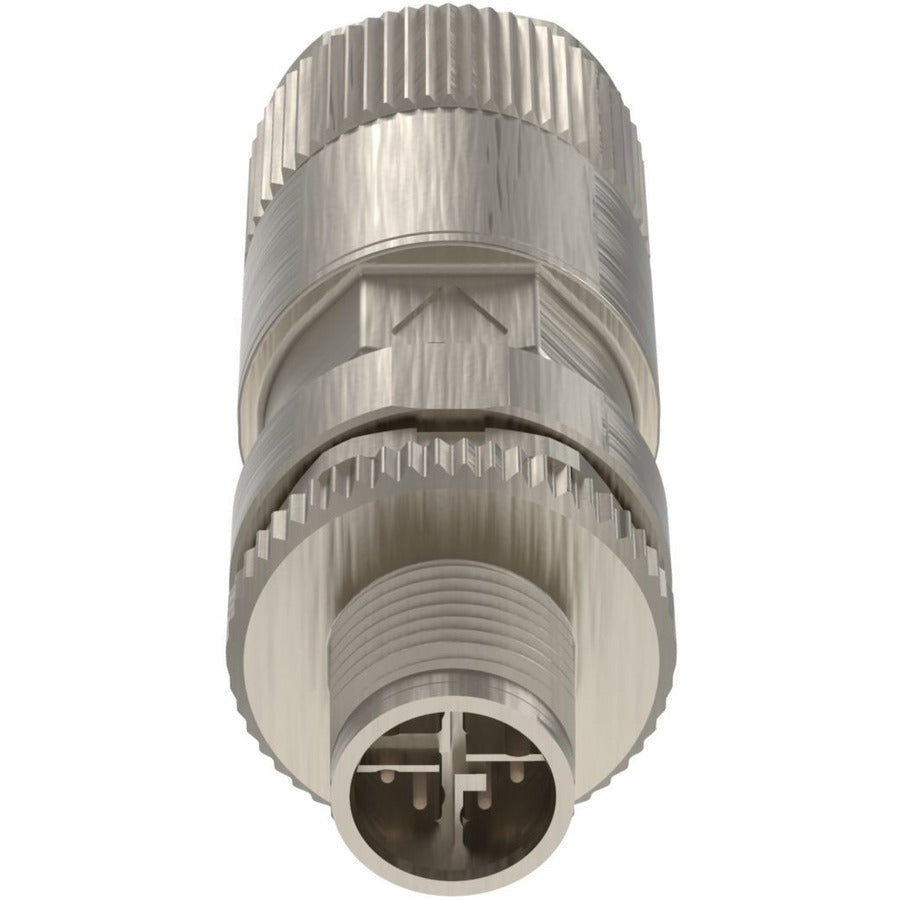

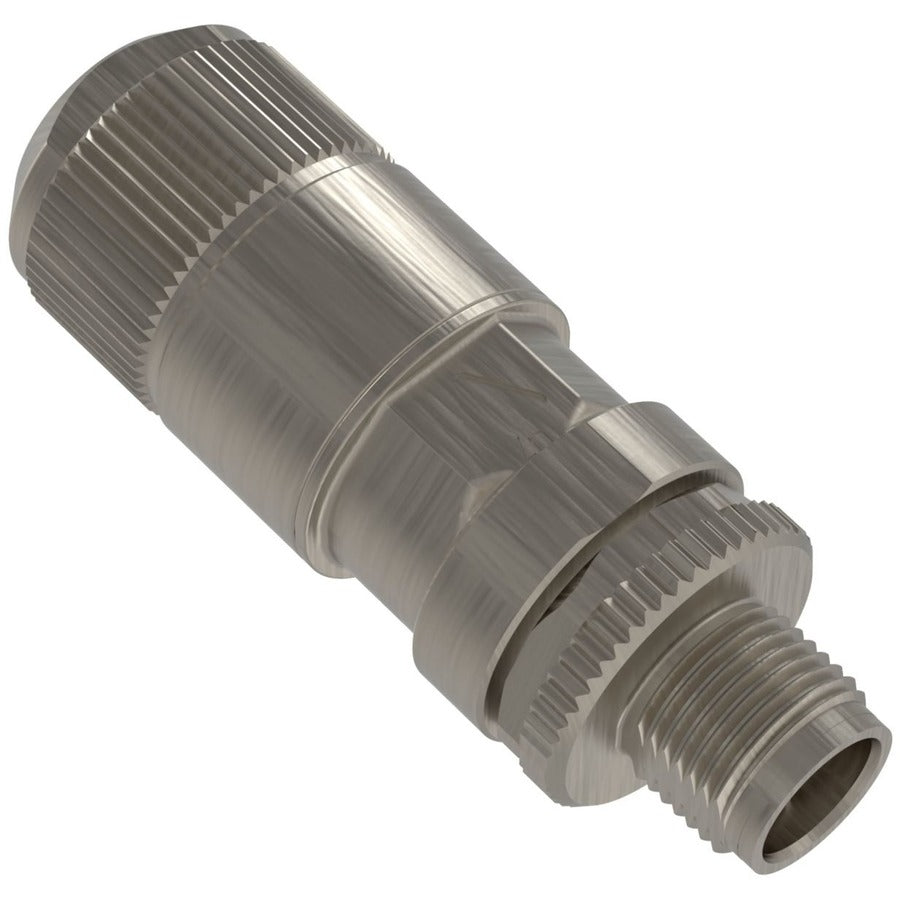

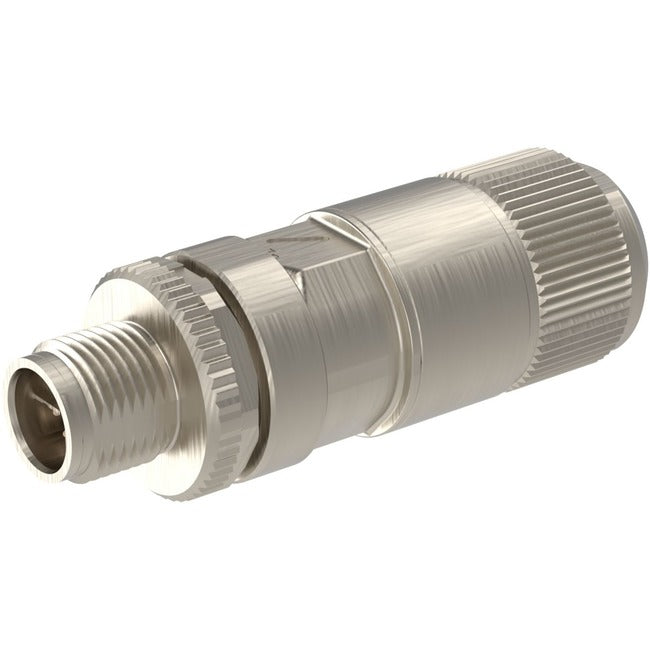

Panduit IndustrialNet M12 X-Code Field Terminable Plug
The M12 X-Code modular plug is field terminable for use with industrial grade, 26/7 - 22/7 AWG stranded, Cat 6A, UTP or shielded copper cable. This plug is constructed of a zinc cast housing with a 360° shield. The plug has an ingress protection rating of IP65/IP67 and offers an extended temperature range as required for more demanding applications. It is easily attachable without any special tools and is capable of termination to a 2-pair stranded or solid twisted-pair copper cable.
- Zinc die cast housing with 360° shielding : Ensures secure data transmission in high noise (EMI/RFI) environments for optimal performance
- Field attachable : Can be terminated in seconds without any special tools and is re-terminable up to 10 times with the same gauge cable
- IP/NEMA/UL rated connection : Withstands light wash down and temporary submerged conditions without loss of performance for reliability in harsh factory environments
- Extended temperature range : Provides durable connection in extreme conditions for increased system reliability
Product Type: Network Connector
Environmentally Friendly: Yes
Environmental Certification: RoHS
Contact Material: Brass
Product Color: Metallic
Product Material: Nickel Chrome Plated
Country Of Origin: Taiwan
Brand Name: Panduit
Manufacturer: PANDUIT CORP
Product Name: IndustrialNet M12 X-Code Field Terminable Plug
Product Line: IndustrialNet
Manufacturer Part Number: ISPS6A88MFA
Manufacturer Website Address: http://www.panduit.com
Packaged Quantity: 1
Limited Warranty: 5 Year
