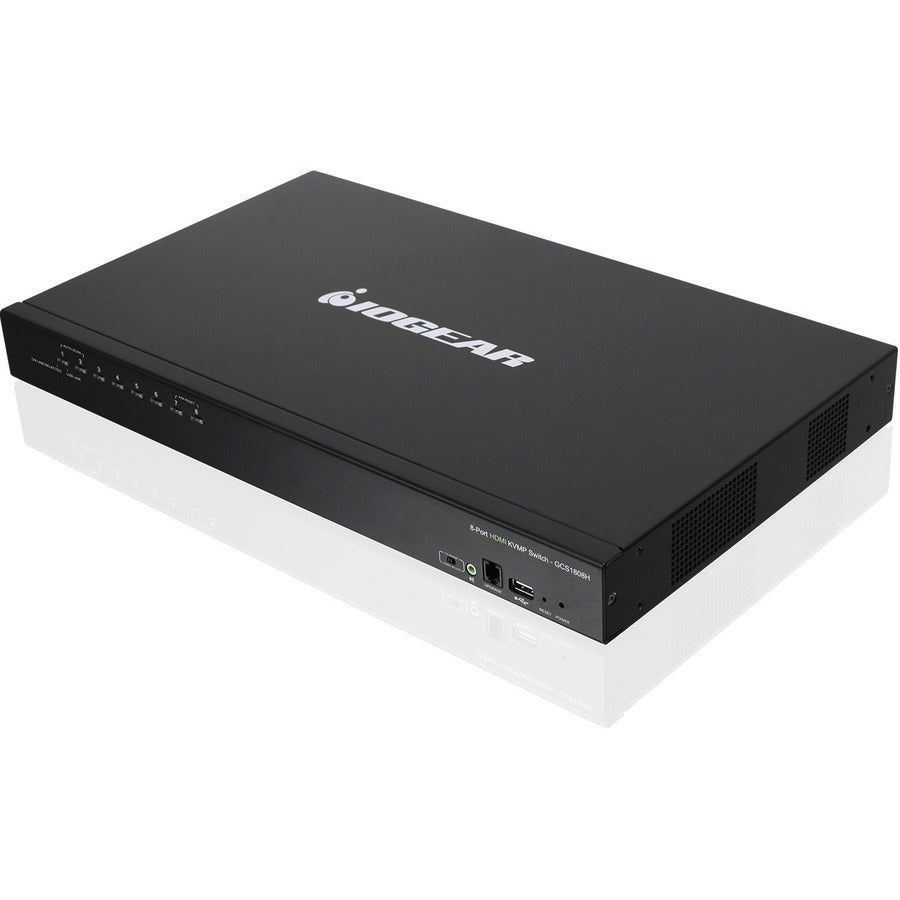

IOGEAR 8-Port USB HDMI KVM Switch with Audio (TAA Compliant)
8-Port HDMI KVMP Switch
IOGEAR's 8-port USB HDMI KVMP Switch allows you to control and access up to 8 computers from a single USB keyboard, USB mouse, and an HDMI monitor console. Experience high definition video resolution to 1080p (1920 x 1200) while sharing USB 2.0 peripherals and listening to 2.1 stereo surround sound.
Expanded Connectivity
IOGEAR's 8-Port USB HDMI KVMP Switch is designed to control up to 512 computers by cascading three levels of the GCS1808H. The built-in USB 2.0 hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can easily broadcast messages, announcements, firmware updates, or notifications to all connected sources.
EDID Support
IOGEAR's Video DynaSync™ technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between, or booting computers.
Simple Switching Methods
Easily switch between connected computers by either manually pressing the front panel push-buttons, entering hotkey combinations from the keyboard, or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices.
2.1 Surround Sound
This 8-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers.
Multi-Display Setup
Enhance productivity and view all connected sources on up to eight displays by stacking eight (8) IOGEAR GCS1808H together.
More from the Manufacturer
- Controls up to 8 HDMI® sources while sharing 2 additional USB 2.0 devices
- Supports up to 1080p (1920 x 1200) HD video resolution
- Cascade up to 3 levels1 - Control up to 512 computers from a single console
- Features 2 built-in USB 2.0 ports 2 for USB peripheral sharing
- Multi-display feature allows viewing of up to 8 monitors when stacking up to (8) GCS1808H together
- Independent KVM and USB focus switching
- Password protection security for On-Screen Display (OSD)
- OSD Backup/Restore configuration and user profile information
- Broadcast Mode sends commands to all connected computers
- Auto Scan Mode monitors connected computers
Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: Taiwan
Rack Height: 1U
Brand Name: IOGEAR
Form Factor: Rack-mountable
Manufacturer: IOGEAR, Inc
Product Model: GCS1808H
Product Name: 8-Port USB HDMI KVM Switch with Audio (TAA Compliant)
Manufacturer Part Number: GCS1808H
Manufacturer Website Address: http://www.iogear.com
Packaged Quantity: 1

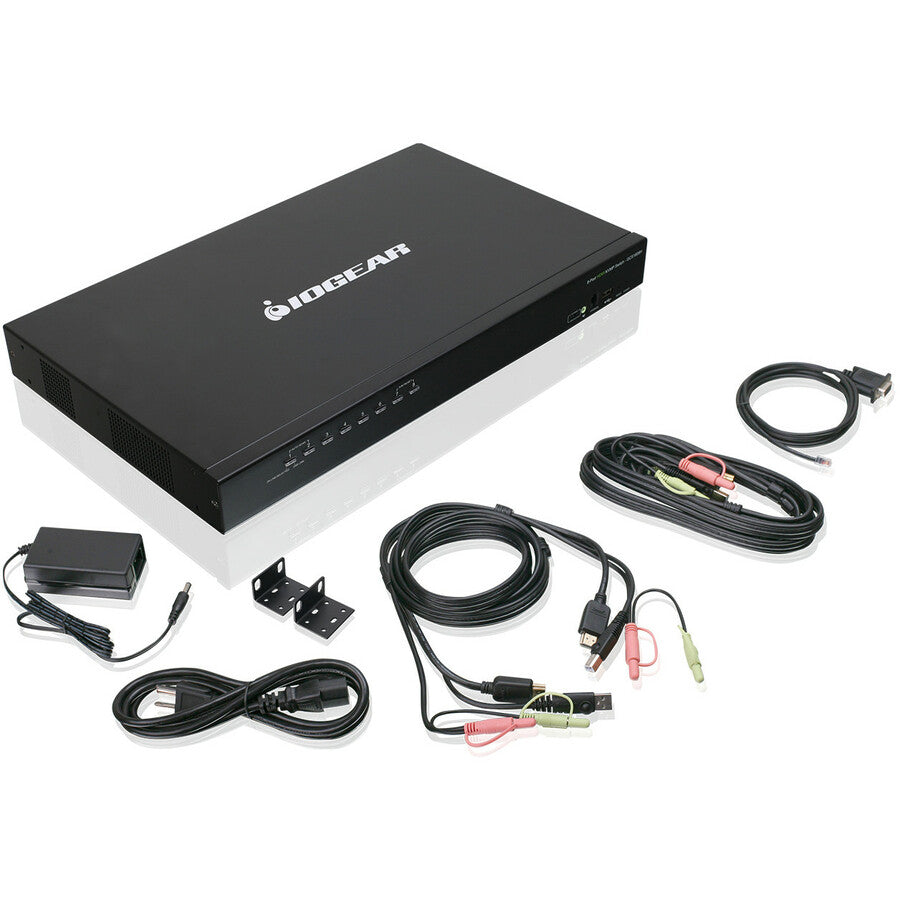

Package Contents:
- 8-Port USB HDMI KVM Switch with Audio (TAA Compliant)
- 2 x Custom USB HDMI KVM Cable Sets
- 1 x Firmware Upgrade Cable
- 1 x Power Adapter
- 1 x Foot Pad Set (4 pcs)
- 1 x Quick Start Guide
- 1 x Rack Mounting Kit
Limited Warranty: 3 Year
Weight (Approximate): 7.75 lb
