Black Box ServView V with 8-Port KVM Switch, VGA, USB, PS/2

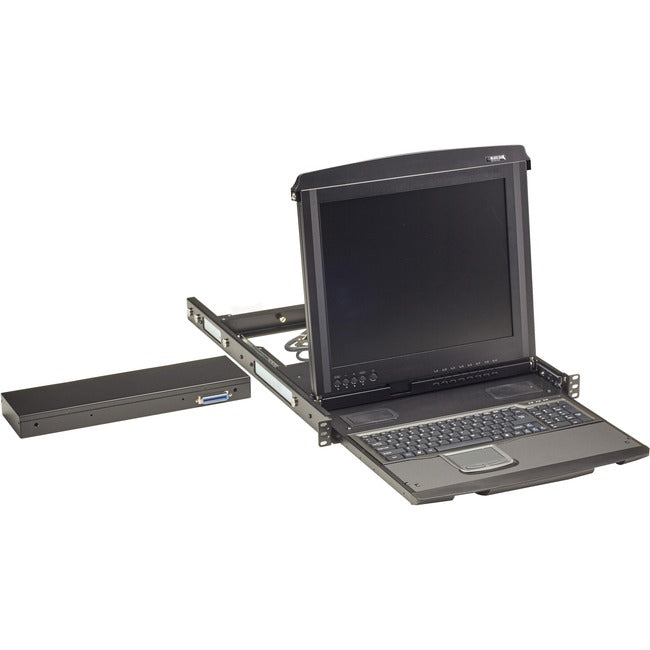

The ServView V with 8-Port, VGA, USB, PS/2 offers server management in a space-saving, streamlined package. The tray includes a keyboard touchpad, a 17" TFT LCD panel, and an 8-port KVM switching module housed in an industry-standard 19" 1U rack drawer, saving you valuable cabinet space.

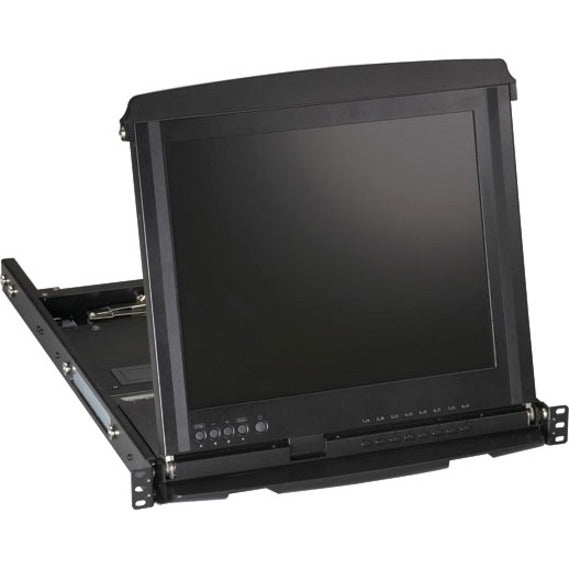

The dual-rail design enables the keyboard and LCD display to slide in and out of the rack independently of each other. Store the keyboard out of the way while keeping the display open so you can easily monitor your servers. Check system status even with the cabinet door closed.
Control made easy
Save space by using the switching controls on the monitor bezel to control the switching module without pulling open the keyboard drawer. The top of the drawer has an LED lighting bar to make the closed drawer easy to find in a dark rack.
You can install a USB RF or Bluetooth® adapter in the hideaway at the top of the keyboard/mouse tray to access the ServView V and servers with your own wireless keyboard.
Easy in-and-out
The sturdy, slim drawer helps reduce server room clutter. Pull it out and latch it securely in place to use. Or fold your display into the drawer, slide it into the rack, and lock it in place. The ServView V also includes a scratch-resistant surface and a slip-free handle. Installation is easy, too.
Easy to see
The standard ServView V features a sharp LCD screen with up to 1280 x 1024 resolution. On-screen menus provide quick access to adjust brightness, contrast, screen resolution and refresh rates. At a 45-degree angle, the LCD monitor automatically shuts down, so you don't have to worry about leaving it on when you put it away.
Additionally, Sun® native resolutions are supported for multi-platform functionality. Support for VESA DDC 1/2B enables the monitor to automatically adjust to its optimum performance when connected to a server that supports DDC.
Easy to use
The drawer console features a full 105-key, low-profile keyboard. It also supports Sun and Mac® keyboard mapping. The touchpad has simulated wheel control and is dust- and waterproof. Both the keyboard and the touchpad are replaceable.
- Front-panel on-screen display (OSD) control and LED indicator enable adjustment of display image
- Hideaway USB port for USB HID-supported wireless keyboards and mice
- Flip-open 17" TFT LCD panel supports resolutions up to 1280x1024
- Front-panel USB 2.0 port remains accessible to peripherals even with tray closed
- Dual-rail console drawer features keyboard, touch pad, and LCD monitor in 1U of space
- KVM switch function module connects to VGA, and either PS/2 or USB servers
Product Type: LCD Rack Console
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Model: KVT517A
Product Name: ServView V with 8-Port KVM Switch, VGA, USB, PS/2
Product Line: ServView
Manufacturer Part Number: KVT517A-8UV
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- ServView V with 8-Port KVM Switch, VGA, USB, PS/2
- KVM switch module
- Power supply
- Power cord
- Universal rear rail kit: (2) brackets, (2) extenders, (8) screws
- User's manual
Limited Warranty: 1 Year
