IOGEAR 8-Port USB PS/2 Combo VGA DisplayPort KVM Kit
Connect & Access up to 8 VGA or DisplayPort Computers
IOGEAR's 8-Port USB PS/2 Combo VGA KVM Kit (GCS1808DPKITU) includes a combo 8-port KVM USB and PS/2 switch that allows you to control and access up to eight (8) USB or PS/2 computers from a single keyboard, mouse and VGA monitor console. The Kit includes a complete set of USB KVM cables and DisplayPort to VGA adapters(support DP ver 1.1a) to ease your installation process.
Support video resolution up to 2048x1536 under VGA connection and 1920x1200 under DispalyPort connection.
Connect & Control More
Expand the number of computers you can connect to and control through a single set of peripherals. Cascade and control as many as eight (8) additional IOGEAR 8-Port USB PS/2 Combo VGA KVMP Switch (GCS1808) switches for a total of 64 connected computers, all controlled from a single keyboard-monitor-mouse console. Need to control more computers? Cascade the IOGEAR 16-Port USB PS/2 Combo KVM Switch (GCS1716) to control up to 128 VGA and DisplayPort computers.
Expanded Peripheral Sharing

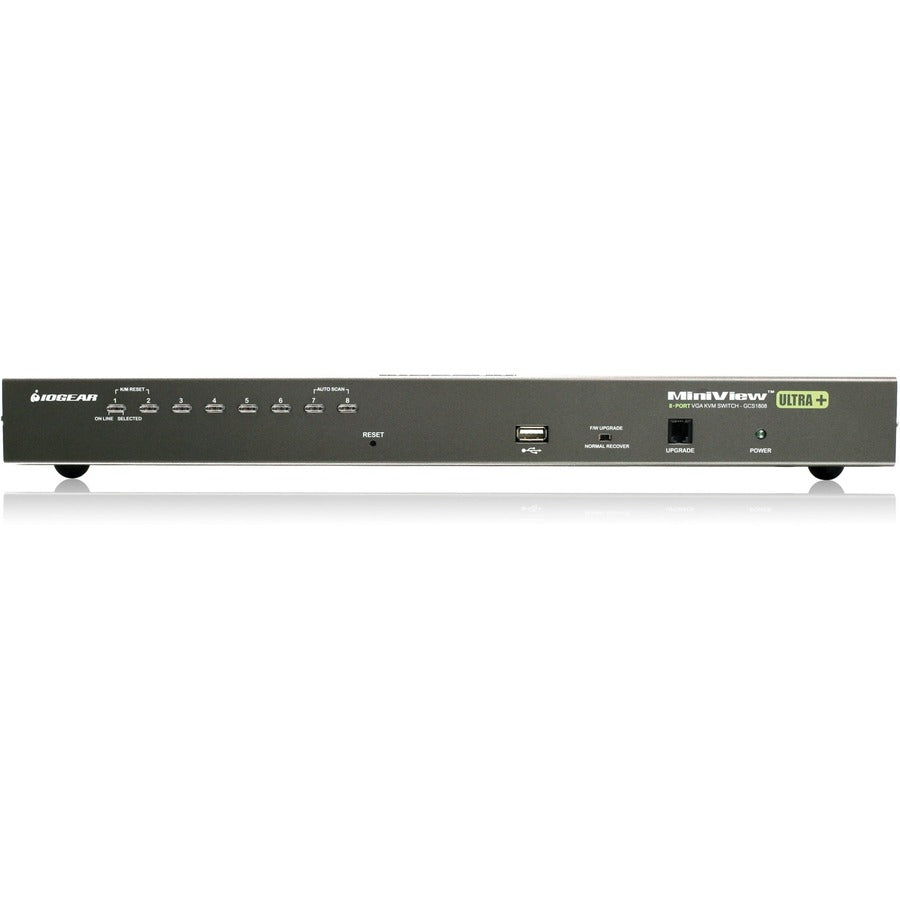

The KVM switch includes a single USB port located on the front panel for quick system access for upgrades and shared peripherals. Setup is fast and easy; plug the cables into their appropriate ports and you're ready to work. The switch supports both USB and PS/2 connections for both the console and computers. The switch intercepts the keyboard input directly, eliminating the need for software configuration.
Convenient Switching Methods
Switching between computers is quickly accomplished by pressing the front panel pushbutton, entering hotkey combinations from the keyboard, or via a menu driven, multilingual On-Screen Display (OSD) system. The switch also includes a convenient auto-scan feature which permits automatic scanning and monitoring of activities on all connected computers.
More from the Manufacturer
- Connect & control up to 8 USB or PS/2 computers from 1 keyboard, mouse & VGA monitor
- Kit includes adapters & cables needed to connect up to 8 computers
- Eliminates the expense of additional monitors, keyboards & mice
- Cascade up to 2 levels to control up to 128 computers from a single console
- Easy to operate - computer selection via front panel LEDs, intuitive on-screen display & hotkeys
Product Type: KVM Kit
Product Material: Metal
Country Of Origin: Taiwan
Brand Name: IOGEAR
Manufacturer: IOGEAR, Inc
Product Name: 8-Port USB PS/2 Combo VGA DisplayPort KVM Kit
Dimensions:
- 10.5" Height x 22.38" Width x 9.25" Depth
Manufacturer Part Number: GCS1808DPKITU
Manufacturer Website Address: http://www.iogear.com

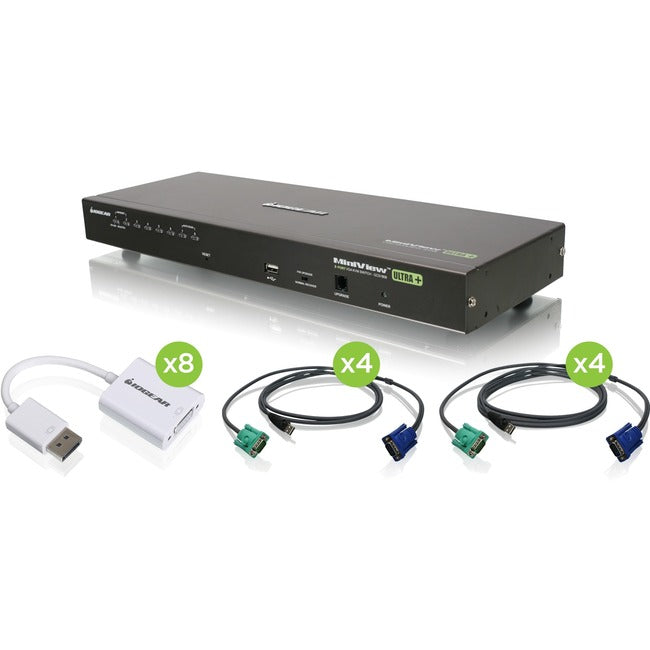

Package Contents:
- 1 x 8-Port USB PS/2 Copmbo VGA KVMP Switch(TAA Compliant) (GCS1808)

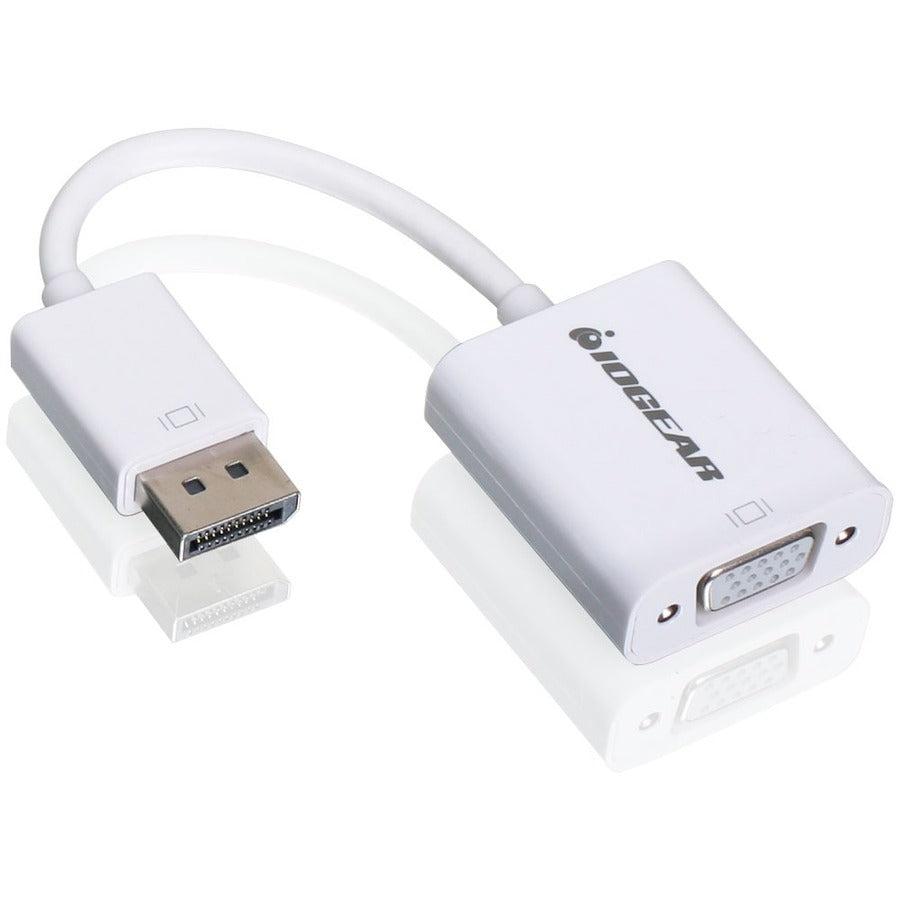

- 8 x DisplayPort to VGA Adapters(GDPVGAW6)
- 4 x USB KVM Cable(6ft - G2L5202U)
- 4 x USB KVM Cable(10ft - G2L5203U)
- 1 x PS/2 KVM Cable (6ft - G2L5202P)
- 1 x Console Cable
- 1 x Cascade Cable
- 1 x Firmware Upgrade Cable
- 1 x Grounding Wire
- 1 x Foot Pad Set (4 Pads)
- 1 x Power Adapter
- 1 x Standard Rack Mounting Kit
- 1 x Installation Guide
- 1 x Warranty Card
Limited Warranty: 3 Year
