TRENDnet 8-Port Gigabit PoE+ Switch, 65W PoE Power Budget, 16Gbps Switching Capacity, IEEE 802.1p QoS, DSCP Pass-Through Support, Fanless, Wall Mountable, Lifetime Protection, Black, TPE-TG83

TRENDnet 8-Port Gigabit PoE+ Switch, 65W PoE Power Budget, 16Gbps Switching Capacity, IEEE 802.1p QoS, DSCP Pass-Through Support, Fanless, Wall Mountable, Lifetime Protection, Black, TPE-TG83

• DEVICE INTERFACE: 8 x Gigabit PoE+ ports; LED indicators
• POE+ POWER BUDGET & SWITCH CAPACITY: 65 W PoE power budget supports up to eight power over Ethernet devices and the 8-port gigabit PoE+ network switch provides 16Gbps switching capacity to support edge network installations
• COMPACT FANLESS DESIGN: With a compact and lightweight rugged metal housing design, this desktop switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation
• DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit: 2000 Mbps (full duplex)
• OPERATING TEMPERATURE: This 8-port gigabit PoE+ network switch is rated with an operating temperature range of OPERATING TEMPERATURE: This 8-port gigabit PoE+ network switch is rated with an operating temperature range of 0° - 40° C (32° - 104° F)
• IEEE and DSCP: IEEE 802.1p QoS and DSCP pass-through support

TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG83, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 65W. The TPE-TG83 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.

PoE+

A 65W PoE power budget supports up to eight Power over Ethernet devices.

Gigabit Ports

Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.

Compact Design

Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments.

FEATURES | PoE+
Supplies up to 30 watts of PoE power per port with a 65W power budget

Gigabit Ports
8 x Gigabit PoE+ Ethernet ports

Compact Design
With a compact and lightweight metal housing design, this switch is wellsuited for desktop installations

Switching Capacity
16Gbps switching capacity

Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance

Fanless
Fanless design is ideal for quiet environments that require silent operation

LED Indicators
LED indicators convey port status

More from the Manufacturer

• Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily


• Gigabit Ethernet port for ultra-fast network speeds


• Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree

Product Type: Ethernet Switch
Product Material: Metal
Country Of Origin: Taiwan
Brand Name: TRENDnet
Form Factor: Compact
Manufacturer: TRENDnet
Product Model: TPE-TG83
Product Name: 8-Port Gigabit PoE+ Switch
Manufacturer Part Number: TPE-TG83
Manufacturer Website Address: http://www.trendnet.com

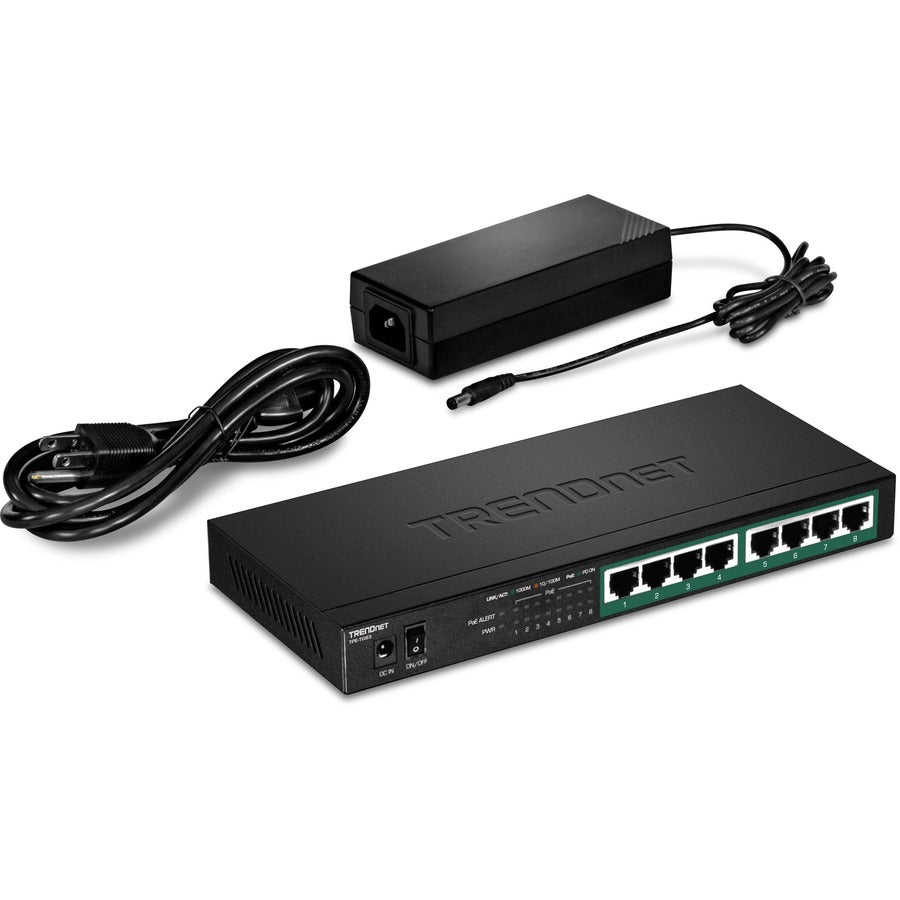

Package Contents:

• 8-Port Gigabit PoE+ Switch
• Quick Installation Guide
• Power Adapter (55v dc, 1.3a)
