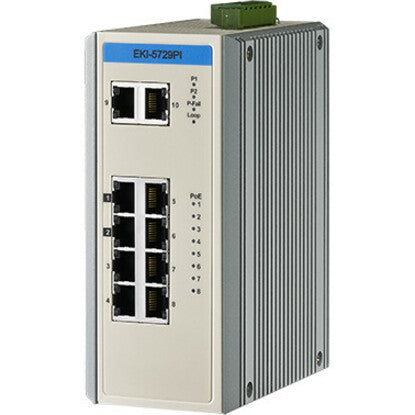

Advantech 8GE PoE+2G Unmanaged Ethernet Switch, IEEE802.3af/at, E-Mark, 12V~24VDC, -40~75?
The EKI-5729P and EKI-5729PI switches support Power-over-Ethernet on ports 1 to 8. The switch is classified as power source equipment (PSE). Also it is the world's first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. The switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance. The switches are compliant E-mark for in-vehicle application and surveillance system.
- Full Gigabit Ethernet ports and comply with IEEE
- 802.3af/at PoE standard
- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- -40 to 65°C operating temperature range (EKI-5729PI)
- EMS level 3 protection for extreme outdoor environments
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Provides 5/6 Fast Ethernet ports with 8 PoE ports
- Jumbo Frame Support (Up to 9,216 Bytes)
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Advantech
Form Factor: DIN Rail Mountable
Manufacturer: Advantech Co., Ltd
Product Model: EKI-5729
Product Name: 8GE PoE+2G Unmanaged Ethernet Switch, IEEE802.3af/at, E-Mark, 12V~24VDC, -40~75?
Manufacturer Part Number: EKI-5729PI-AE
Manufacturer Website Address: http://www.advantech.com
Packaged Quantity: 1
Limited Warranty: 5 Year
Weight (Approximate): 1.54 lb
