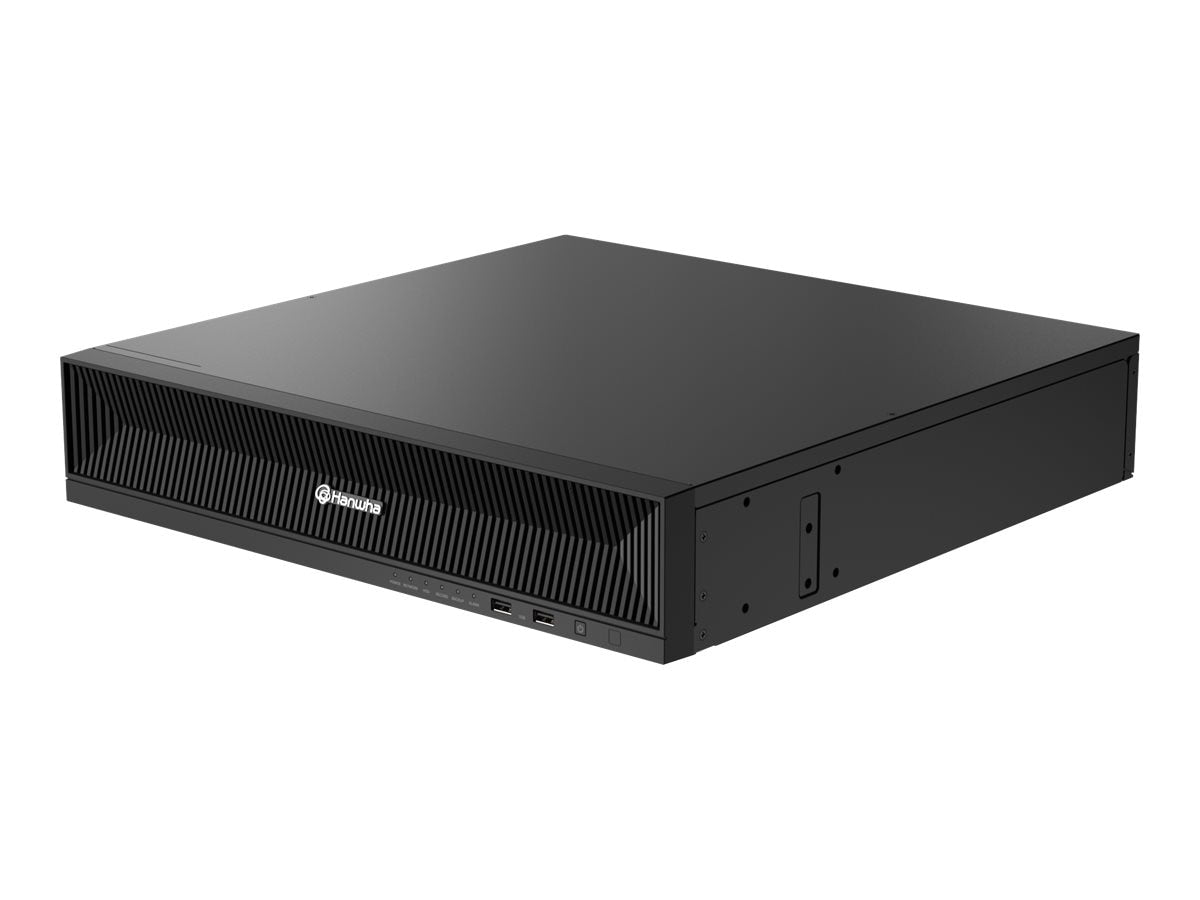

The HANWHA VISION 8K NVR (Intel-based) is a robust, scalable recording solution designed for professional surveillance environments. It delivers ultra-high-definition storage and intelligent management across a 32-channel setup, making it ideal for businesses that require reliable security and easy growth.
-
Channels: Supports up to 32 camera feeds for comprehensive, simultaneous monitoring.
-
Storage: 8 SATA HDD bays (up to 10TB each) with a total capacity up to 80TB; HDDs not included (drives sold separately).
-
Max Resolution: Enables up to 32MP recording for detailed evidence and clearer detail in playback.
-
Recording Bandwidth: Up to 520 Mbps for smooth, uninterrupted recording across multiple streams.
-
Playback Bandwidth: Up to 200 Mbps to support fast, responsive review during investigations.
-
Video Codecs: Supports H.265, H.264, and MJPEG for flexible storage efficiency and compatibility.
-
Display: Dual HDMI outputs for simultaneous multi-display viewing or client wall installations.
-
Advanced Features: ARB & Failover (N+1) for high availability; AI Search for Wisenet AI cameras; Fisheye Dewarping for 360° cameras.
-
Connectivity: iSCSI support, Alarm I/O, 2-way audio, and P2P QR code for quick, hands-off setup.
This NVR enhances surveillance efficiency by delivering high-resolution 32MP recording with reliable backup and flexible storage expansion. Its intelligent features—AI Search for rapid incident retrieval, ARB Failover to minimize downtime, and Fisheye Dewarping to maximize coverage—make it a robust foundation for critical security environments. The dual HDMI outputs enable versatile display configurations, while the wide codec support helps balance video quality with storage costs. HDDs are optional, allowing you to tailor the system to your budget and storage needs.
Specifications
-
Model: XRN-3220B2
-
Channels: 32
-
HDD Bays: 8 SATA (up to 10TB each)
-
Max Resolution: 32MP
-
Recording Bandwidth: 520 Mbps
-
Playback Bandwidth: 200 Mbps
-
Video Codecs: H.265, H.264, MJPEG
-
Display: Dual HDMI
-
Features: ARB, Failover (N+1), AI Search, Fisheye Dewarping
-
Connectivity: iSCSI, Alarm I/O, 2-way audio, P2P QR code
-
HDD Inclusion: HDDs not included (purchased separately)
FAQ
-
Does the NVR come with hard drives included? No, hard drives must be purchased separately.
-
What is the maximum supported HDD capacity? Up to 10TB per SATA bay, for a total potential of 80TB across all bays.
-
Can this NVR handle AI-based camera analytics? Yes, it supports AI Search with compatible Wisenet AI cameras.
-
Is dual display supported? Yes, via two HDMI outputs for multiple viewing setups.
-
What video compression standards are supported? H.265, H.264, and MJPEG for flexible storage and compatibility.
