Audio Extraction through Optical and Analog 3.5MM outputs
Features Automatic switching along with the front panel buttons and the included remote.
Compatible with most media devices

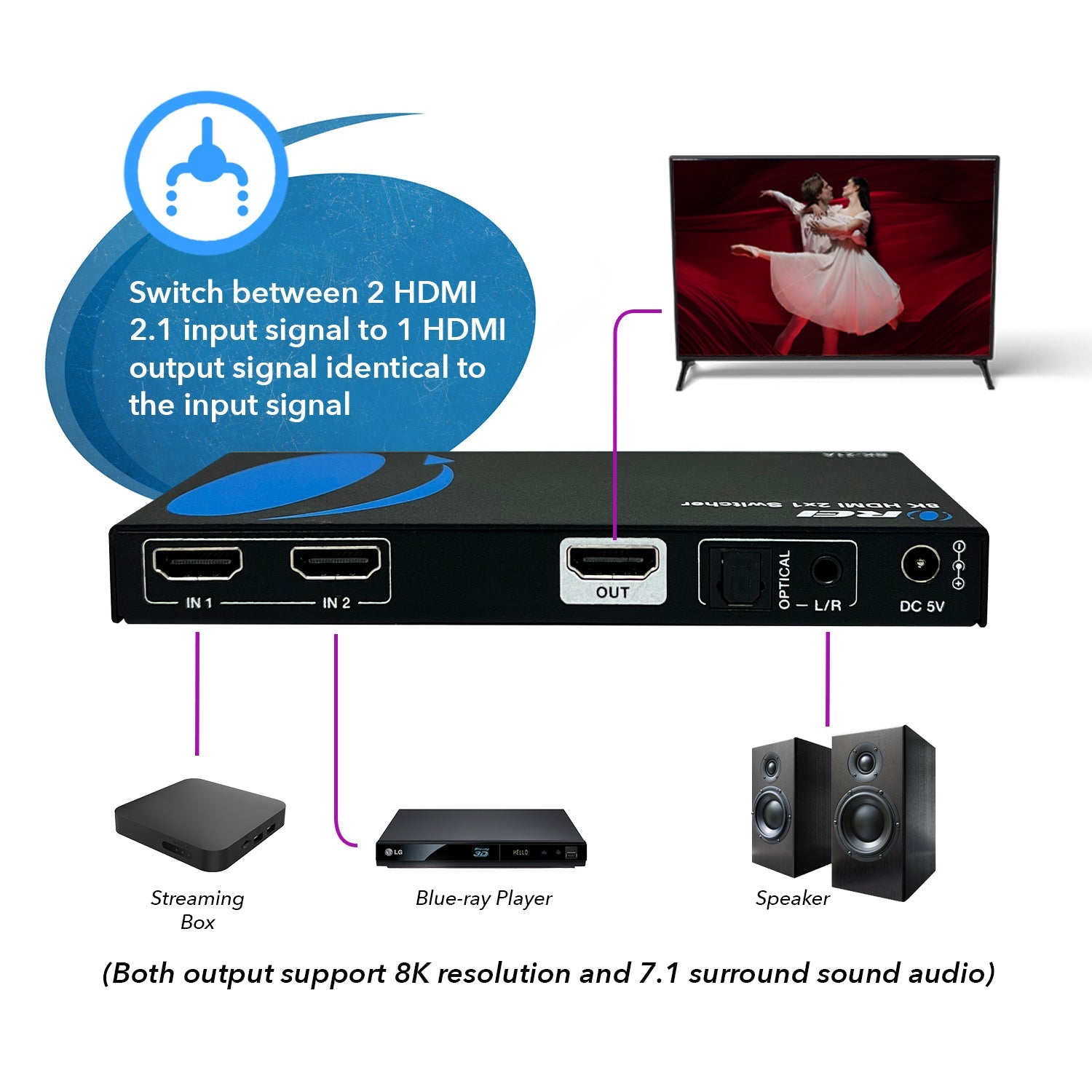

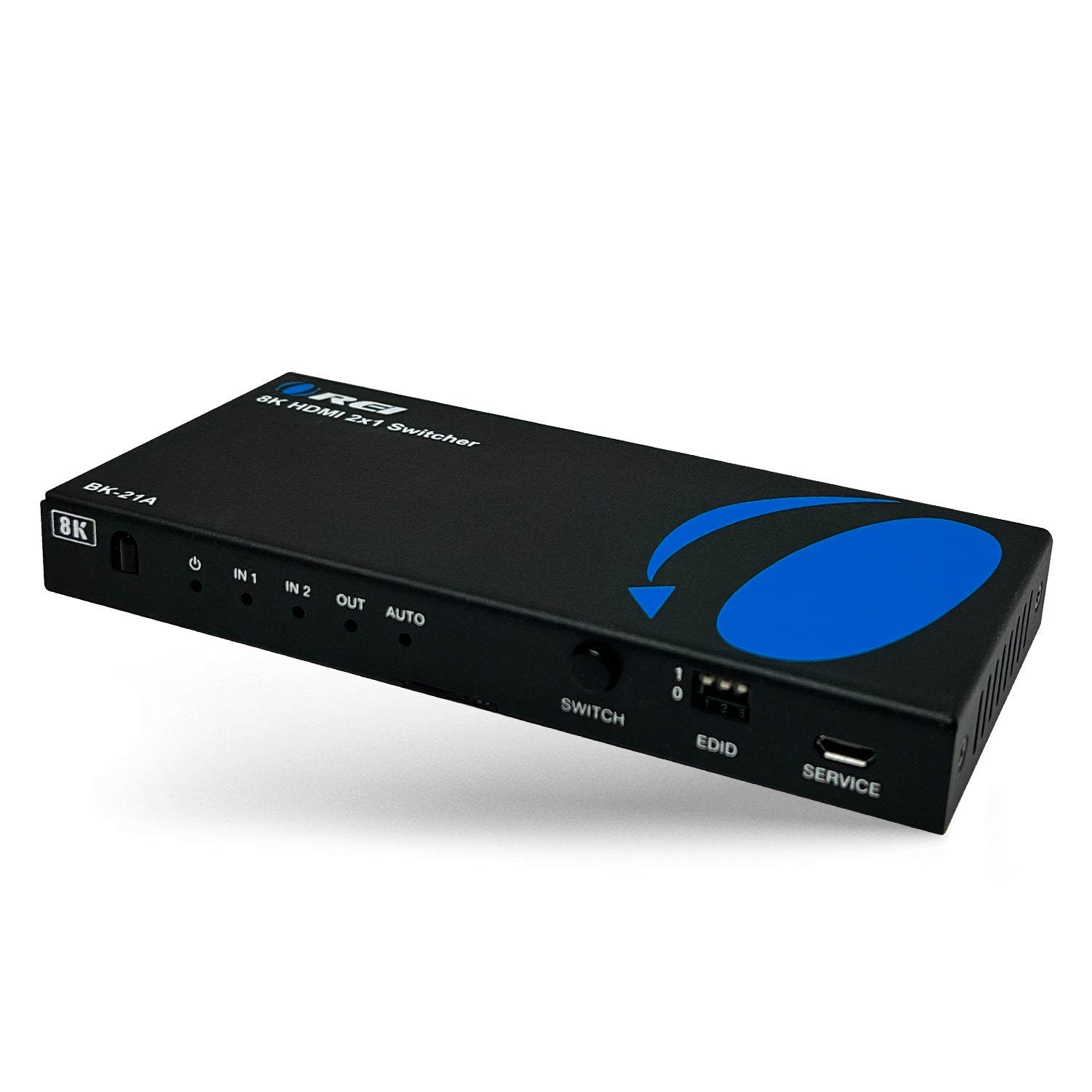

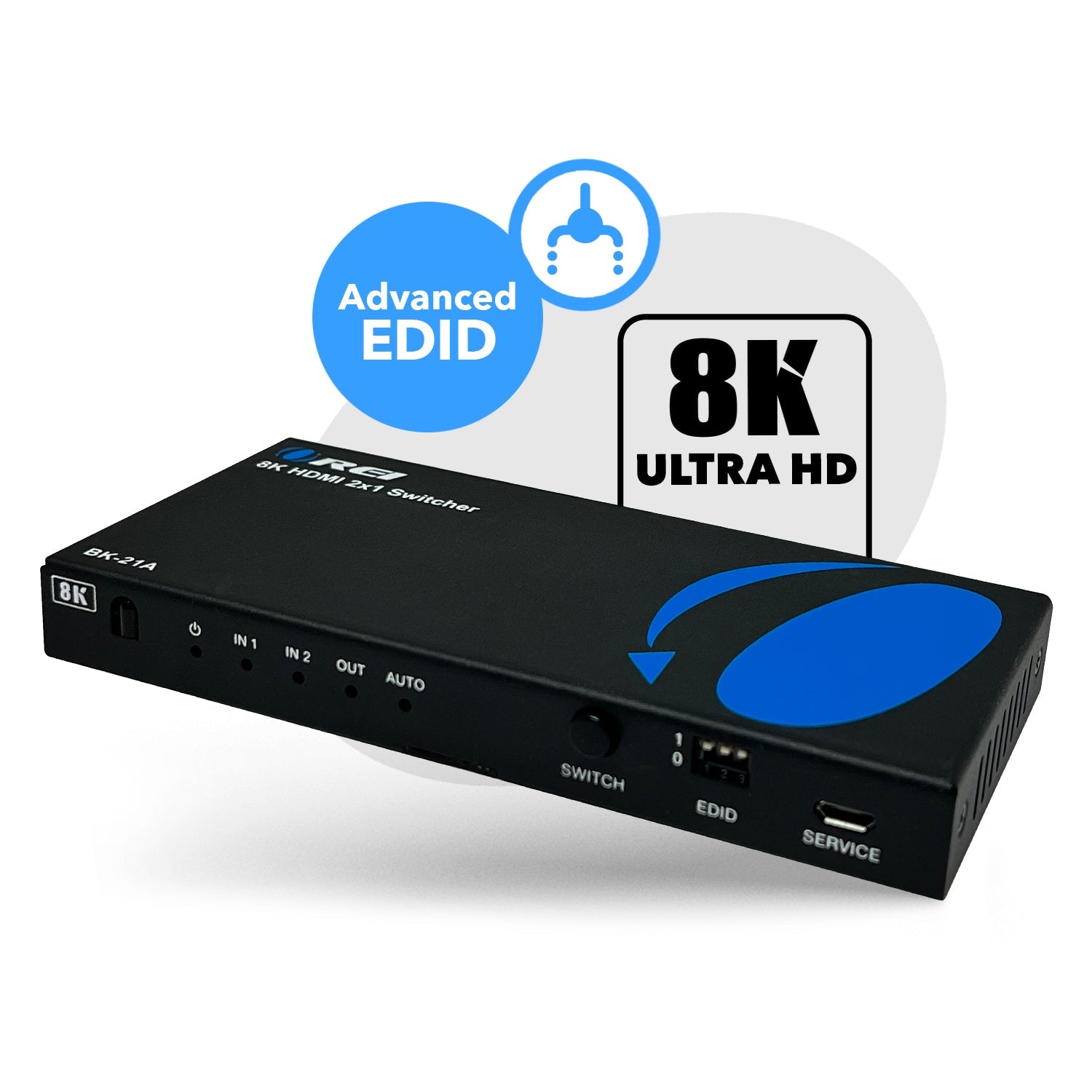

The BK-21A HDMI Switch allows you to switch between 2 Media devices on a single display. It supports video resolution up to 8K@60Hz 4:2:0 with support for 4K@120Hz and 1080p@240Hz. The device features 48Gbps video bandwidth. Optical and Analog 3.5mm outputs for Audio Extraction. The switch is HDMI 2.1 and HDCP 2.3 compliant. It also supports HDMI 2.1 features such as Variable Refresh Rate(VRR), Auto Low Latency Mode(ALLM), and Fast VActive(FVA). The BK-21A can be used with a variety of devices such as Xbox, PlayStation, Roku Stick, Fire Cube, DVD Players, etc. while providing you with a mesmerizing output on your 8K display.
[shortdes]
Audio extraction through S/PDIF and L/R audio outputs
Video resolutions up to 8K@60Hz, 4K@120Hz and 1080p@240Hz
Advanced EDID management
[/shortdes]
[tab]

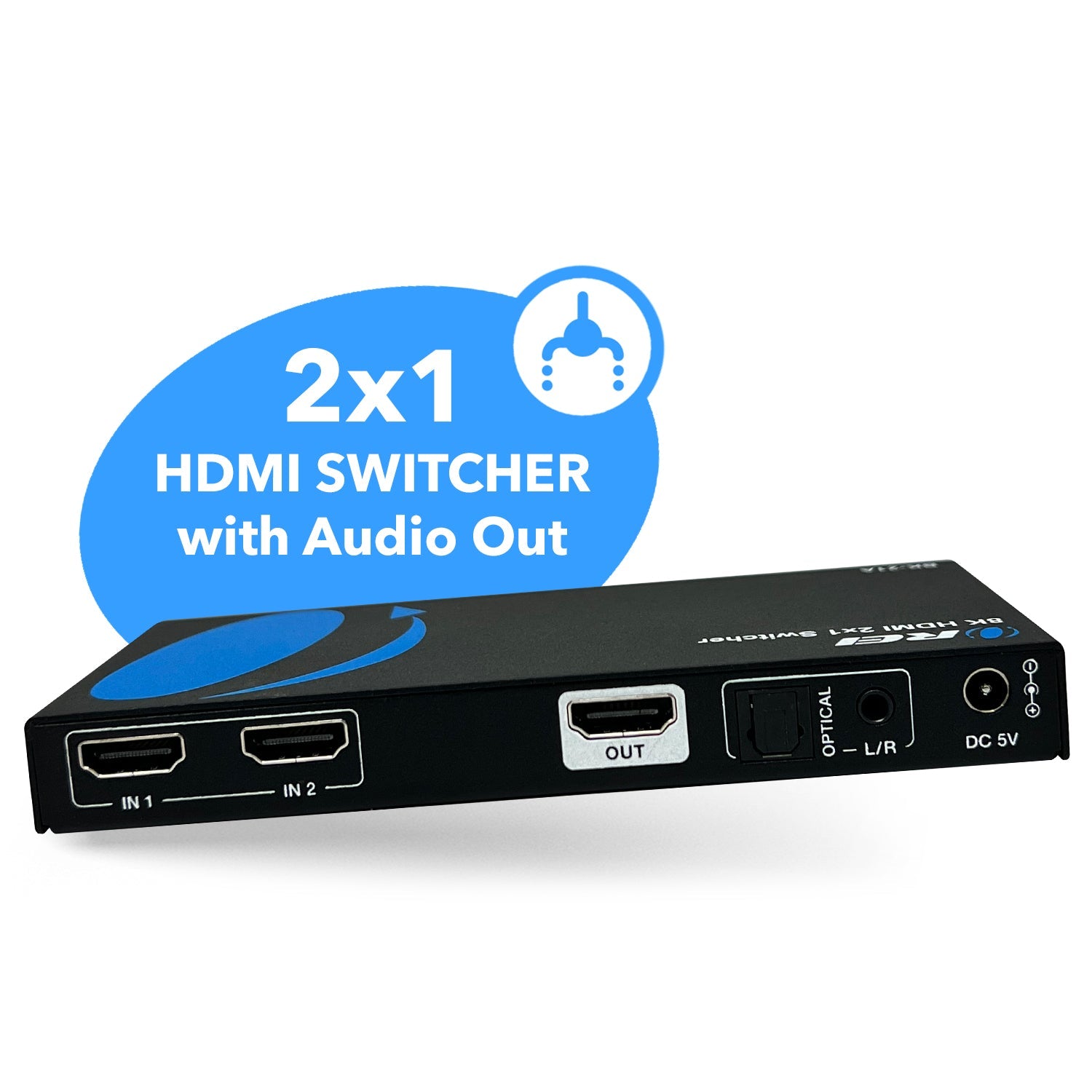

CONNECTIVITY
INPUT:
2 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × OPTICAL [S/PDIF, female]
1 × L/R [3.5mm Stereo mini-jack]
CONTROL:
1 × SERVICE [USB-C, Update port]
PACKAGE CONTENTS
1x BK-21A
1x Remote
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.1
We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
8K@60Hz:
6 Feet
4K@60Hz:
30 Feet
1080p@240Hz:
30 Feet
VIDEO OUTPUT
Video Bandwidth:
48 Gbps
Video Resolutions:
Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit & 4K@120Hz 4:4:4 10bit
