Video resolution up to 8K@60Hz 4:2:0 12bit and 4K@120hz 4:4:4 12bit.
HDR/10/10+, Dolby Vision and HLG pass-through.
VRR, ALLM, QMS, QFT, SBTM support.
Audio Extraction through Analog and Optical outputs.
Advanced EDID management.
8K to 4K or 8K/4K to 1080P auto downscaling on all outputs.
Automatic HDR to SDR Conversion on all outputs.

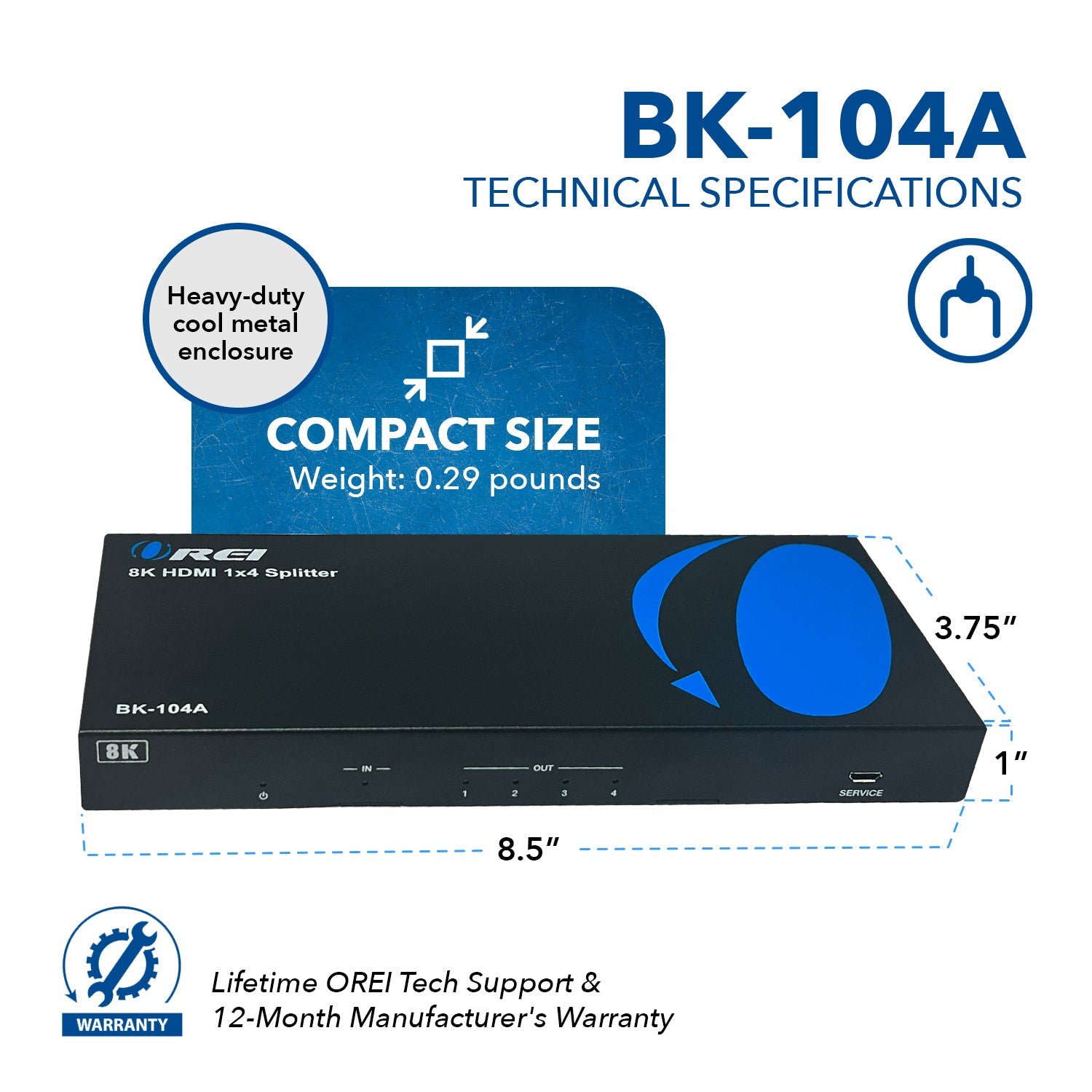

Compact and robust design

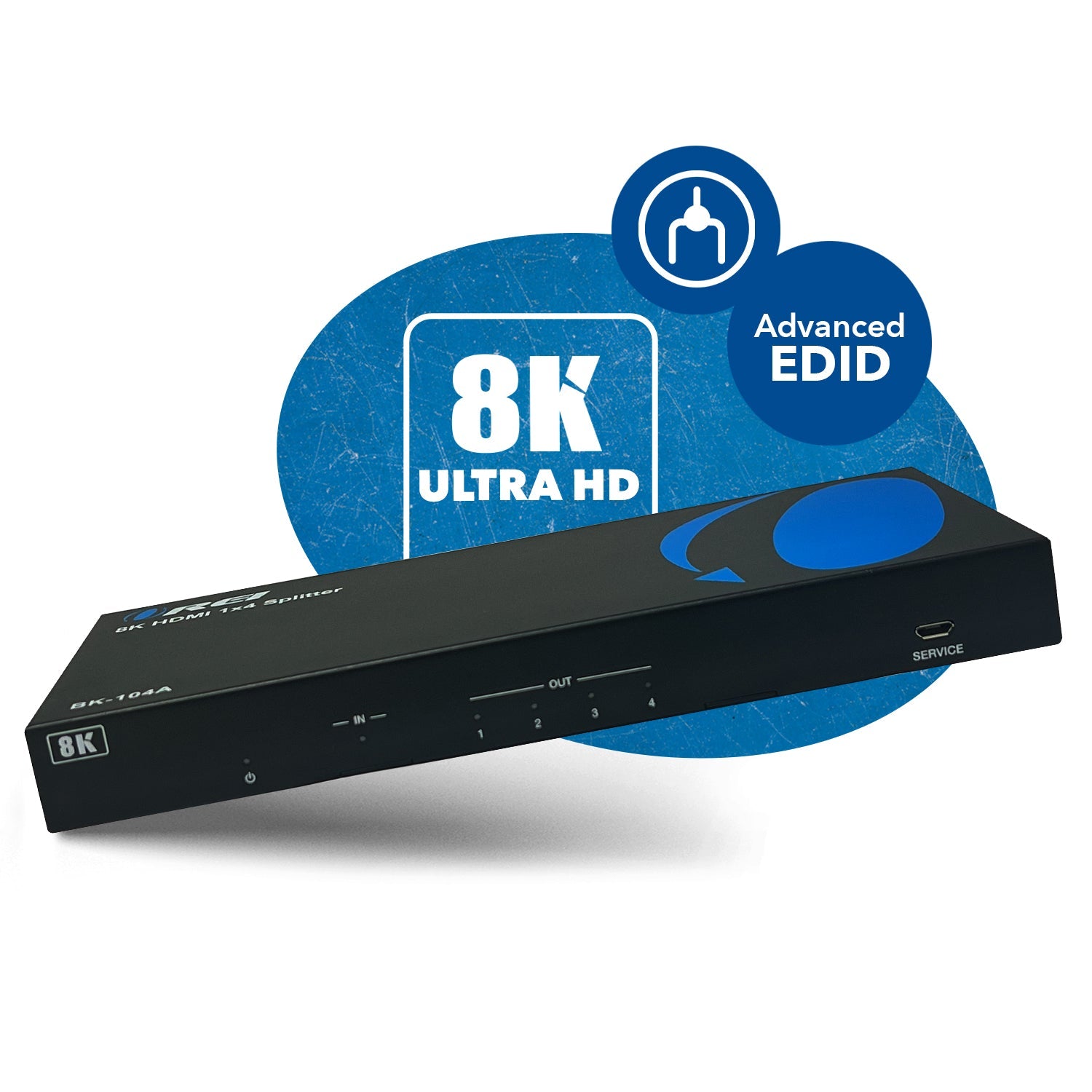

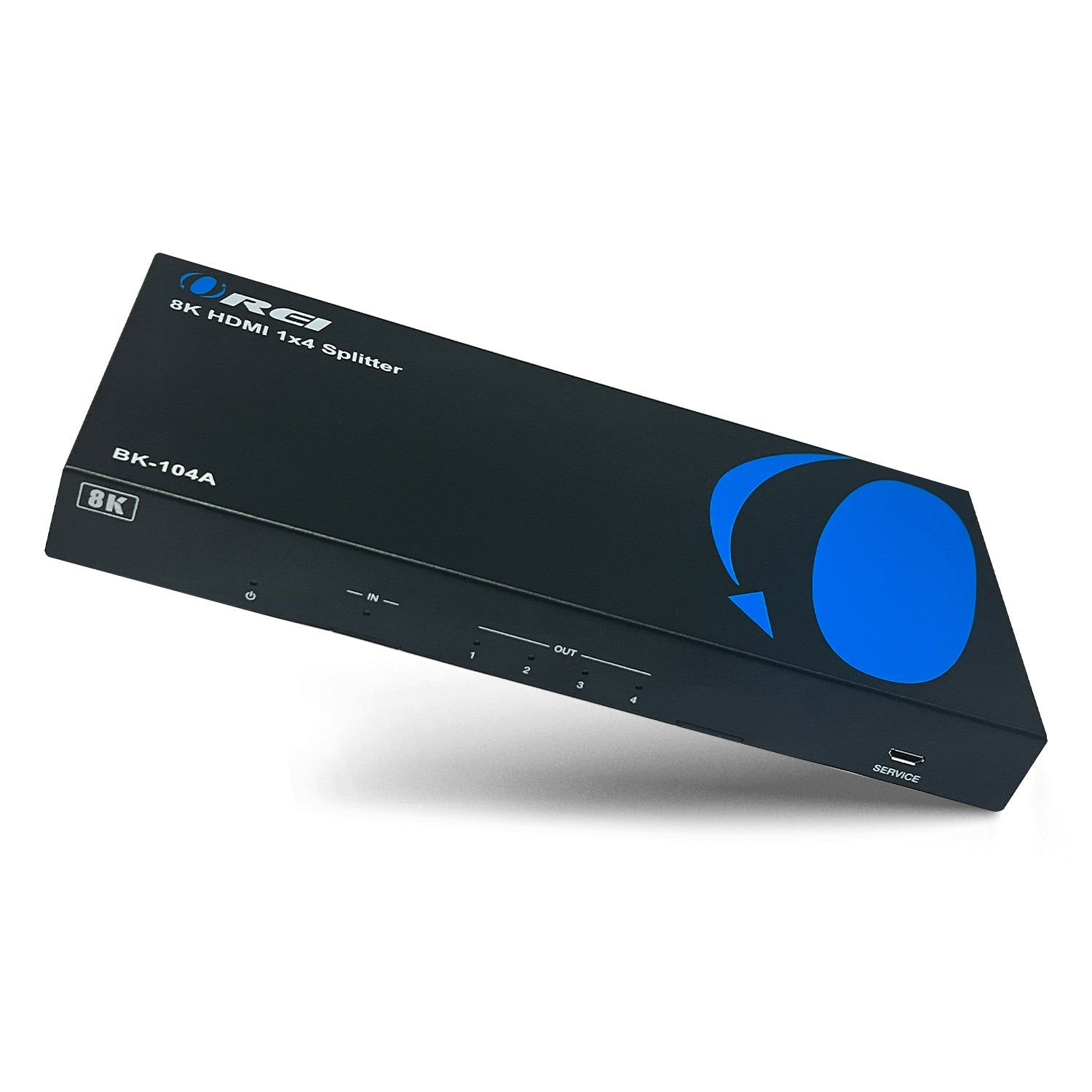

The BK-104A 1x4 8K HDMI Splitter is an advanced solution for splitting a single media signal to 4 HDMI outputs synchronously, with video resolutions up to 8K@60Hz 4:2:0 12bit. It features audio extraction via optical and analog outputs, allowing you to separate audio for an immersive experience. It supports video bandwidth of up to 48Gbps FRL & 18Gbps TMDS, and complies with HDMI 2.1 and HDCP 2.3 standards. HDR/10/10+, Dolby Vision and HLG pass through is supported. The device features advanced EDID management and can also downscale from 8K to 4K and from 8K/4K to 1080p. Moreover, it also features automatic HDR to SDR conversion for all outputs. It also features a compact design and plug & play setup.
[shortdes]
1 in 4 out 8K HDMI splitter With Audio Extraction
Resolutions up to 8K@60Hz 4:2:0
8K to 4K and 8K/4K to 1080p Downscale
[/shortdes]
[tab]

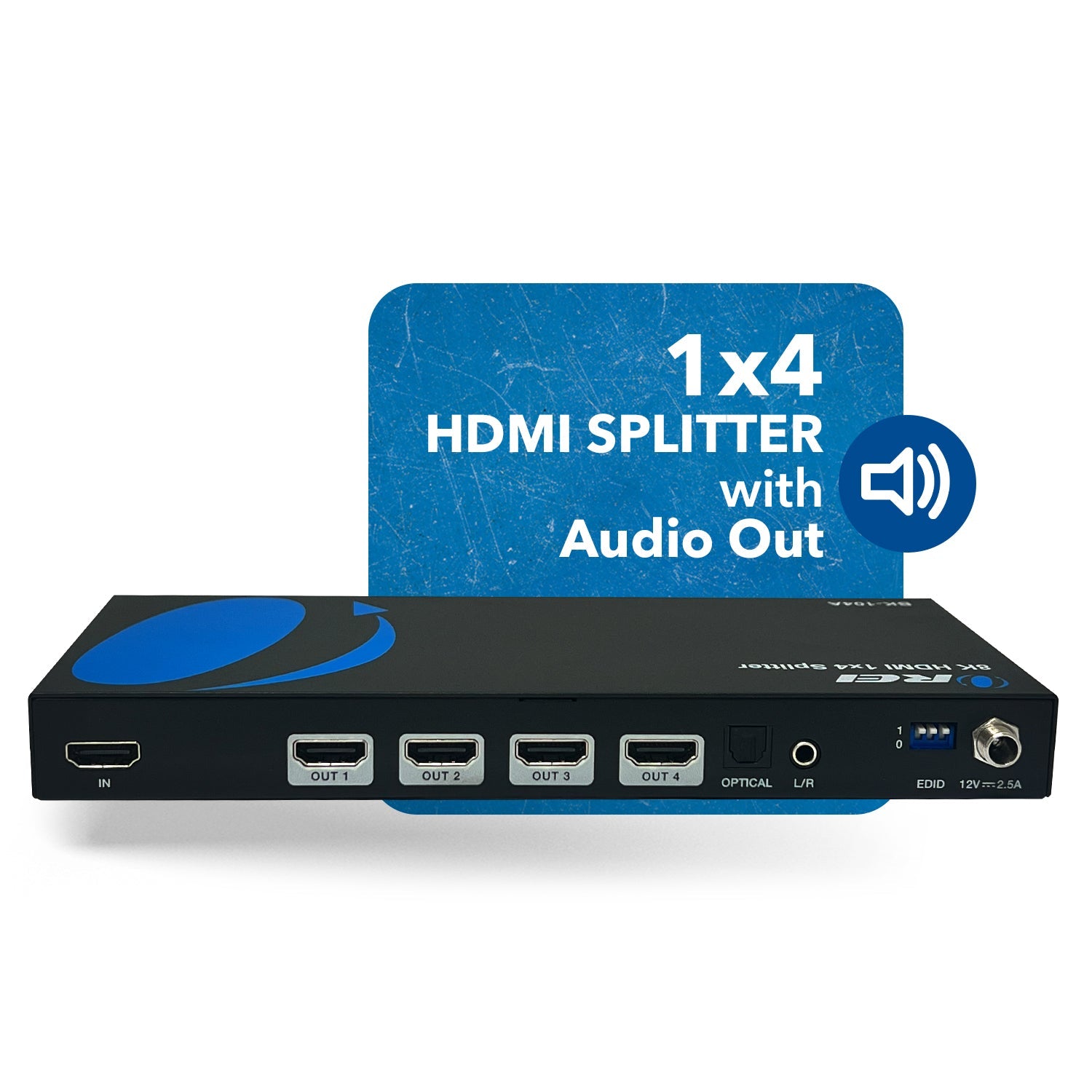

CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
4 × HDMI [Type A, 19-pin female]
1 × L/R [3.5mm Stereo Mini-jack]
1 × Optical [S/PDIF]
CONTROL:
1× SERVICE [USB-C, Update port]
PACKAGE CONTENTS
1x BK-104A HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.1
We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
8K@60Hz:
10 Feet
4K@60Hz:
30 Feet
VIDEO OUTPUT
Video Bandwidth:
48Gbps FRL & 18 Gbps TMDS
Video Resolutions:
Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit & 4K@120Hz 4:4:4 10bit
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
[/tab1]
General Information
UPC
850031132344
