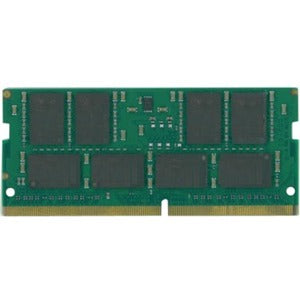

Dataram 8GB DDR4 SDRAM Memory Module
DTI24S2T8W/8G is an Unbuffered 1Gx64 small - outline memory module, which conforms to JEDEC's DDR4-2400T, PC4-2400T standard. The assembly is Dual-Rank. Each rank is comprised of eight 512Mbx8 DDR4-2400T Industrial temp SDRAMs.
One EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
- 8 GB memory allows you to have more programs open at a time
- 260-pin-pin DDR4-2400/PC4-2400 interface synchronizes electrical and clock signals for an efficient data transfer rate
- Up to 2400 MHz speed with Unbuffered signal for smooth computer performance
Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: SoDIMM
Length: 2.7"
Manufacturer: Dataram Corporation
Product Name: 8GB DDR4 SDRAM Memory Module
Manufacturer Part Number: DTI24S2T8W/8G
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 260-pin
Limited Warranty: Lifetime
Thickness: 145.7 mil
