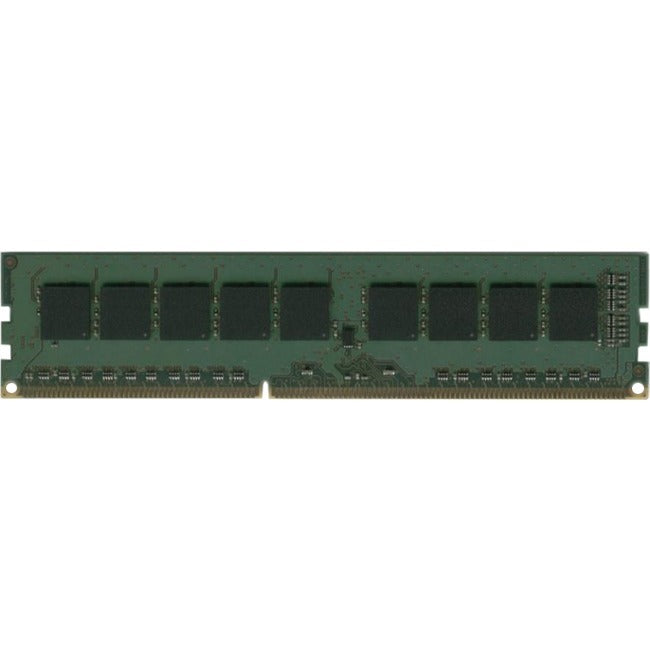

Dataram 8GB DDR3 SDRAM Memory Module DTM64458-S

Dataram 8GB DDR3 SDRAM Memory Module
The DTM64458-S is a low voltage, Unbuffered 1Gx72 memory module, which conforms to JEDEC's DDR3L, PC3L-12800 standard. The assembly is Dual-Rank containing: eighteen Samsung 512Mx8 DDR3L-1600 SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect.

A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Both output driver strength and input termination impedance are programmable

• DIMM 8 GB of memory makes a perfect symmetry with your latest model processor and boosts up your computer's performance


• DDR3-1600/PC3L-12800 interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance


• Up to 1600 MHz speed for smooth computer performance

Product Type: RAM Module
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Dataram
Form Factor: DIMM
Length: 5.3"
Manufacturer: Dataram Corporation
Product Name: 8GB DDR3 SDRAM Memory Module
Manufacturer Part Number: DTM64458-S
Manufacturer Website Address: http://www.dataram.com
Number Of Pins: 240-pin
Thickness: 157.5 mil
