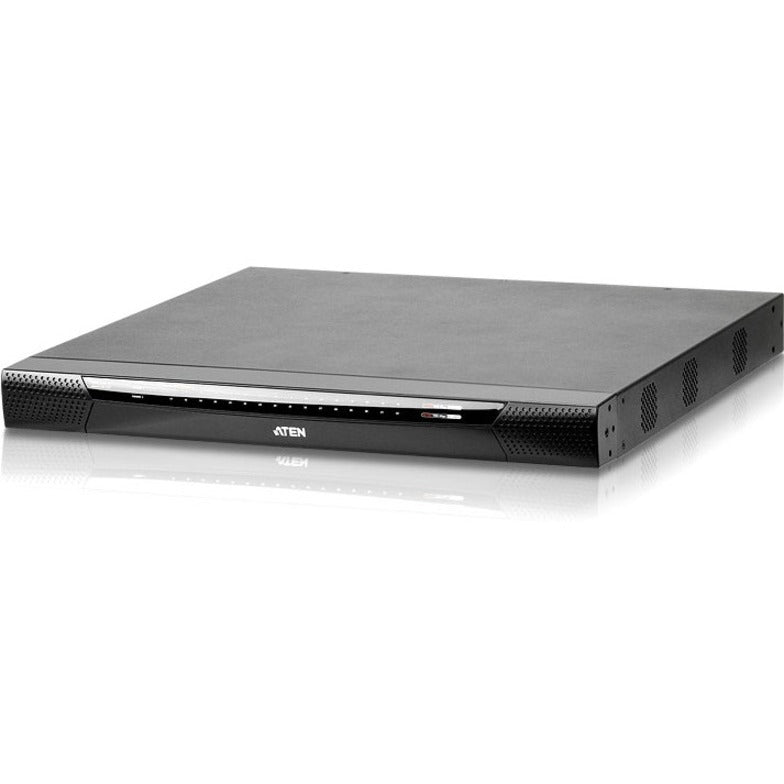

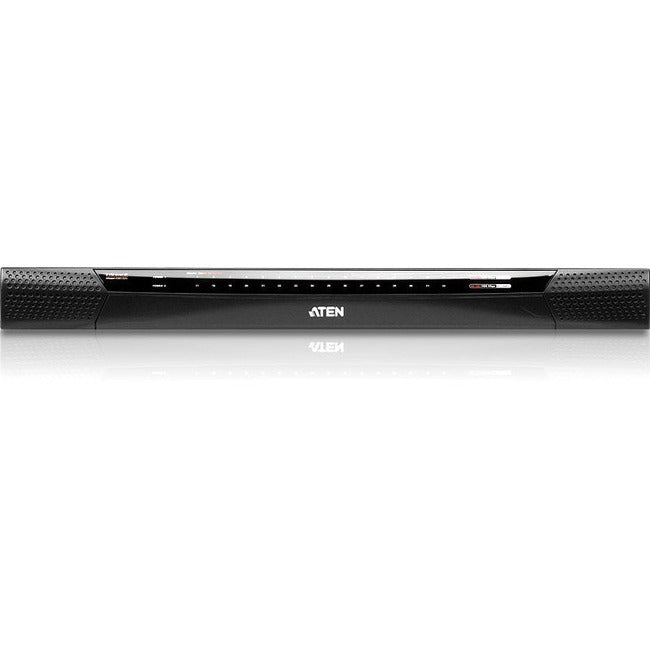

ATEN KN8132V KVM over IP Switch-TAA Compliant
ATEN's 4th generation of KVM over IP switches exceed expectations. The KN8132V features superior video quality (HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
New KN Series Exclusive:
- Advanced FPGA graphics processor - with an HD resolutions of 1920 x 1200
- Extreme virtual media speed - 2 x faster virtual media transmission speed
- High grade security - supports FIPS 140-2 level 1 security standards
With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers.
KN series devices can be integrated into the CC2000 Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world - allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines.
To help you manage and control an entire data center, ATEN KVM over IP switches support blade servers and chassis. With powerful features such as Power Association - KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches' user interface.
Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode™, Mouse DynaSync™ and the Adapter ID.
ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere - minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services possible.
- Local console provides USB keyboard and mouse support
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Blade server support
- Eight separate buses for remote KVM over IP access
- Laptop USB Console (LUC) - A dedicated USB port directly connects to a laptop for easy Console operation
- High port density - RJ-45 connectors and Cat 5e/6 cable for up to 32 ports in a 1U housing
- High grade security - supports FIPS 140-2 level 1 security standards
- Simultaneously share one local console and four/eight independent connections to the attached servers
- Extreme virtual media speed - 2 x faster virtual media transmission speed
- Advanced FPGA graphics processor - with an HD resolution of 1920 x 1200
Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: Taiwan
Product Series: KN
Rack Height: 1U
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology Inc
Product Model: KN8132V
Product Name: KN8132V KVM over IP Switch
Product Line: ALTUSEN
Manufacturer Part Number: KN8132V
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:
- KN8132V KVM over IP Switch
- 2 x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
- 2 x Power Cords
- 1 x Mounting Kit
- 2 x Lok-U-Plugs
- 1 x Lok-U-Plug Installation Tool
- 4 x Foot Pad Set
- 1 x User Instructions
Limited Warranty: 3 Year
Weight (Approximate): 12.79 lb
