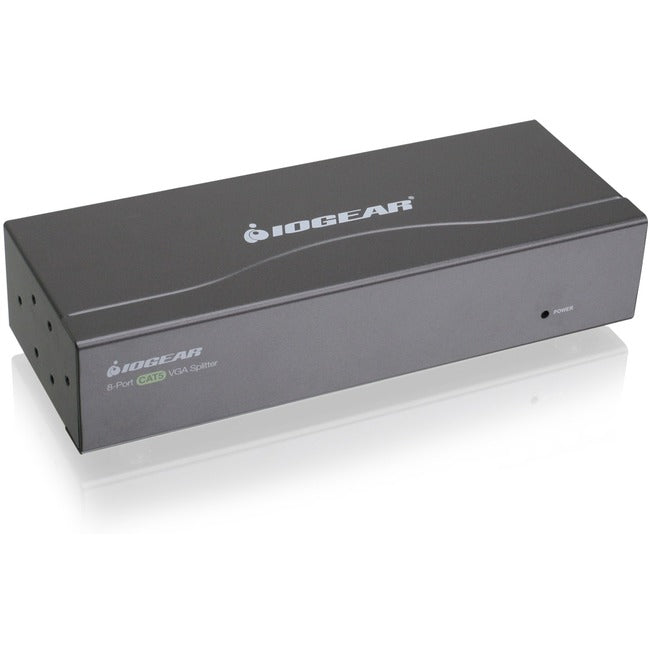

IOGEAR GVS148TX Video Extender

IOGEAR GVS148TX Video Extender

The GVS148TX is an 8-port VGA audio video splitter best for splitting and carrying audio / video signals to more that eight monitors or displays with the same quality as the original signal. By utilizing CAT5e/6 cables the unit is able to extend audio / video signals over 900ft to eight remote monitors or displays with powered speakers. Operating with a bandwidth of 225MHz allows for the transmission of large amounts of information at a very high rate of speed capable of high resolution settings of up to 1920 x 1200.

More from the Manufacturer

• Plug-n-Play


• Extends up to 300m (990ft) away from the receiver unit*


• High resolution support: 1920x1200 @ 60Hz for 495ft (150m),1280x1024 @ 60Hz for 990ft (300m)


• Connect with VGA CAT5e/6 Audio / Video Receiver (Part No: GVE140RX)


• Supports up to 225MHz bandwidth


• Built-in 8KV / 15KV ESD protection


• High resolution 1920 x 1200 @ 60Hz


• Provides local VGA video and 3.5mm audio port


• Audio enabled (mono)


• Split and extend 1 VGA source with audio over 8 VGA monitors and powered speakers via CAT5e/6

Product Type: Video Extender Transmitter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Transmitter Height: 1.75"
Transmitter Width: 7.75"
Transmitter Depth: 3"
Transmitter Weight (Approximate): 1.40 lb
Country Of Origin: Taiwan
Brand Name: IOGEAR
Form Factor: Rack-mountable
Manufacturer: IOGEAR, Inc
Product Model: GVS148TX
Product Name: GVS148TX Video Extender
Manufacturer Part Number: GVS148TX
Manufacturer Website Address: http://www.iogear.com
Package Contents:

• GVS148TX Video Extender


• 1 x Power Adapter


• 1 x Rack Mount Kit


• 1 x Foot Pad Set


• 1 x Grounding Wire


• 1 x Quick Start Guide


• 1 x Warranty Card
