8-Port Usb Ps/2 Combo Kvmp Switch

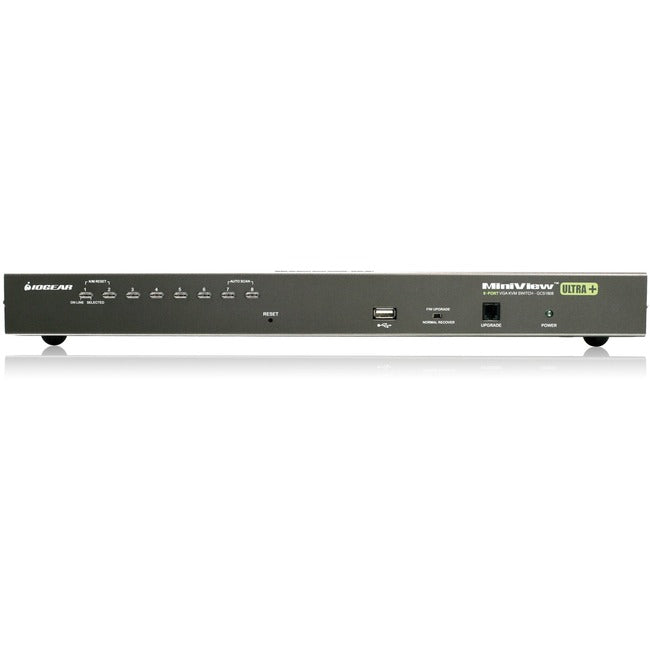

IOGEAR GCS1808 Combo KVM Switch

The GCS1808 Combo KVM Switch allows access and control of up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches.

More from the Manufacturer

• Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys


• Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®


• Rack mountable in a 19" (1U) system rack


• Broadcast Mode to send commands to all connected computers


• Auto Scan Mode to monitor connected computers


• Front USB Port - for system upgrades


• Security - 2 level password protection for OSD


• Cascade up to 2 levels - control up to 128 computers from a single console


• Maximum video resolution: up to 2048 x 1536


• 8-Port VGA KVMP with USB and PS/2 Interface

Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Rack Height: 1U
Brand Name: IOGEAR
Form Factor: Rack-mountable
Manufacturer: IOGEAR, Inc
Product Name: GCS1808 Combo KVM Switch
Manufacturer Part Number: GCS1808
Manufacturer Website Address: http://www.iogear.com
Package Contents:

• GCS1808 Combo KVM Switch


• 2 x Custom KVM Cable Sets (1 USB & 1 PS/2)


• 1 x Console Cable


• 1 x Cascade Cable


• 1 x Firmware Upgrade Cable


• 1 x Grounding Wire


• 1 x Foot Pad Set (4 Pads)


• 1 x Power Adapter


• 1 x Standard Rack Mounting Kit


• 1 x Installation Guide


• 1 x Warranty Card
