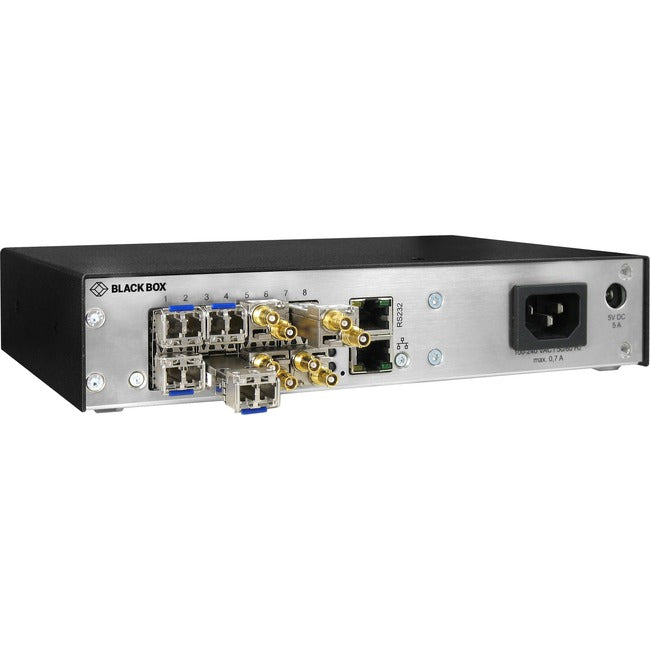

Black Box DKM Compact KVM Matrix Switch - Redundant Power, Universal, SFP, 8-Port
The switches are for smaller KVM systems and use the same technology as in our larger DKM switches. Choose from CATx, fiber (1-Gbps), high-speed fiber (3-Gbps) or combinations (6-Gbps) (6-Gbps). They work with DKM extender modules.
- Control via Java Utility or an API interface.
- Features redundant power for mission-critical applications. Only one, integrated power supply is included.
- Each port is agnostic and can support a transmitter or receiver.
- Can be easily cascaded to support future expansion.
- Switches are available in CATx, fiber (1-Gbps), high-speed fiber (3-Gbps) or combinations. They work with DKM extender modules to accommodate a wide variety of signal formats.
- Supports USB 3.0 and 3GSDI.
- Supports central management of all attached endpoints, including firmware upgrading, user access control, configuration, etc. (Model dependent).
- Enables instant matrix switching support for eight KVM/SDI endpoints depending on the fiber of BNC-style SFPs used. SFPs not included.
Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Series: DKM FX Compact
Brand Name: Black Box
Form Factor: Desktop
Manufacturer: Black Box Corporation
Product Model: ACXC8U
Product Name: DKM Compact KVM Matrix Switch - Redundant Power, Universal, SFP, 8-Port
Manufacturer Part Number: ACXC8U
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- DKM Compact KVM Matrix Switch - Redundant Power, Universal, SFP, 8-Port
- 1 x US power cord
- 1 x RJ-45 adapter
- 4 x Rubber feet
- User Manual
