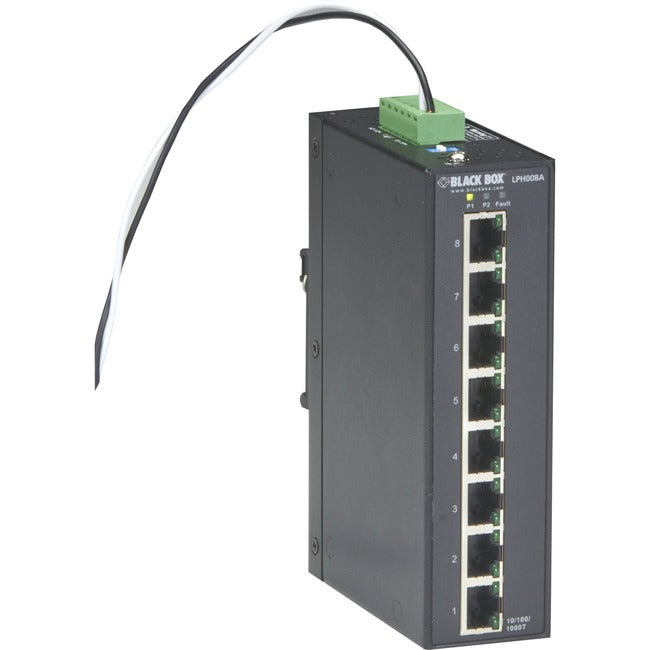

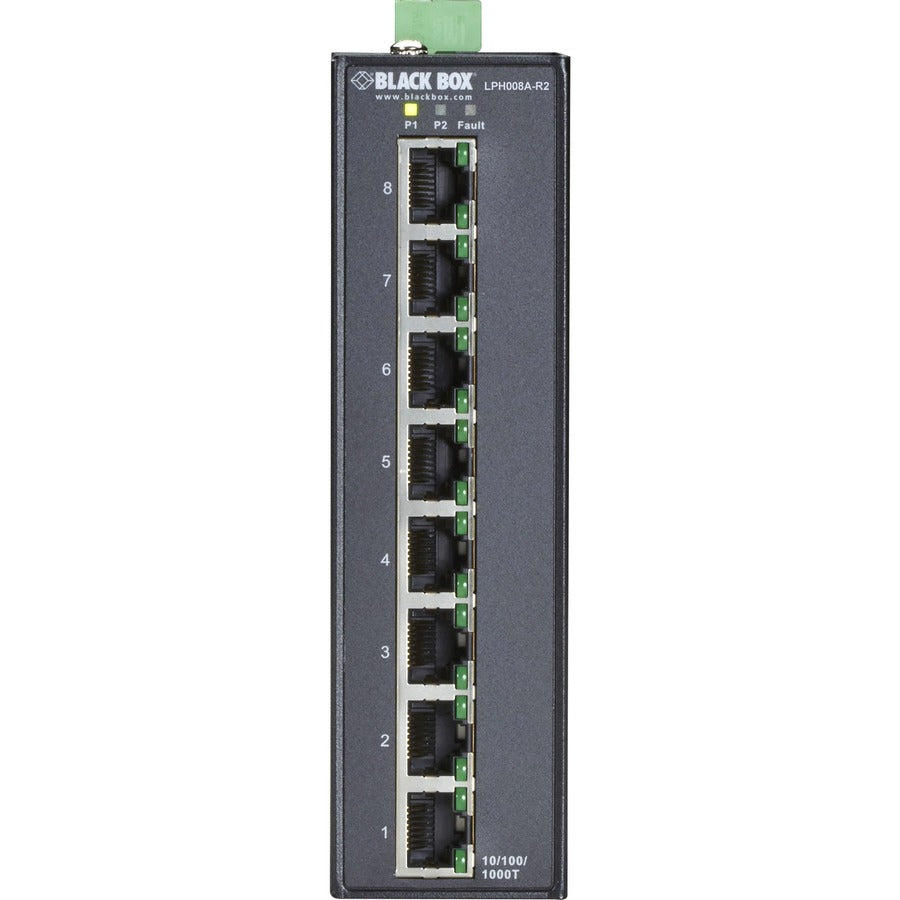

This Black Box LPH008A-R2 industrial PoE+ switch is perfect for industrial network engineers and facility managers who need reliable extreme temperature switches in harsh environments. Our solution delivers:
-
Industrial-grade PoE+ power delivery for demanding applications
-
8-port gigabit connectivity with extreme temperature tolerance
-
Ruggedized design for mission-critical industrial operations
-
Power over Ethernet adapter functionality for simplified installations
Key Features
-
8 Gigabit Ethernet RJ45 ports with PoE+ power delivery
-
Extreme temperature operation from -40°C to +75°C
- Optimized for industrial networking environments
- Consistent 1000 Mbps performance in harsh conditions
-
IEEE 802.3at PoE+ compliance up to 30W per port
- Support for industrial automation protocols
-
DIN rail and rack mounting options for flexible deployment
Technical Specifications
| Manufacturer |
Black Box Corporation |
| Model Number |
LPH008A-R2 |
| Type |
Industrial PoE+ Ethernet Switch |
| Port Configuration |
8 x 10/100/1000 RJ45 PoE+ ports |
| PoE Power Budget |
240W total PoE+ power |
| Power per Port |
30W maximum (IEEE 802.3at) |
| Operating Temperature |
-40°C to +75°C (-40°F to +167°F) |
| Switching Capacity |
16 Gbps |
| MAC Address Table |
8,000 entries |
| Power Input |
48-56 VDC |
| Mounting |
DIN rail, wall mount, or 19-inch rack |
| Protection Rating |
IP30 enclosure |
| Compatible Systems |
Industrial automation, surveillance systems, outdoor networks |
Frequently Asked Questions
Q: What makes this switch suitable for extreme temperature environments?
A: The Black Box LPH008A-R2 operates reliably from -40°C to +75°C with industrial-grade components and ruggedized design perfect for outdoor and harsh industrial applications.
Q: How much PoE+ power can each port deliver?
A: Each port delivers up to 30W of PoE+ power per IEEE 802.3at standards. The switch provides 240W total power budget for powering IP cameras, wireless access points, and industrial devices.
Q: Is this switch suitable for industrial automation networks?
A: Yes. Industrial Ethernet switch capabilities include support for automation protocols, redundant power inputs, and electromagnetic interference resistance — perfect for manufacturing and process control environments.
Q: What mounting options are available for this industrial switch?
A: The switch supports flexible industrial mounting including DIN rail mounting, wall mounting, and standard 19-inch rack installation for diverse industrial deployment scenarios.
Black Box LPH008A-R2 industrial PoE+ switch. 8-port gigabit ethernet with extreme temperature operation and 30W PoE+ power delivery.
