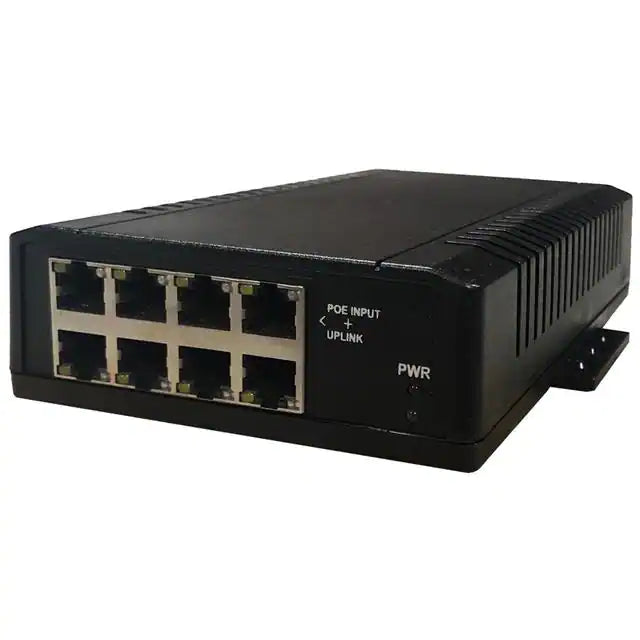

Tycon Power PoE 8 Port Switch
The TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a passive PoE model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via 2 or 4 pair PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
18V, 24V and 48V 60W, 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
- Features 8 networking ports to easily establish a local network or expand your existing one
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Managed switch provides a reliable foundation for your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rail mounting is ideal for factory areas, in vehicles and marine applications
Product Type: Ethernet Switch
Product Series: TP-SW8
Brand Name: Tycon Power
Form Factor: Rail-mountable
Manufacturer: Tycon Power Systems
Product Model: TP-SW8-D
Product Name: PoE 8 Port Switch
Manufacturer Part Number: TP-SW8-D
Manufacturer Website Address: http://www.tyconpower.com
Package Contents:
- PoE 8 Port Switch
- DIN rail Adapters
Limited Warranty: 1 Year
Weight (Approximate): 1.10 lb
