8-Port Dvi Kvmp Switch With Vga Support

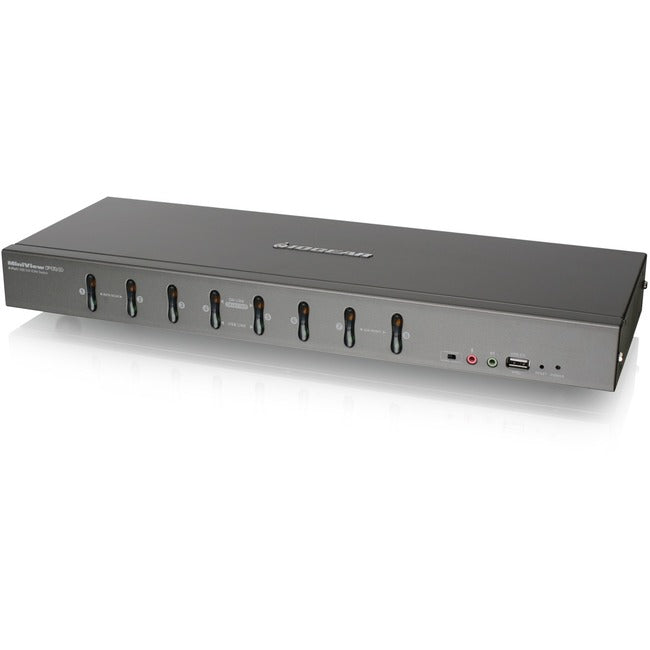

IOGEAR 8-Port DVI KVMP switch with VGA Support

The IOGEAR 8-port USB DVI KVMP Switch is a control unit that allows access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console. It can be cascaded to three levels - allowing up to 73 GCS1108s to control up to 512 computers - all from the original single console. In addition, GCS1108 comes with IOGEAR's Video DynaSync™ technology to optimize the display resolution. IOGEAR's DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers.

Switching between computers can be easily accomplished either by manually pressing the front panel push buttons, entering hotkey combinations from the keyboard, or via on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

More from the Manufacturer

• Cascadable to three levels - control up to 512 computers


• Two-level (Administrator / User) password authorization for enhanced security protection


• Independent switching of KVM and USB focus


• Includes two USB 2.0 peripheral sharing ports


• Computer selection via front panel pushbuttons, hotkeys, and on-screen display (OSD)


• Multiplatform support - Windows, Linux, Mac, Sun


• Supports widescreen resolutions


• Superior video quality: 1920x1200 (Single Link DVI), 2048x1536 (VGA); DDC2


• Supports both digital (DVI), analog (DVI) video and analog (VGA)


• One USB console controls eight DVI or VGA computers

Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: Taiwan
Brand Name: IOGEAR
Form Factor: Rack-mountable
Manufacturer: IOGEAR, Inc
Product Name: 8-Port DVI KVMP switch with VGA Support
Manufacturer Part Number: GCS1108
Manufacturer Website Address: http://www.iogear.com
Packaged Quantity: 1
Package Contents:

• 8-Port DVI KVMP switch with VGA Support


• 2 x Custom USB DVI KVM Cable Sets


• 1 x Firmware Upgrade Cable


• 1 x Power Adapter


• 1 x Foot Pad Set (4 pcs)


• 1 x User Manual


• 1 x Rack Mounting Kit
