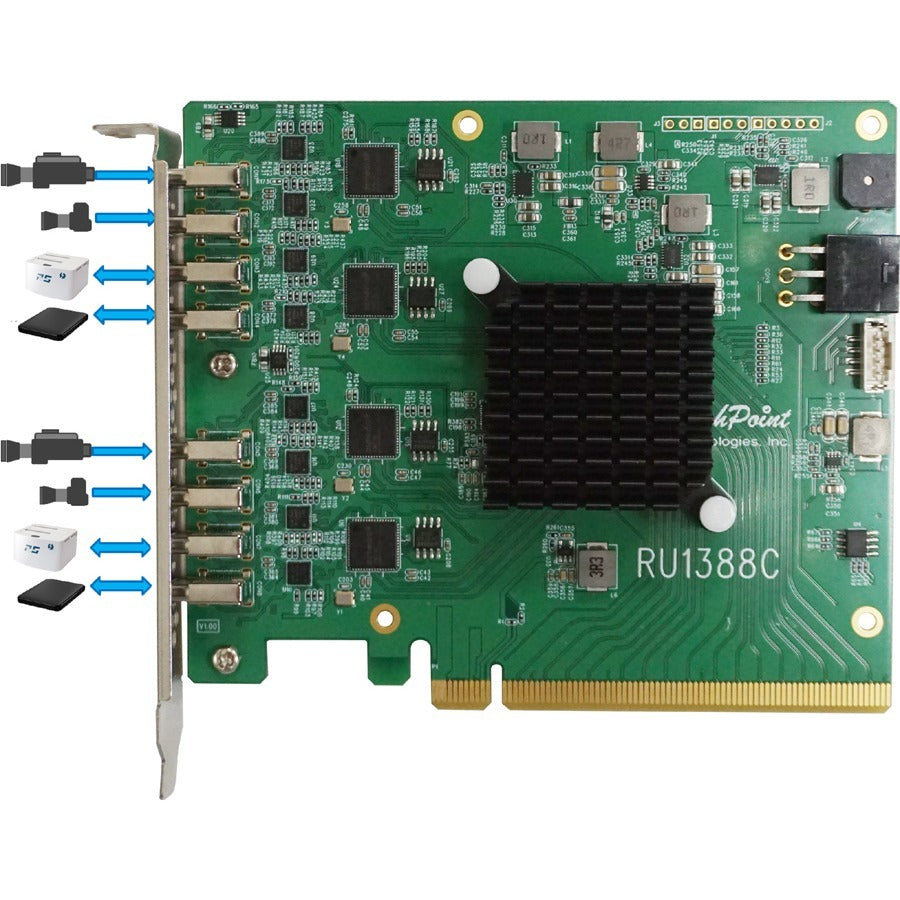

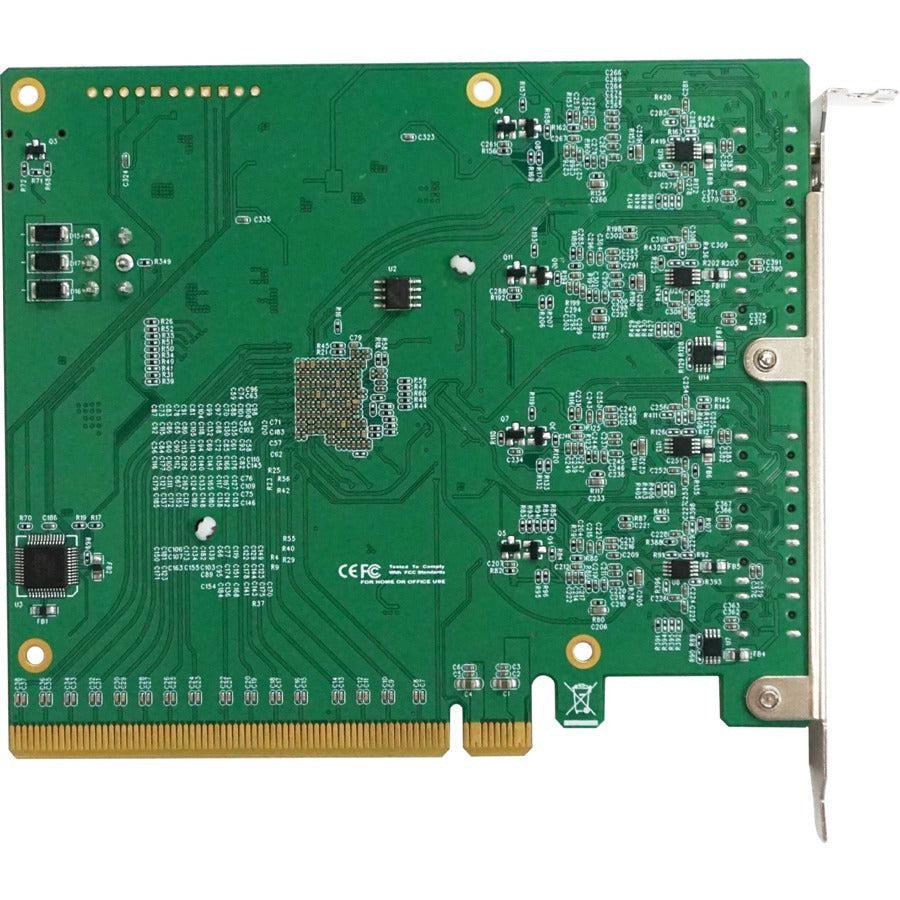

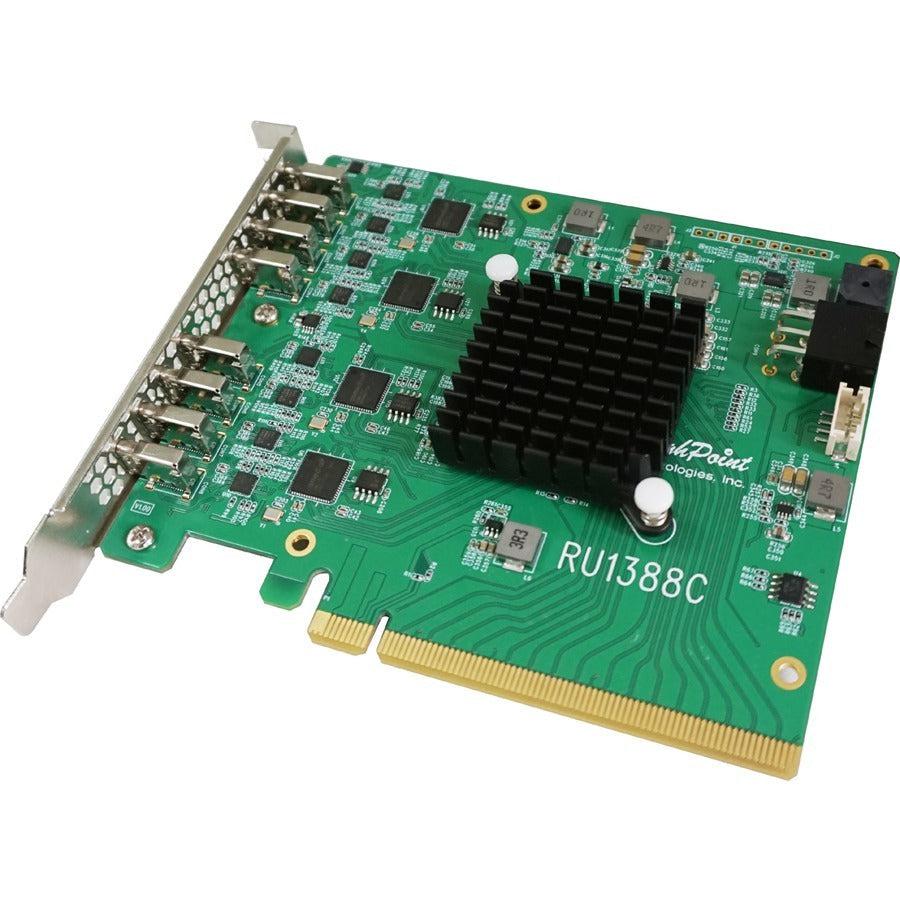

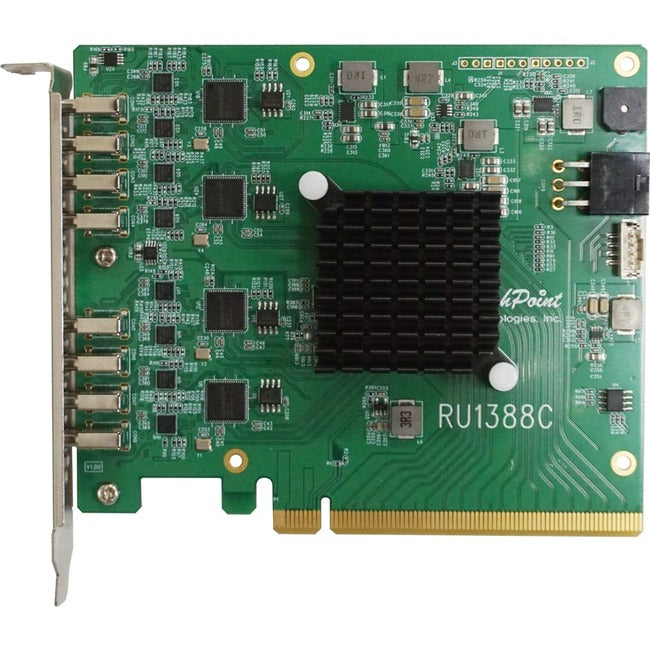

HighPoint RocketU 1388C USB Adapter
The RocketU 1388C is the industry's first 8-port USB 3.2 controller with up to 10G per-port transfer bandwidth. Each of the eight USB Type-C ports is fully independent, and powered by a up to 10Gb/s USB 3.2 controller chip, backed by a robust PCIe 3.0 x16 host interface. This unique host controller architecture ensures each hosted USB device can operate at peak performance without saturating the bus or taxing system resources.
- 8 USB-Type C ports support any industry-standard USB device or peripheral
- Ideal for professional-grade, High-Speed Data Acquisition & Transfer Applications
- Up to PCIe 3.0 x16 Host Interface
- 1000 MB/s of transfer bandwidth per USB port
- Driverless Installation: Native xHCI Support
Built for Professional Data Acquisition Solutions
8x 1000MB/s Transfer Bandwidth
Each of the RocketU 1388C's eight Type-C ports can support up to 10G (1000MB/s) of transfer bandwidth, can operate concurrently, and are capable of delivering up to 7.5W of power for device operation or charging purposes.
RocketU 1388C HBA can be easily integrated into workstation and server environments designed to host professional media and industrial applications. The eight industry-standard Type-C USB ports and PCIe 3.0 x16 host interface can easily accommodate a wide range of high-speed data acquisition solutions, including imaging and capture solutions, security systems, and media archiving.
Ideal for High-Speed Data Acquisition & Capture Applications
The RocketU 1388C's performance-focused HBA architecture was designed for workflows that demand ease of integration, hot-plug capability, and rapid file transfer. The eight independent 1000MB/s USB ports and PCIe 3.0 x16 host interface can easily accommodate a wide range of high-speed data acquisition applications, including imaging and capture solutions, security systems, and media archiving.

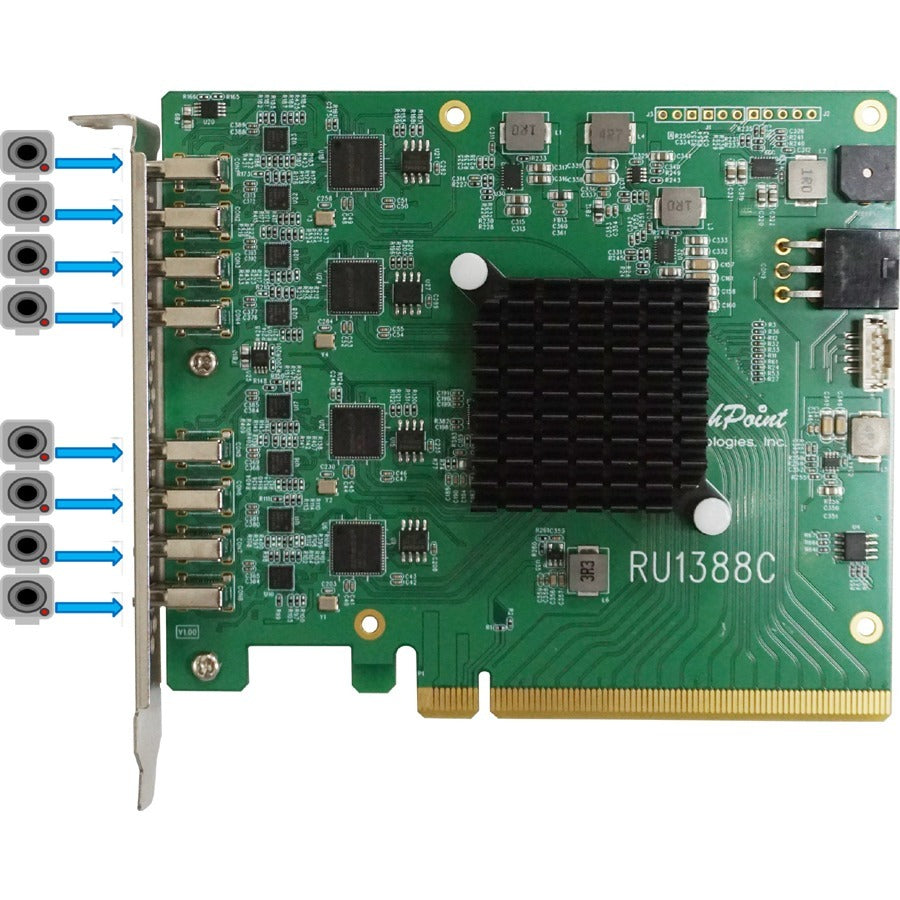

USB Cameras & Imaging/Capture Devices
Media Processing & Archiving
HighPoint RocketU 1388C 8x 1000MB/s PCIe 3.0 x16 USB Host Controller
Universal Device Compatibility
Works with any industry-standard USB 2.0/3.2 Gen1/3.2 Gen2 device

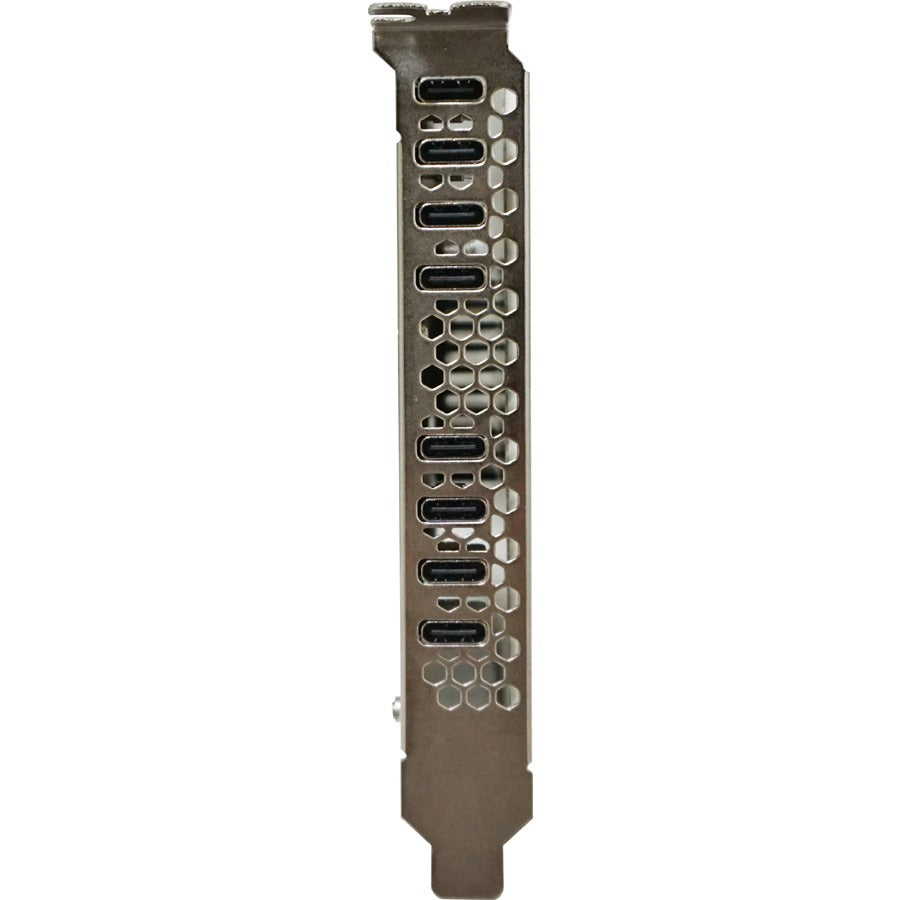

8x 10G USB-C Ports
The RocketU 1388C's eight USB Type-C ports can deliver up to 1000MB/s of trasnfer bandwidth
The RocketU 1388C is Thunderbolt™ compliant, and can be installed into PCIe expansion chassis, such as the RocketStor 6661A
xHCI CompliantDriverless Installation: The RocketU 1388C is
natively supported modern operating systems

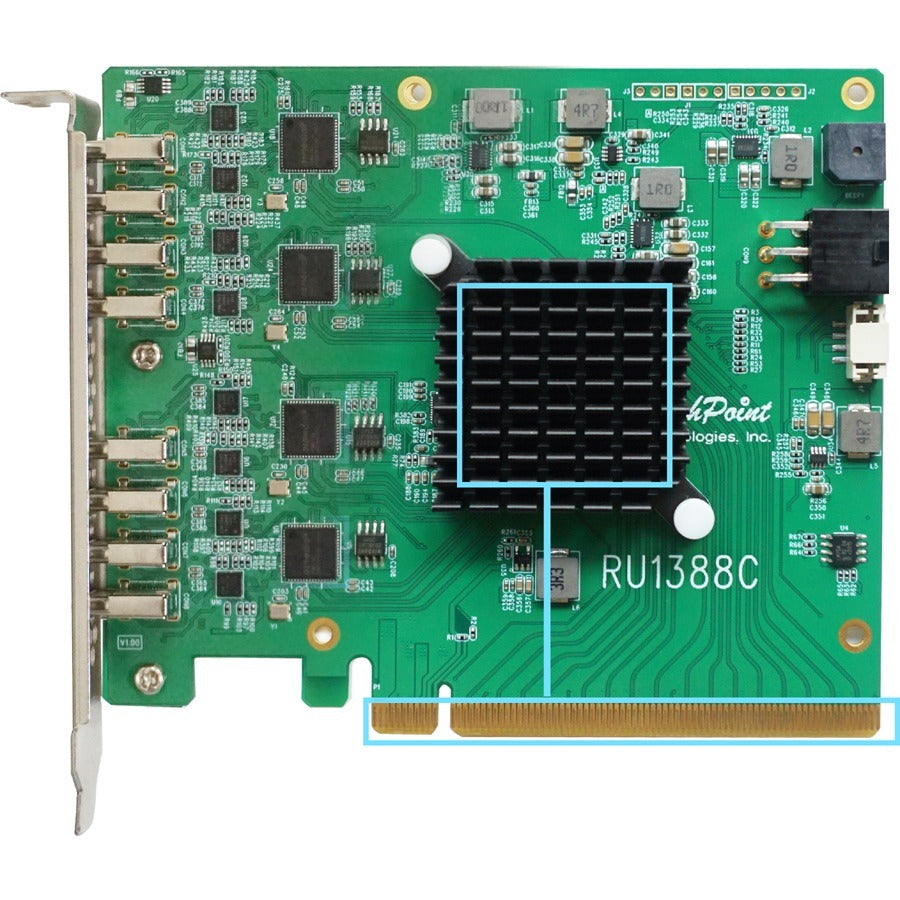

Ultra-High Performance:
Dedicated PCIe 3.0 x16 Bus-Bandwidth
USB Device Charging
RocketU 1388C can be used to charge USB compliant devices
Universal Compatibility
RocketU 1388C controllers can be installed into any computing platform with an industry-standard PCIe 3.0 or 4.0 16 slot. The eight independent USB Type-C ports support any industry-standard USB 2.0/USB 3.2 Gen1/USB 3.2 Gen2 device, including USB drives, cameras, printers, capture devices and peripherals.
- 8 USB Type-C ports support any industry-standard UB device or peripheral
- 1000 MB/s of transfer bandwidth per USB port
- Up to PCIe 3.0 x16 Host Interface
- Driverless Installation: Native xHCI Support
- Ideal for professional-grade, High- Speed Data Acquisition & Transfer Applications
Product Type: USB Adapter
Environmentally Friendly: Yes
Environmental Certification: REACH
Brand Name: HighPoint
Form Factor: Plug-in Card
Manufacturer: HighPoint Technologies, Inc
Product Model: 1388C
Product Name: RocketU 1388C USB Adapter
Product Line: RocketU
Manufacturer Part Number: RU1388C
Manufacturer Website Address: http://www.highpoint-tech.com
Packaged Quantity: 1
Platform Supported: Linux

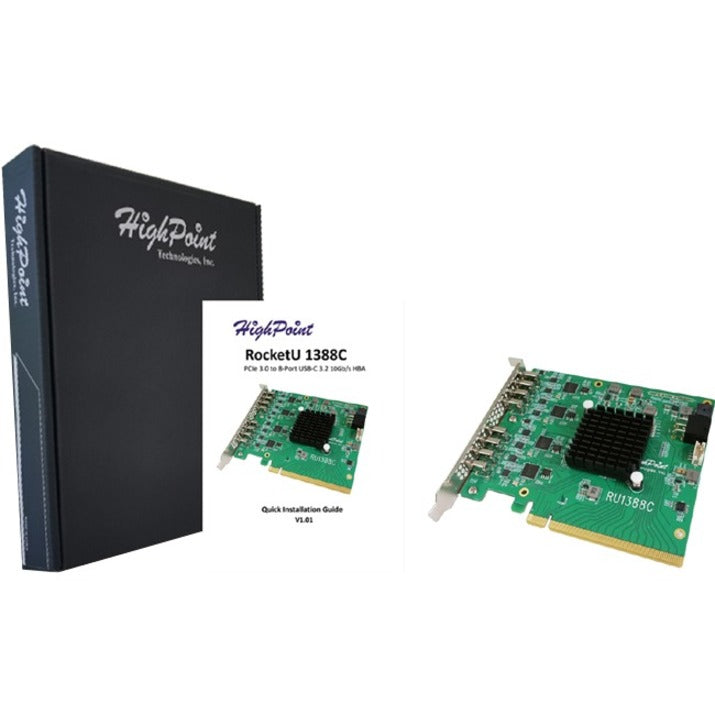

Package Contents:
- 1 x RocketU 1388C USB Adapter
- 1 x Quick Installation Guide
Limited Warranty: 1 Year
Weight (Approximate): 7.84 oz
