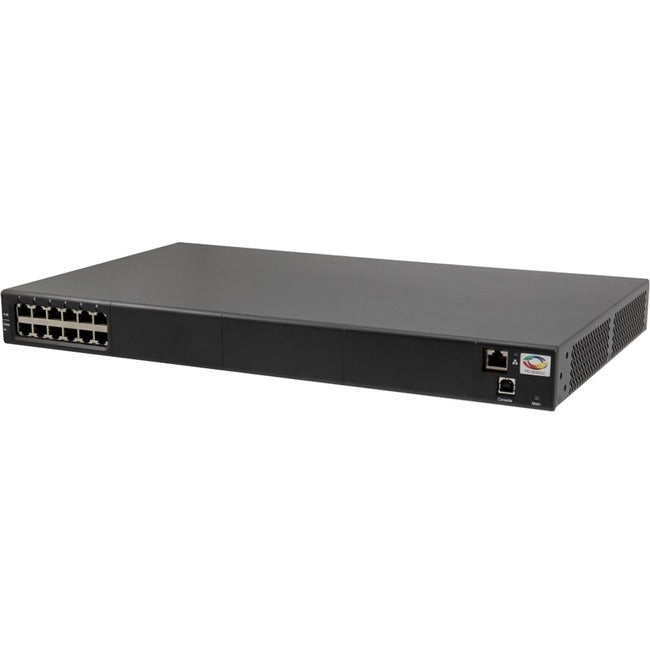

Microchip PD-9506GC/AC PoE Injector
The six ports PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9506GC is designed specifically to power IEEE 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals with 60W of power.
- Number of ports: 6
- PoE output: 60W per port
- Data rates: 10/100/1000 Mbps
- Power input: AC
- Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
- Regulatory compliance: IEEE 802.3bt, IEEE 802.3af/at, RoHS Compliant and CE
- EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
- Safety: UL/EN/IEC 60950-1 (Ed.2)
Product Type: PoE Injector
Environmentally Friendly: Yes
Environmental Certification: RoHS
Certifications & Standards:
- IEEE 802.3bt
- IEEE 802.3af/at
- CE
- FCC Part 15
- Class B
- EN 55032 Class B (Emissions)
- EN 55024 (Immunity)
- VCCI
- UL
- IEC
- EN 60950-1
Product Series: PD-9500GC
Rack Height: 1U
Brand Name: Microchip
Compatibility:
- Access Points
- Pan-tilt-zoom (PTZ) Cameras
- Dome Cameras
- IP Videophones
- Thin Clients
- High Power Ethernet End Terminals
Form Factor: Rack Mountable
Manufacturer: Microchip Technology Inc.
Product Model: PD-9506GC/AC
Product Name: PD-9506GC/AC PoE Injector
Manufacturer Part Number: PD-9506GC/AC-US
Manufacturer Website Address: http://www.microchip.com
Limited Warranty: Lifetime
Weight (Approximate): 9.26 lb
