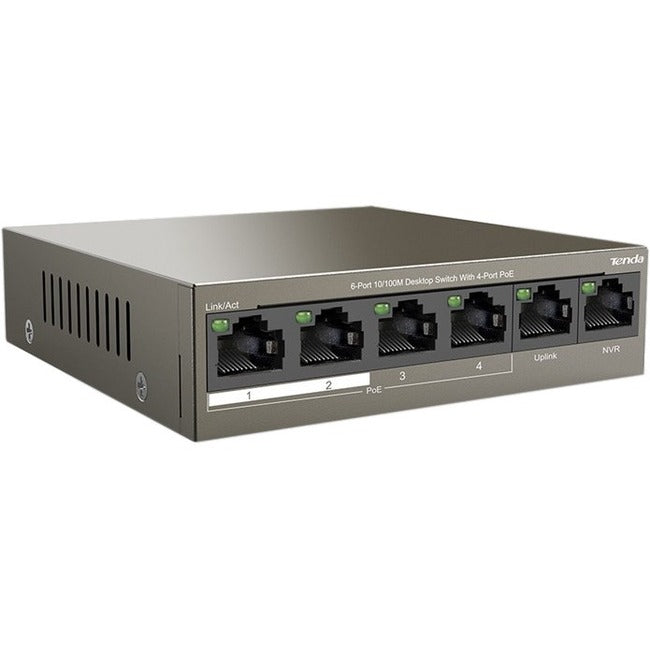

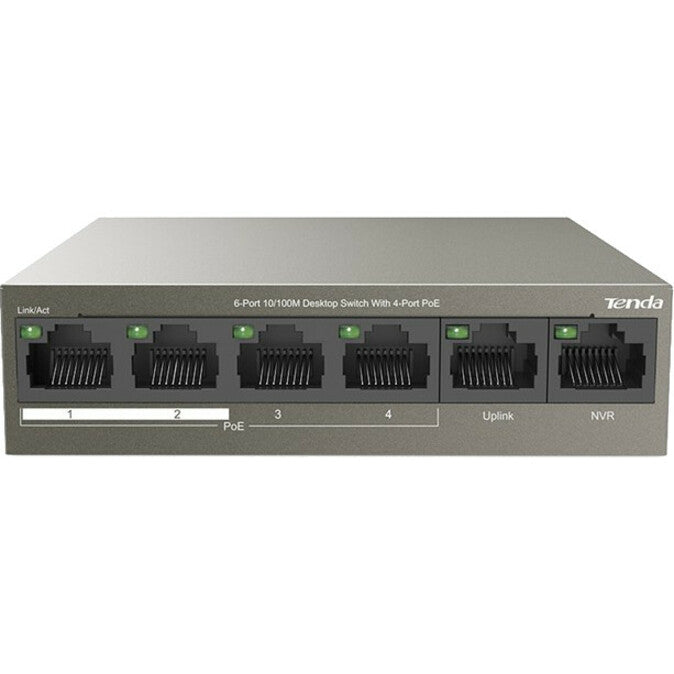

Tenda 6-Port 10/100M Desktop Switch with 4-Port PoE
TEF1106P-4-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. Featured with extend mode and QoS function, TEF1106P-4-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.
TEF1106P-4-63W 6-Port 10/100M Desktop Switch with 4-Port PoE
Dedicated for Surveillance With Uplink & NVR double uplink ports and QoS
Dual uplink port, more convenient for connecting Router and NVR
TEF1106P-4-63W is an unmanaged PoE switch with 2 uplink ports that can connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. TEF1106P-4-63W is an ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.

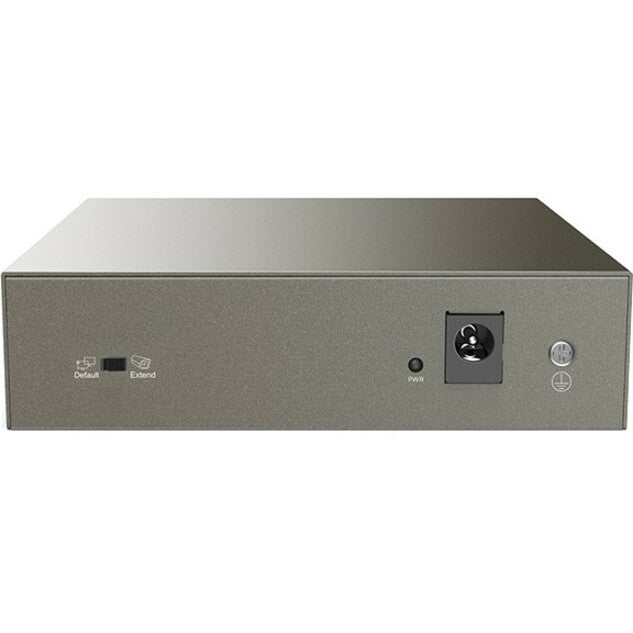

Up to 250 meters long distance transmission under the Extend Mode?beyond hundred meters transfer limitation
Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1106P-4-63W can support 250 meters data transmission in the Extend mode, which can save the cost of your project with less devices used.

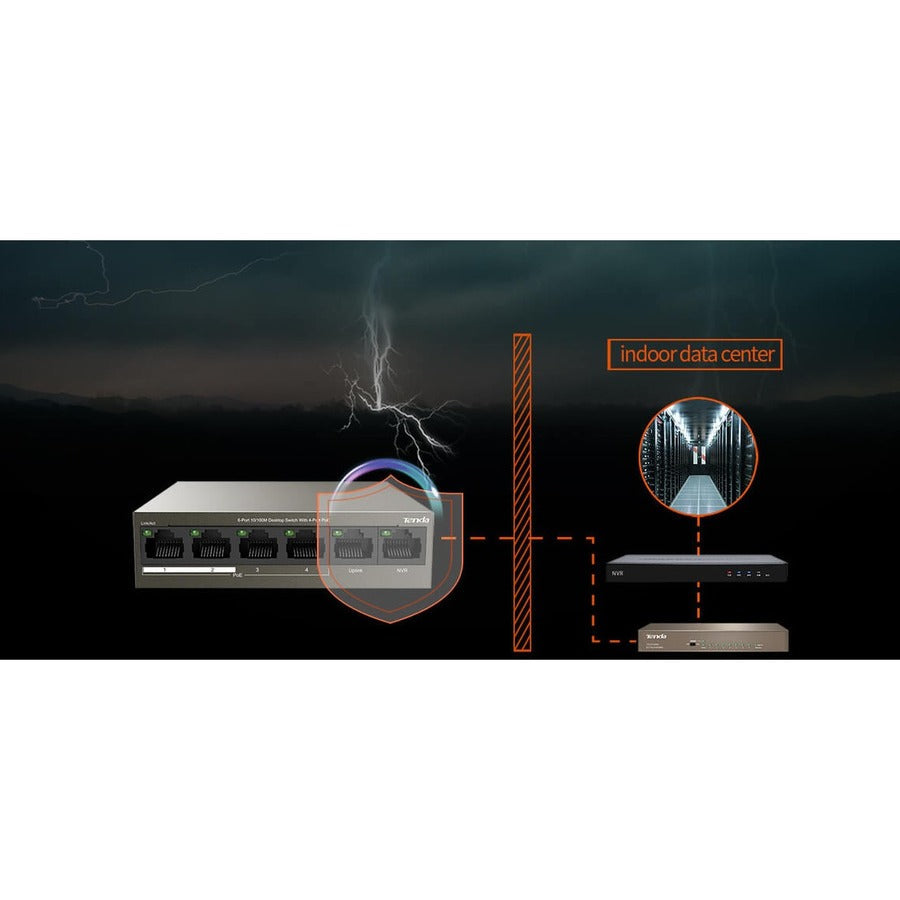

Excellent lightning Protection
TEF1106P-4-63W supports professional lightning protection of 6KV for uplink ports & 4KV for power, which can protect the switch from the inductive lightning strike coming from the thunderstorm weather.

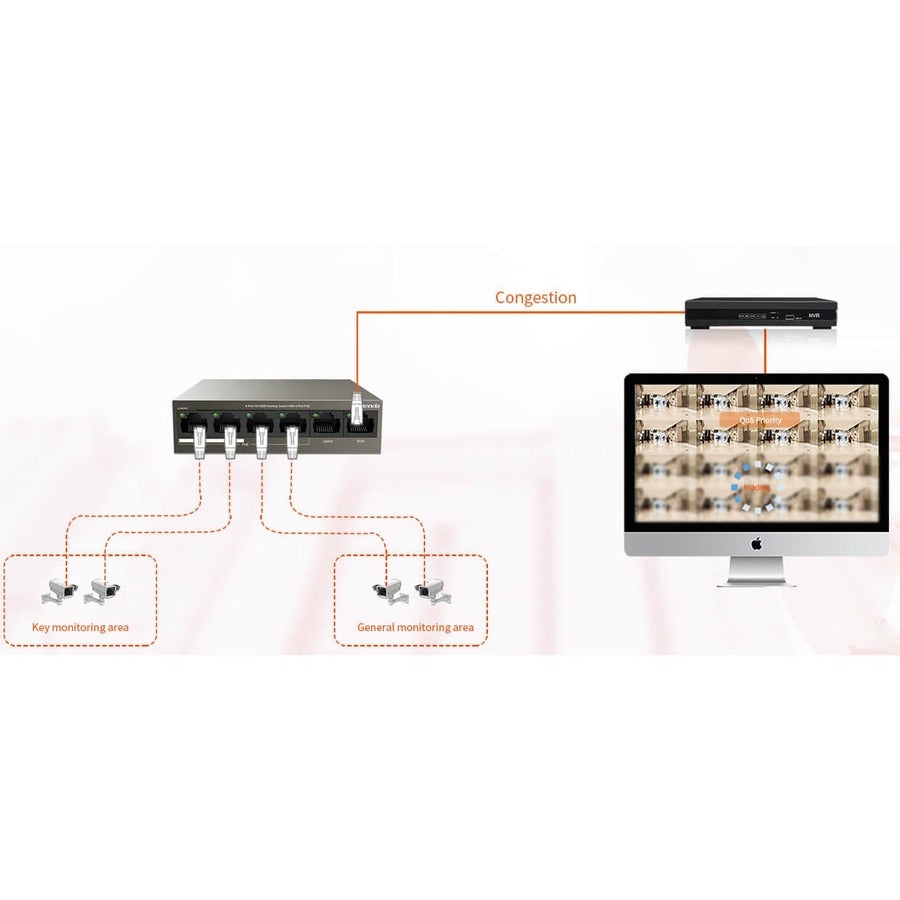

QoS Priority design makes the key video data to be prioritized
1-2 ports support QoS Priority function, and it will prioritize them when meeting network congestion, which can ensure the network stable and fluent transmission of the surveillance video without breaking up.
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 6 ports
- Cascade to other network devices through the uplink port to expand your local area network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- No need to deal with power supply issues, the switch comes with a separate AC adapter to power up the unit
- The desktop installation makes it ideal for deployments outside the wiring closet
Product Type: Ethernet Switch
Brand Name: Tenda
Form Factor: Wall Mountable
Manufacturer: Tenda Technology Inc
Product Model: TEF1106P-4-63W
Product Name: 6-Port 10/100M Desktop Switch with 4-Port PoE
Manufacturer Part Number: TEF1106P-4-63W
Manufacturer Website Address: http://www.tendaus.com
