The TRENDNET 6-Port Multi-Gig Switch is perfect for businesses, home offices, and network administrators who need high-performance ethernet switching with advanced 10G and 2.5G capabilities. Our solution delivers:
-
Multi-gigabit ethernet switch that supports both 10G and 2.5G connections
-
Fanless design for silent operation in noise-sensitive environments
-
High switching capacity ensuring maximum network performance and throughput
-
Compact 6-port configuration perfect for small to medium network deployments
Key Features
-
10G ethernet ports to deliver ultra-high-speed network connectivity
-
2.5G multi-gigabit ports for enhanced performance over existing cabling
-
Fanless operation providing silent, reliable switching performance
-
Advanced switching capacity supporting high-bandwidth applications
-
Plug-and-play setup for instant network deployment
-
Energy-efficient design minimizing power consumption
-
Rack-mountable form factor for professional installations
-
Auto-negotiation supporting multiple speed configurations
Technical Specifications
| Manufacturer |
TRENDNET |
| Model Number |
6-Port Multi-Gig Switch |
| Type |
Multi-Gigabit Ethernet Switch |
| Port Configuration |
6 ports total |
| 10G Ports |
2 x 10GBASE-T ports |
| 2.5G Ports |
4 x 2.5GBASE-T ports |
| Switching Capacity |
60 Gbps |
| Forwarding Rate |
44.6 Mpps |
| MAC Address Table |
16K entries |
| Buffer Memory |
2 MB |
| Cooling |
Fanless passive cooling |
| Power Consumption |
35W maximum |
| Power Supply |
External 48V DC adapter |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Humidity |
10% to 90% non-condensing |
| Dimensions |
11" x 7" x 1.7" (WxDxH) |
| Weight |
2.2 lbs (1 kg) |
| Mounting |
Desktop or rack-mount ready |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3an, 802.3bz |
| Compatible Systems |
Enterprise networks, data centers, high-performance workstations, server rack networks |
Frequently Asked Questions
Q: What are the benefits of multi-gigabit ethernet switching?

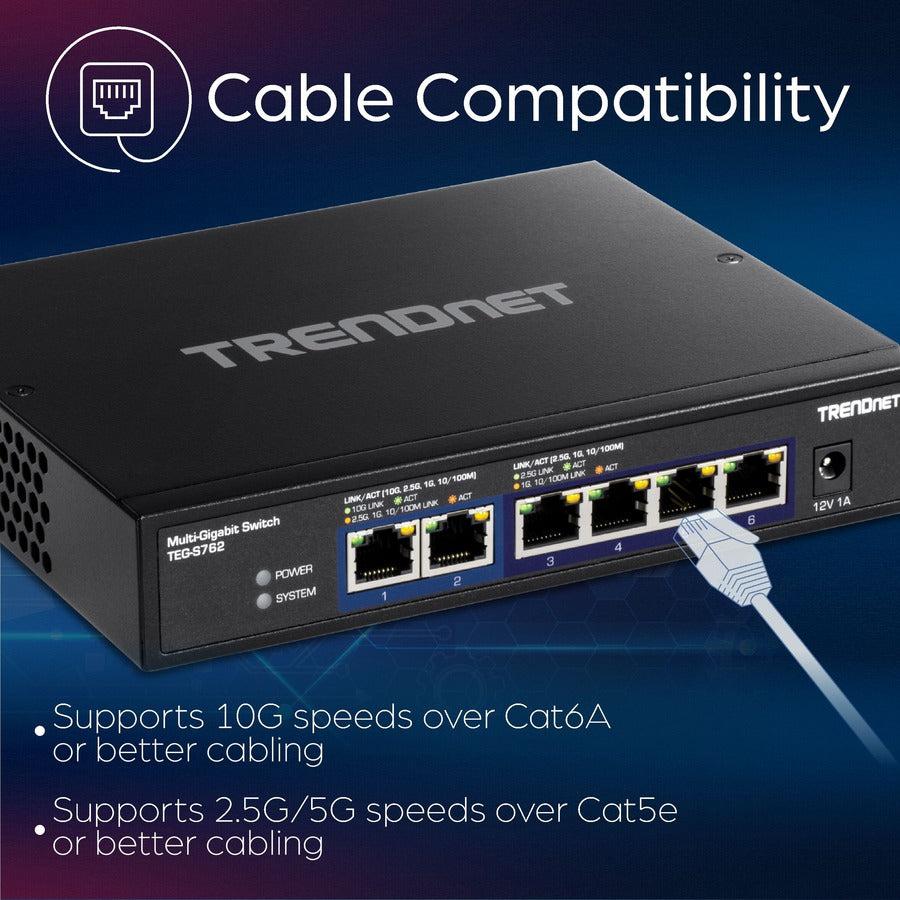

A: This TRENDNET multi-gig switch supports both 10G and 2.5G ethernet connections, allowing you to maximize network performance beyond traditional 1 Gigabit limitations. The 2.5G ports provide enhanced performance over existing Cat5e/Cat6 cabling, while 10G ports deliver ultimate bandwidth for high-performance applications and server connections.
Q: Why is the fanless design important for network switches?
A: The fanless design eliminates mechanical noise, making this switch perfect for office environments, home networks, and noise-sensitive locations. Additionally, fanless operation reduces potential failure points, increases reliability, and extends the switch's operational lifespan while maintaining optimal cooling through passive heat dissipation.
Q: What switching capacity does this 6-port switch provide?
A: With 60 Gbps switching capacity and 44.6 Mpps forwarding rate, this high-performance ethernet switch easily handles demanding network traffic from multiple high-speed connections simultaneously. This ensures no bottlenecks when all ports are operating at maximum speeds, making it ideal for bandwidth-intensive applications.
Q: Can this switch be used in server rack installations?
A: Yes, this server rack network switch is designed for both desktop and rack-mount installations. Its compact form factor and professional design make it perfect for enterprise deployments, data center environments, and structured network installations requiring reliable multi-gigabit performance.
Q: What types of applications benefit most from 10G connectivity?
A: The 10G ethernet ports are ideal for high-bandwidth applications including video editing workstations, server connections, network-attached storage (NAS), virtualization environments, and backbone connections between network segments. These ports ensure maximum performance for mission-critical applications requiring ultra-fast data transfer.
Q: How does auto-negotiation work with different speed devices?
A: The switch automatically detects and configures the optimal speed for each connected device. 2.5G ports can operate at 100M, 1G, or 2.5G speeds, while 10G ports support 100M, 1G, 2.5G, 5G, and 10G speeds, ensuring backward compatibility with existing network equipment while providing upgrade paths for enhanced performance.
Q: What power requirements does this fanless switch have?
A: The switch operates on an external 48V DC adapter with maximum power consumption of 35W. This energy-efficient design reduces operating costs while providing reliable power for all ports operating at maximum capacity, making it suitable for always-on network environments.

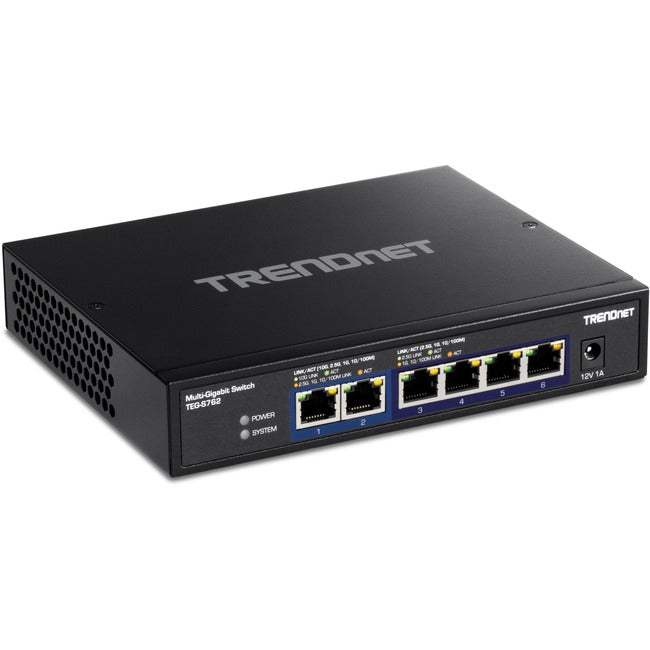

TRENDNET 6-Port Multi-Gig Switch with 10G and 2.5G ports, fanless design, and high switching capacity for enterprise networking applications.
