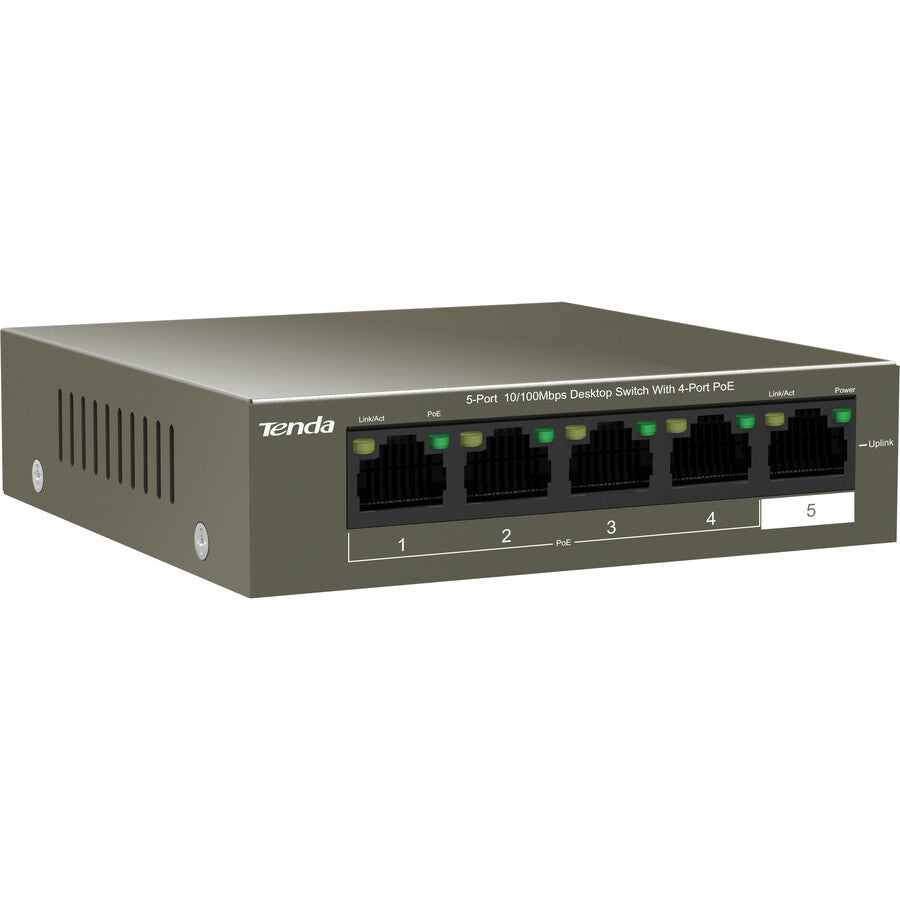

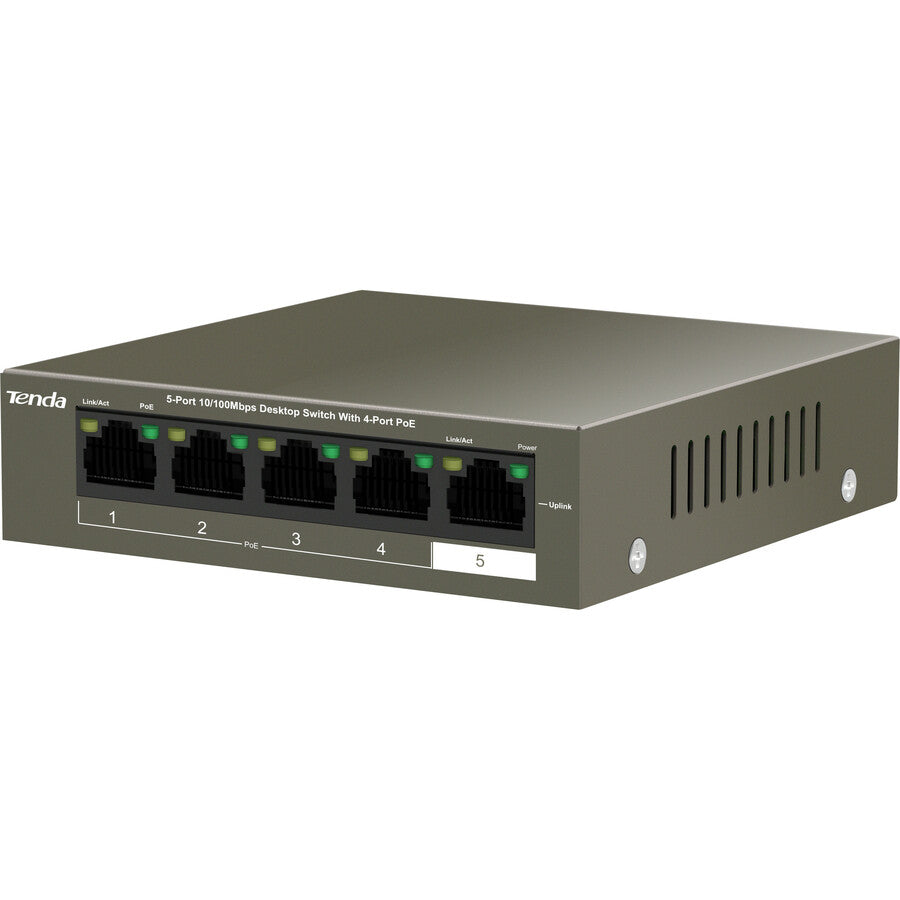

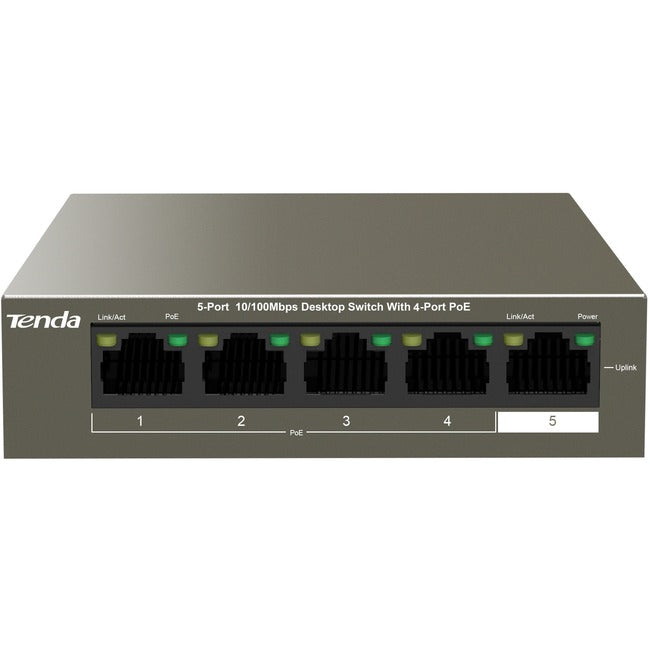

Tenda 5-Port 10/100Mbps Desktop Switch With 4-Port PoE
Born for WLAN And IP Surveillance
5-Port 10/100Mbps Desktop Switch with 4-Port PoE
6KV Port Lightning Protection
Maximum PoE Output Power 58W
PoE power up to 30W for each PoE port
6KV lighting protection PoE switch is the real monitoring private switch
In the real project, AP or IP cameras are often installed outdoor or the higher position, which is also increases the risk of cameras and PoE switches impact by the lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have the professional lightning protection design -up 6 kv port and power supply thunder prevents , with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence. The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring system or local area network stable, reliable service, protect the images transmission be normal.

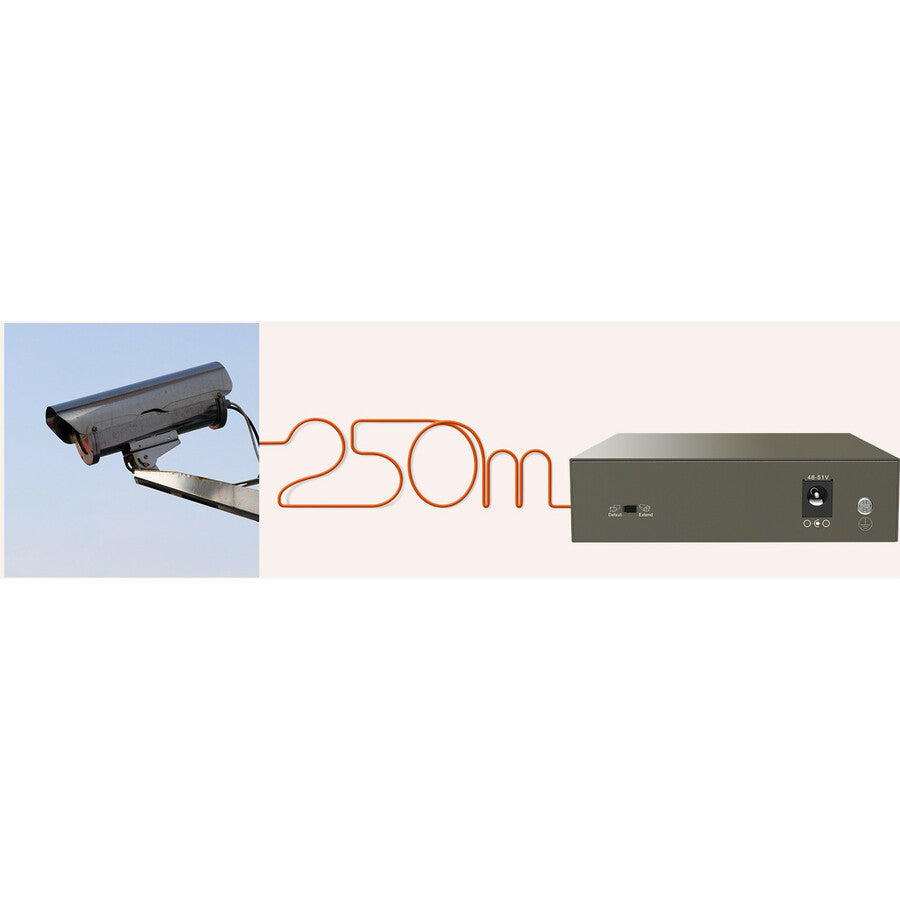

Up to 250 meters long distance transmission
beyond hundred meters transfer limitDue to the complex monitoring environment, when making cabling and networking, it very often to encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some only a few meters, some hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the existing twisted pair hundreds meters transmission limit.
58W PoE power supply simplified wiring
Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30W. The ports can be used to supply power to and exchange data with APs and IP cameras.
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Cascade to other network devices through the uplink port to expand your local area network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- No need to deal with power supply issues, the switch comes with a separate AC adapter to power up the unit
- The desktop installation makes it ideal for deployments outside the wiring closet
Product Type: Ethernet Switch
Brand Name: Tenda
Form Factor: Desktop
Manufacturer: Tenda Technology Inc
Product Model: TEF1105P-4-63W
Product Name: 5-Port 10/100Mbps Desktop Switch With 4-Port PoE
Manufacturer Part Number: TEF1105P-4-63W
Manufacturer Website Address: http://www.tendaus.com
Weight (Approximate): 4.41 lb
