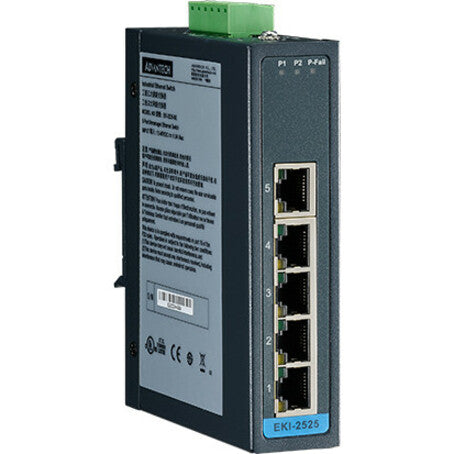

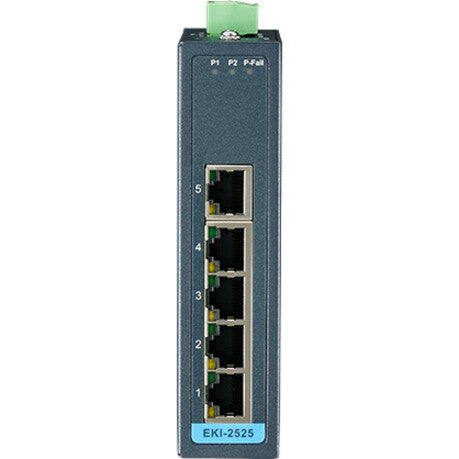

This Advantech EKI-2525-BE unmanaged ethernet switch is perfect for industrial automation and manufacturing environments who need reliable 5-port connectivity in harsh conditions. Our solution delivers:
-
Industrial-grade 10/100Mbps switching for factory floor networks
-
DIN-rail mounting for easy panel and cabinet installation
-
Unmanaged operation for plug-and-play simplicity
-
Ruggedized design for demanding industrial environments
Key Features
-
5 x 10/100Mbps Fast Ethernet ports for device connectivity
-
DIN-rail mounting bracket included for panel installation
- Optimized for industrial automation networks and control systems
- Consistent plug-and-play operation with no configuration required
-
Wide operating temperature range from -10°C to 60°C
-
Compact form factor for space-constrained installations
Technical Specifications
| Manufacturer |
Advantech (B+B SmartWorx) |
| Model Number |
EKI-2525-BE |
| Type |
5-Port Industrial Unmanaged Ethernet Switch |
| Port Configuration |
5 x 10/100BASE-TX RJ45 ports |
| Data Rate |
10/100Mbps auto-negotiation |
| Switch Fabric |
1 Gbps switching capacity |
| MAC Address Table |
1K MAC addresses |
| Operating Temperature |
-10°C to 60°C |
| Power Consumption |
2.4W maximum |
| Power Input |
12-48VDC |
| Mounting |
DIN-rail or wall mount |
| Dimensions |
105 x 75 x 26mm |
Frequently Asked Questions
Q: What makes this 5-port switch ideal for industrial environments?
A: The EKI-2525-BE features ruggedized construction with wide temperature operation (-10°C to 60°C) and DIN-rail mounting, making it perfect for factory automation, process control, and harsh industrial networking applications.
Q: Can this unmanaged ethernet switch simplify network deployment?
A: Yes, it's engineered for plug-and-play operation with auto-negotiation and auto-MDI/MDIX on all ports, eliminating the need for configuration while providing reliable 10/100Mbps connectivity for industrial devices.
Q: How does the DIN-rail mounting benefit installation?
A: Standard DIN-rail compatibility allows easy mounting in control panels and electrical cabinets — perfect for industrial automation systems requiring organized, space-efficient networking solutions.
Q: What power options does this industrial switch support?
A: The switch accepts 12-48VDC input power with low 2.4W consumption, making it compatible with standard industrial power supplies and ideal for energy-efficient automation networks.
Advantech EKI-2525-BE 5-port industrial unmanaged ethernet switch with DIN-rail mount. 10/100Mbps for automation networks.
