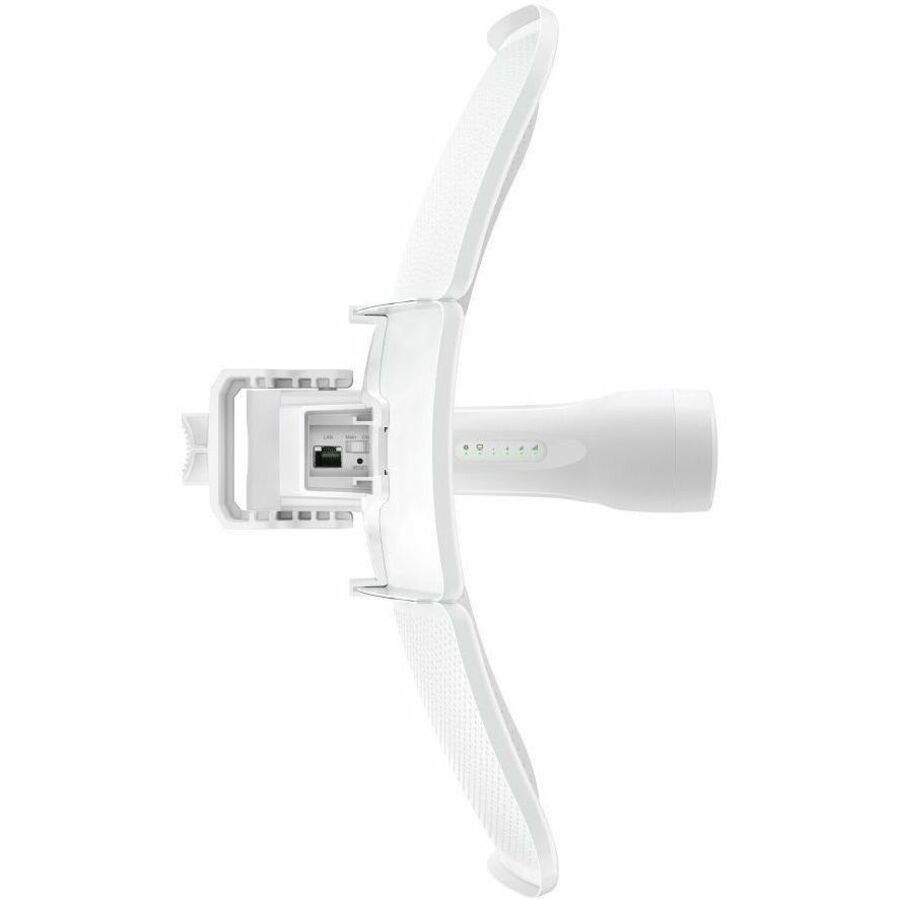

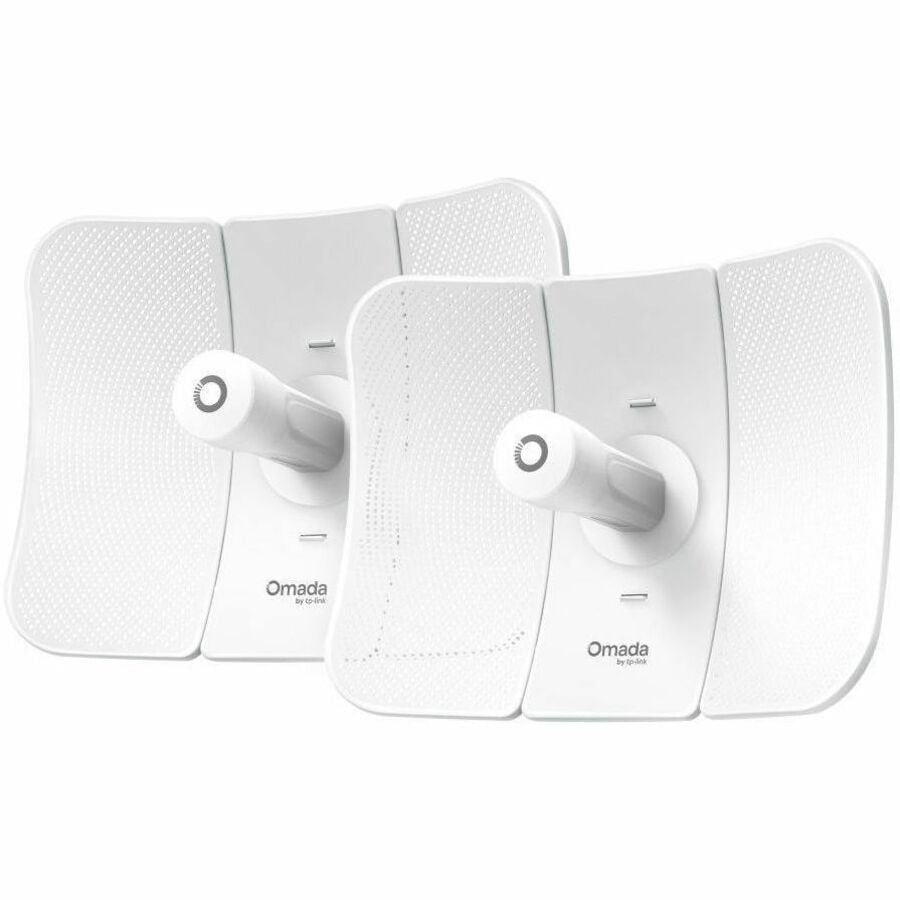

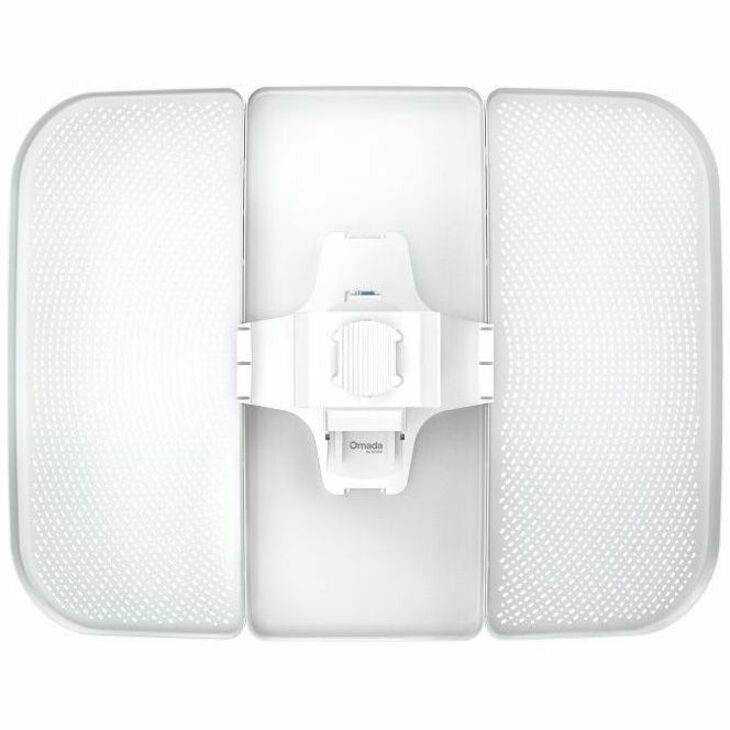

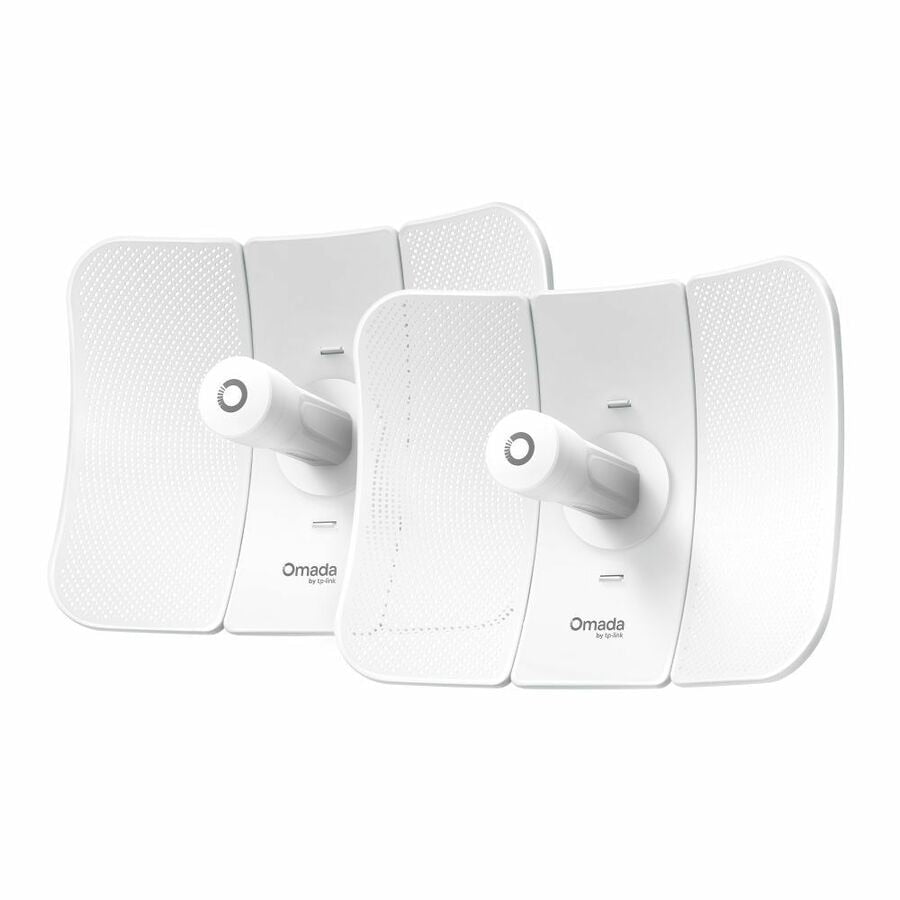

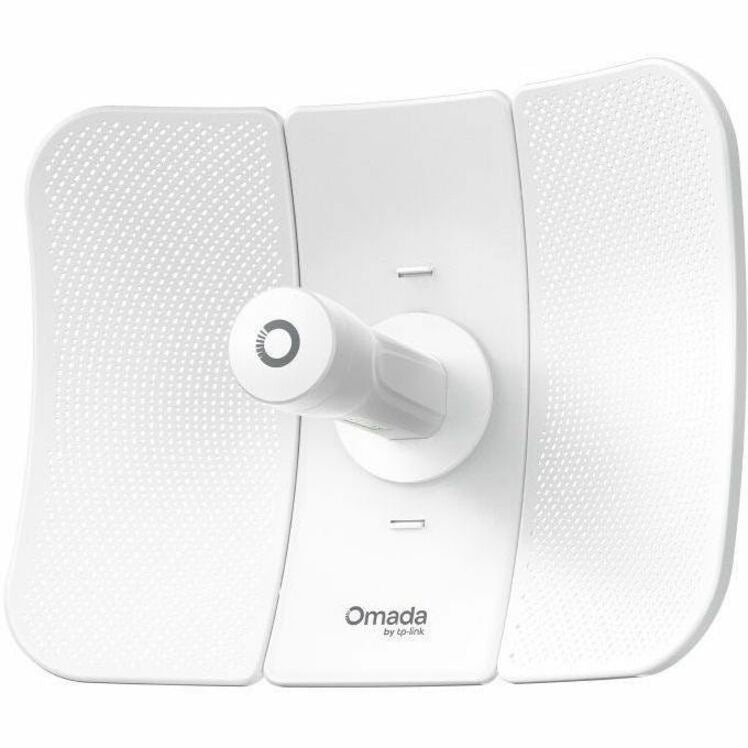

The TP-LINK 5GHz Ultra-Range Wireless Bridge is a rugged outdoor backhaul solution designed for enterprise deployments. It provides a high-speed, reliable point-to-point link between buildings or remote sites, with centralized management through Omada for a streamlined network.
-
Frequency: 5 GHz wireless backhaul with up to 867 Mbps wireless speed
-
Ethernet Port: 1 Gigabit RJ45 port for fast wired integration
-
Antenna: 23 dBi dish antenna enabling long-range links up to 15 km with clear line of sight
-
Durability: IP65 weatherproof enclosure and 6 kV lightning protection for harsh outdoor conditions
-
Power options: Supports 24V Passive PoE and 802.3af PoE for flexible installation
-
Management: Compatible with Omada SDN Controller and Omada App for centralized network control
-
Easy setup: Auto-pairing for quick, stable point-to-point alignment
This wireless bridge delivers enterprise-grade backhaul without compromising speed or reliability. It’s ideal for campuses, multi-building facilities, and outdoor networks that require a secure, stable link with straightforward management. Built to withstand outdoor environments, it keeps critical connections up under varying weather, with Omada integration for visibility and control from a single pane of glass.
Specs
-
Frequency: 5 GHz
-
Speed: 867 Mbps
-
Port: 1 Gigabit RJ45
-
Antenna Gain: 23 dBi
-
Range: Up to 15 km
-
Power: 24V Passive PoE / 802.3af PoE
-
Weatherproof: IP65
-
Lightning Protection: 6KV
FAQs
-
Q: What is the maximum range of this wireless bridge?
A: Up to 15 kilometers with clear line of sight.
-
Q: Is it suitable for outdoor installation?
A: Yes, it features IP65 weatherproofing and 6 kV lightning protection.
-
Q: Can it be managed remotely?
A: Yes, via the Omada SDN Controller and Omada App.
-
Q: What power options does it support?
A: It supports 24V Passive PoE and 802.3af PoE.
-
Q: Does it support automatic pairing?
A: Yes, it includes auto-pairing for easy setup.
