| Chipset |
|
Qualcomm QCA9563+QCA9886+QCA8334 |
| Standard |
|
802.11ac/a/n, MU-MIMO Technology |
| Memory |
|
128MB DDR2 RAM |
| Interface |
|
1 x 10/100/1000Mbps RJ45 WAN Port, 1 x 48V PoE Input, 1 x 10/100/1000Mbps RJ45 LAN Port, 1 x Reset Button, 1 x DC Jack, 1 x AP / Repeater Operation mode switch |
| Antenna |
|
Built in 14dBi MIMO Panel Antenna |
| Power Supply |
|
802.3at 48V PoE or DC12V 1.5A |
| RF Data | Frequency |
|
5GHz: 802.11a/ac, 5GHz: 4920~5920MHz |
| RF Data | Throughput |
|
867Mbps |
| RF Power |
|
802.11ac 20MHz BW, MCS0 maximum Tx Power of 24dBm +- 2dBm per chain, 802.11ac 20MHz BW, MCS7 maximum Tx Power of 20dBm +- 2dBm per chain, 802.11ac 20MHz BW, MCS9 maximum Tx Power of 19dBm +- 2dBm per chain, 802.11ac 40MHz BW, MCS0 maximum Tx Power of 24dBm +- 2dBm per chain, 802.11ac 40MHz BW, MCS7 maximum Tx Power of 20dBm +- 2dBm per chain, 802.11ac 80MHz BW, MCS9 maximum Tx Power of 19dBm +- 2dBm per chain, 802.11ac 80MHz BW, MCS0 maximum Tx Power of 24dBm +- 2dBm per chain, 802.11ac 80MHz BW, MCS7 maximum Tx Power of 20dBm +- 2dBm per chain, 802.11ac 40MHz BW, MCS9 maximum Tx Power of 19dBm +- 2dBm per chain |
| Receiving Sensitivity |
|
802.11ac Rx Sensitivity 20MHz BW, MCS9 -62dBm, MCS7 -67 dBm, MCS0 -89 dBm, 802.11ac Rx Sensitivity 40MHz BW, MCS9 -61dBm, MCS7 -66 dBm, MCS0 -88 dBm, 802.11ac Rx Sensitivity 80MHz BW, MCS9 -60dBm, MCS7 -65 dBm, MCS0 -87 dBm |
| EVM |
|
802.11a: ≤-25dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB |
| PPM |
|
±20ppm |
| Package Contents |
|

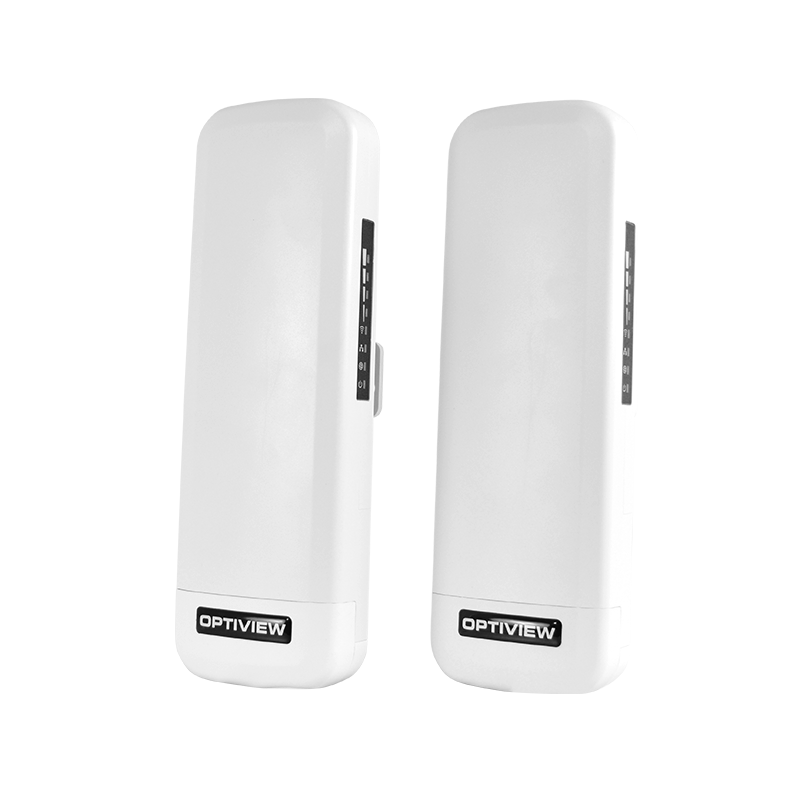

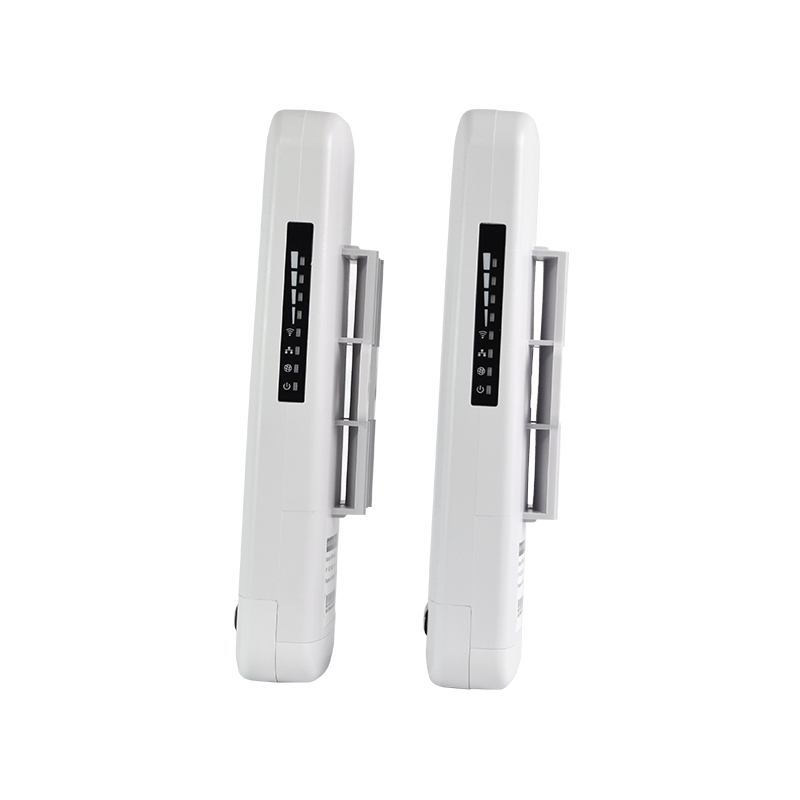

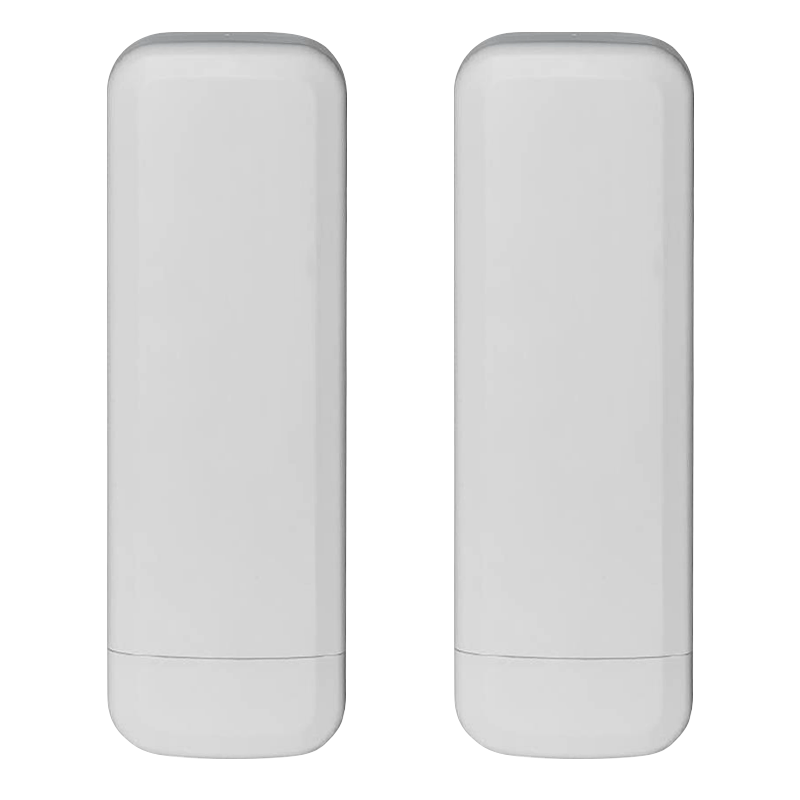

Pair of 867Mbps Outdoor PTP wireless access points / bridges, pole mounting bands, LAN patch cables |
| Operating Temperature |
|
-30~45 ℃ |
| Storage Temperature |
|
-40~70 ℃ Humidity: 5%~95% non-condensing |
