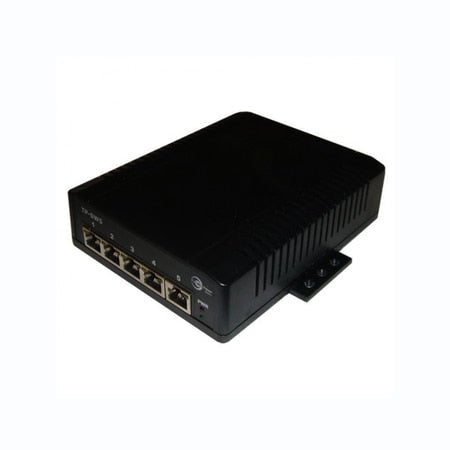

This industrial PoE switch is perfect for industrial automation engineers, security installers, and network administrators who need reliable 5 port gigabit ethernet with high power delivery. Our solution delivers:
-
70W total power output for demanding PoE+ devices
-
Power over ethernet switch functionality with 4 PoE ports + 1 uplink
-
Unmanaged network switch simplicity for plug-and-play operation
-
DIN rail mountable design for industrial installations
Key Features
-
5 port gigabit ethernet with auto-negotiation
- Advanced 70W PoE power budget supporting IEEE 802.3at PoE+
- Industrial-grade unmanaged switch design
-
DIN rail mounting kit included for cabinet installation
- Wide input voltage range 10-36VDC wire terminals
- Rugged construction for harsh industrial environments
Technical Specifications
| Manufacturer |
Tycon Systems |
| Model Number |
TP-SW5G-24 |
| Type |
Industrial PoE Switch |
| Port Count |
5-Port (4x PoE + 1x Uplink) |
| Ethernet Standard |
Gigabit Ethernet 10/100/1000 Mbps |
| PoE Standard |
IEEE 802.3at PoE+ compatible |
| Total Power Budget |
70W maximum output |
| Input Power |
10-36VDC wire terminal input |
| Management |
Unmanaged plug-and-play operation |
| Mounting |
DIN rail mountable with included kit |
Frequently Asked Questions
Q: What devices can this industrial PoE switch power?
A: This industrial PoE switch supports IEEE 802.3at PoE+ devices including IP cameras, wireless access points, VoIP phones, and industrial sensors with up to 70W total power budget.
Q: Is this switch suitable for harsh industrial environments?
A: Yes. The TP-SW5G-24 features rugged construction, wide operating temperature range, and DIN rail mountable design specifically engineered for demanding industrial applications.
Q: Does this require configuration or management?
A: No. This unmanaged network switch provides true plug-and-play operation with auto-negotiation for speed and PoE power delivery, making installation simple and maintenance-free.
Q: What input voltage options are available?
A: The switch accepts 10-36VDC input through wire terminals, providing flexibility for various industrial power systems and battery backup configurations.
