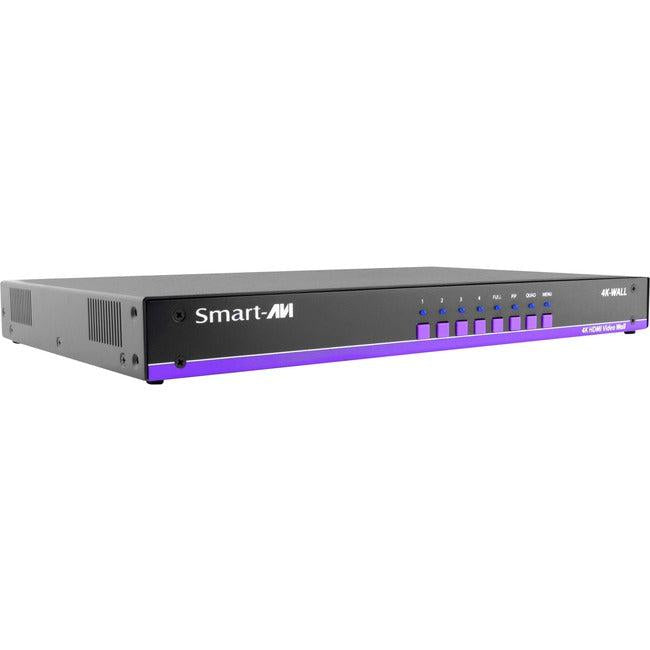

This video wall controller with 4x4 HDMI matrix is perfect for digital signage specialists, AV integrators, and facility managers who need professional 4K resolution display solutions for command centers, retail environments, and corporate presentations. Our solution delivers:
-
4x4 HDMI matrix switching enabling flexible routing of four input sources to four output displays simultaneously
-
4K resolution support ensuring crystal-clear Ultra HD video quality for professional presentation environments
-
Plug-and-play operation providing instant setup without complex configuration or specialized technical expertise
-
Digital signage integration delivering seamless multi-display content management for impactful visual communications
Key Features
-
Video wall controller technology supporting advanced multi-display configurations and seamless content distribution
-
Switch HDMI 4K capability providing high-bandwidth signal routing with full Ultra HD compatibility
- Optimized for digital signage systems with professional-grade reliability and continuous operation capability
- Consistent 4K projector compatibility ensuring seamless integration with projectors and large format displays
-
System digital signage architecture enabling centralized control and management of multiple display zones
Technical Specifications
| Manufacturer |
SMARTAVI |
| Model Number |
SM-4KWL-S |
| Type |
Video Wall Controller |
| Product Series |
4K-Wall |
| Matrix Configuration |
4x4 HDMI matrix switching |
| Resolution Support |
4K Ultra HD (3840x2160) @ 60Hz |
| Input Ports |
4 x HDMI inputs |
| Output Ports |
4 x HDMI outputs |
| HDMI Compliance |
HDMI 2.0, HDCP 2.2 compatible |
| Setup Type |
Plug-and-play operation |
| Control Options |
Front panel buttons, IR remote, RS232 |
| Video Support |
4K@60Hz, 1080p, all standard resolutions |
| Audio Support |
Digital audio pass-through |
| Power Requirements |
External power adapter included |
| Mounting |
Desktop or rack mountable |
| Operating Temperature |
0°C to 50°C (commercial grade) |
| Applications |
Video walls, digital signage, control rooms, retail displays |
| Compatible Systems |
4K displays, projectors, media players, computers, gaming consoles |
Frequently Asked Questions
Q: What makes this video wall controller ideal for 4K applications?
A: This video wall controller supports full 4K resolution at 60Hz with HDMI 2.0 and HDCP 2.2 compliance, ensuring professional-quality Ultra HD video distribution across multiple displays for demanding digital signage and presentation applications.
Q: How does the 4x4 HDMI matrix switching work?
A: The 4x4 HDMI matrix allows any of the four input sources to be routed to any of the four output displays simultaneously, providing flexible content distribution for video walls, multi-zone displays, and complex presentation setups.
Q: Is technical expertise required for installation?
A: No, the plug-and-play design enables instant operation without complex configuration. Simply connect your sources and displays via HDMI cables, and the system automatically detects and optimizes signal routing for immediate use.
Q: Can this controller work with existing digital signage systems?
A: Yes, this digital signage controller integrates seamlessly with existing AV infrastructure, media players, and display management systems, making it ideal for upgrading or expanding current video wall and presentation installations.
