4X4 Matrix - 4 HDMI inputs & 4 HDBaseT outputs extends over CAT5e/6/7 LAN Cable up to 230 feet, plus 4 additional HDMI loop out to connect additional displays near the transmitter or HDMI source via HDMI cable. Perfect professional distribution solution to connect 4K Blu-ray players, game consoles, media players, satellite receivers, PCs, laptops and other HDMI sources
Full Ultra HD Support - 4K @ 60/50Hz @ 12 bit YUV 4:2:0, 4K @ 30Hz 24 bit, 1080p/i @ 60/50Hz, 720p @ 60/50Hz, 576p/i @ 60/50Hz, 480p/i @ 60/50Hz; Supports all Audio formats: Such as LPCM, DTS HD, and Dolby trueHD. HDCP 2.2 Compliant

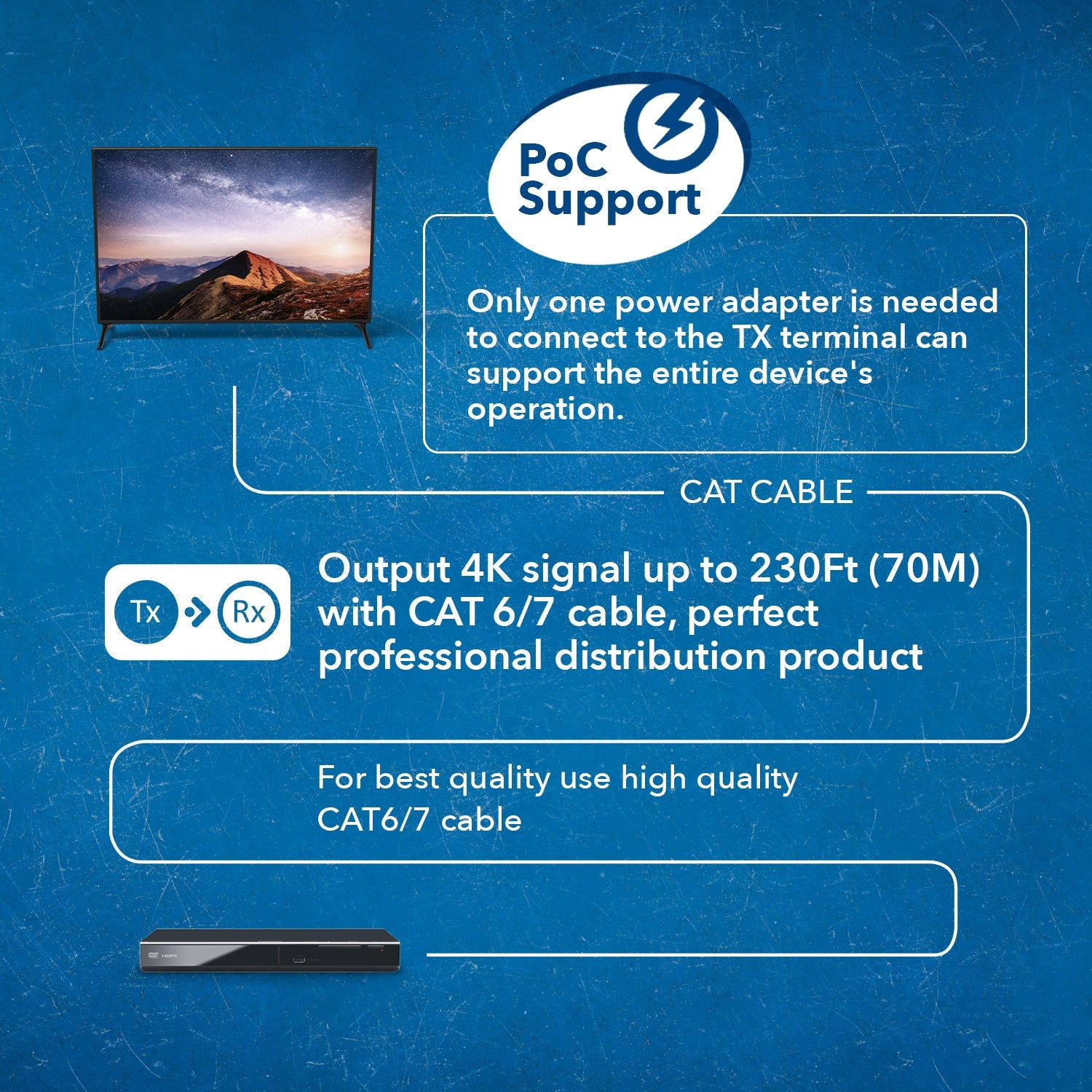

HDBaseT Technology - Uncompressed signal for zero latency and lossless transmission with high quality CAT5e/6/ STP shielded lan cable. Supports POE - Power Over Cable function so you’ll only need to use power adapter on the transmitter (sender) end and connect the receivers directly with HDMI cables

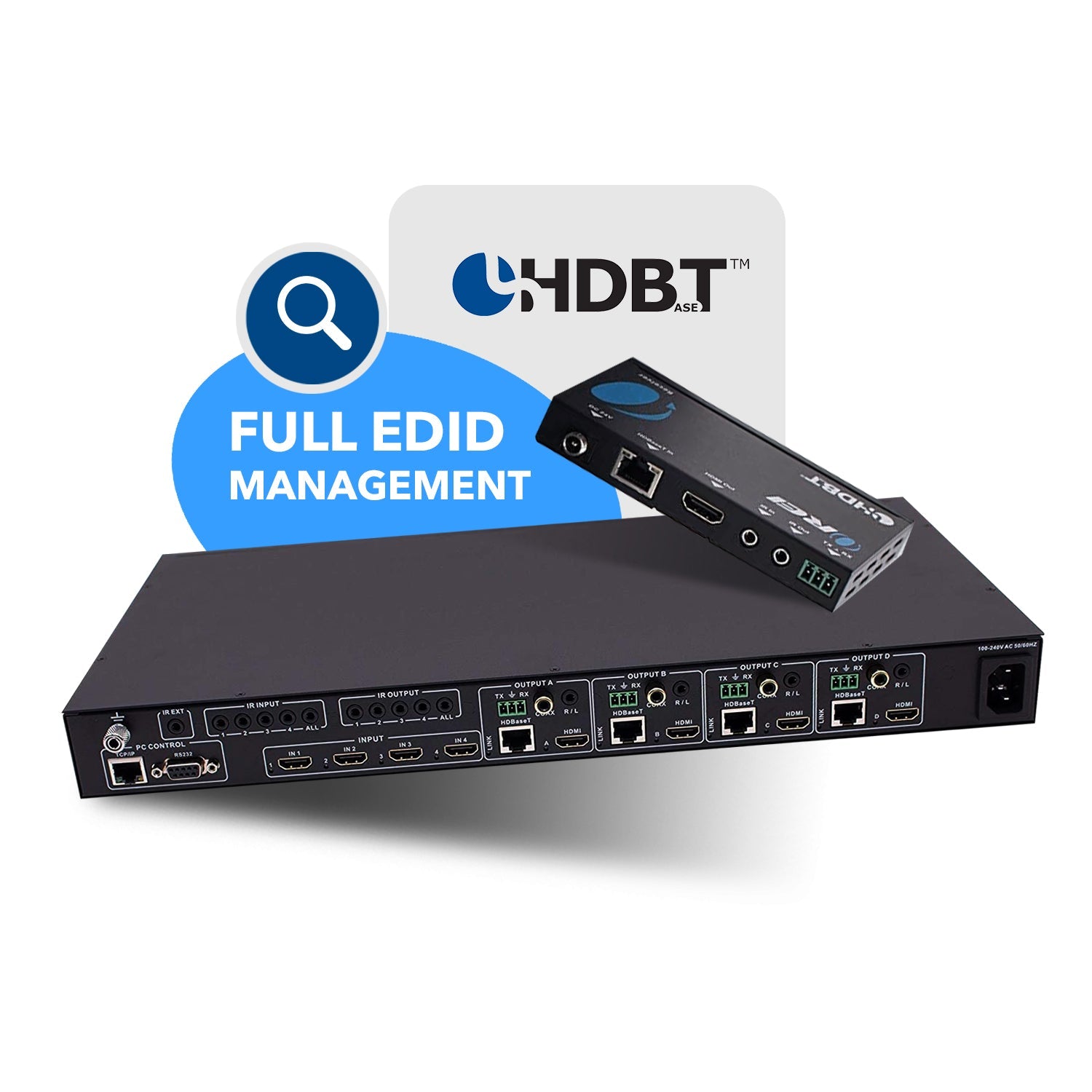

Full Matrix function with additional HDMI loop-out Mode: Local 4 HDMI displays along with 4 HDBaseT extended remote displays. Easily control which HDMI source is viewed at which of the displays. EDID Management: Copy the EDID settings from any of your HDMI displays or choose from a wide selection of pre-programmed EDID settings set within the Matrix. TCP IP and RS-232 Control. Bi-directional IR Support, Coaxial Digital Audio Out & L/R 3.mm Audio output

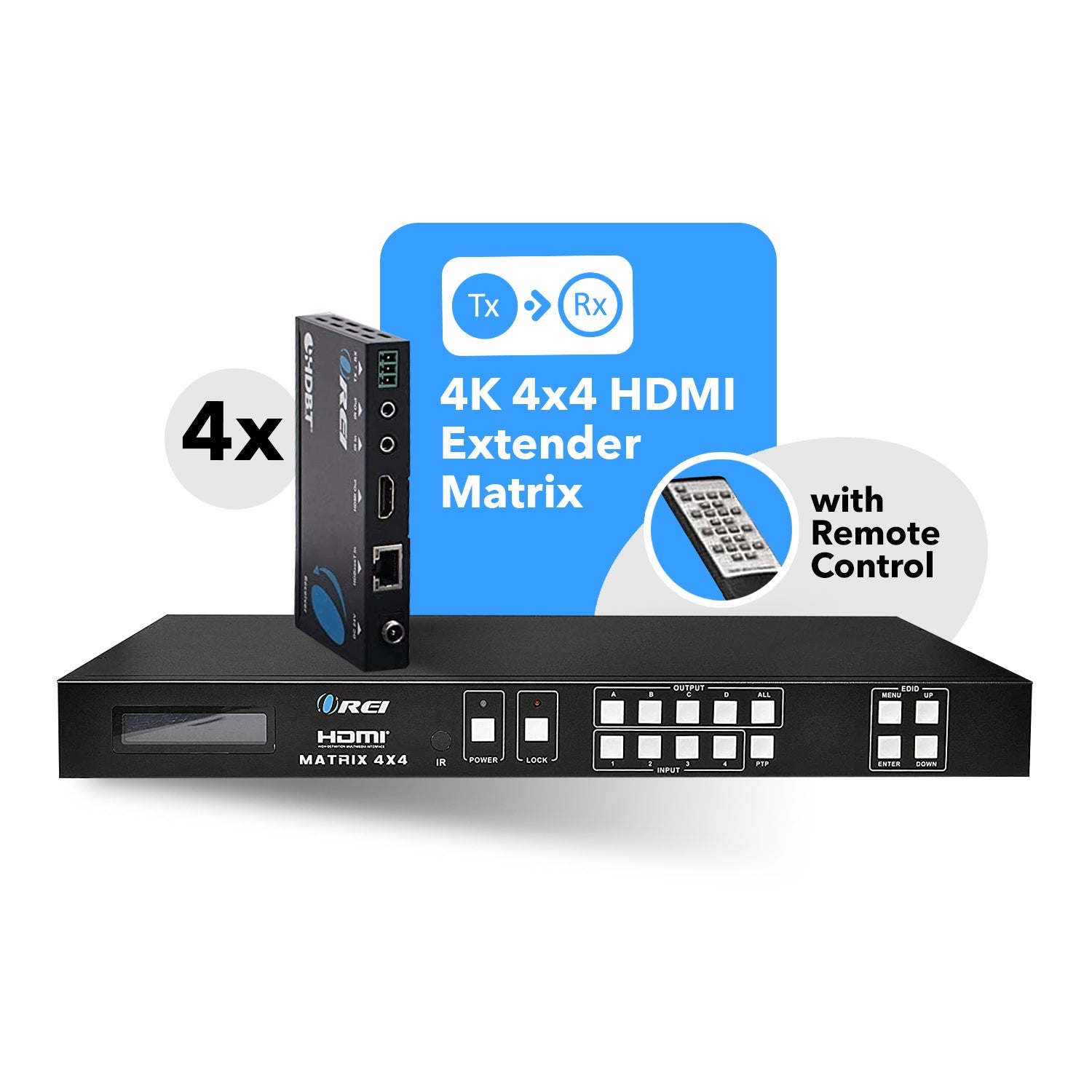

Full OREI Support & 1 Year Warranty; Product Includes: Instructions Manual, 1x HDMI Extender Matrix Transmitter, 4x HDMI Receivers, 1x Power Adapter, 5x IR-Kit, 1x HDMI Matrix Remote, 10x Mounting Ears, 1x RS-232 Cable
This unit requires only one power adapter to work

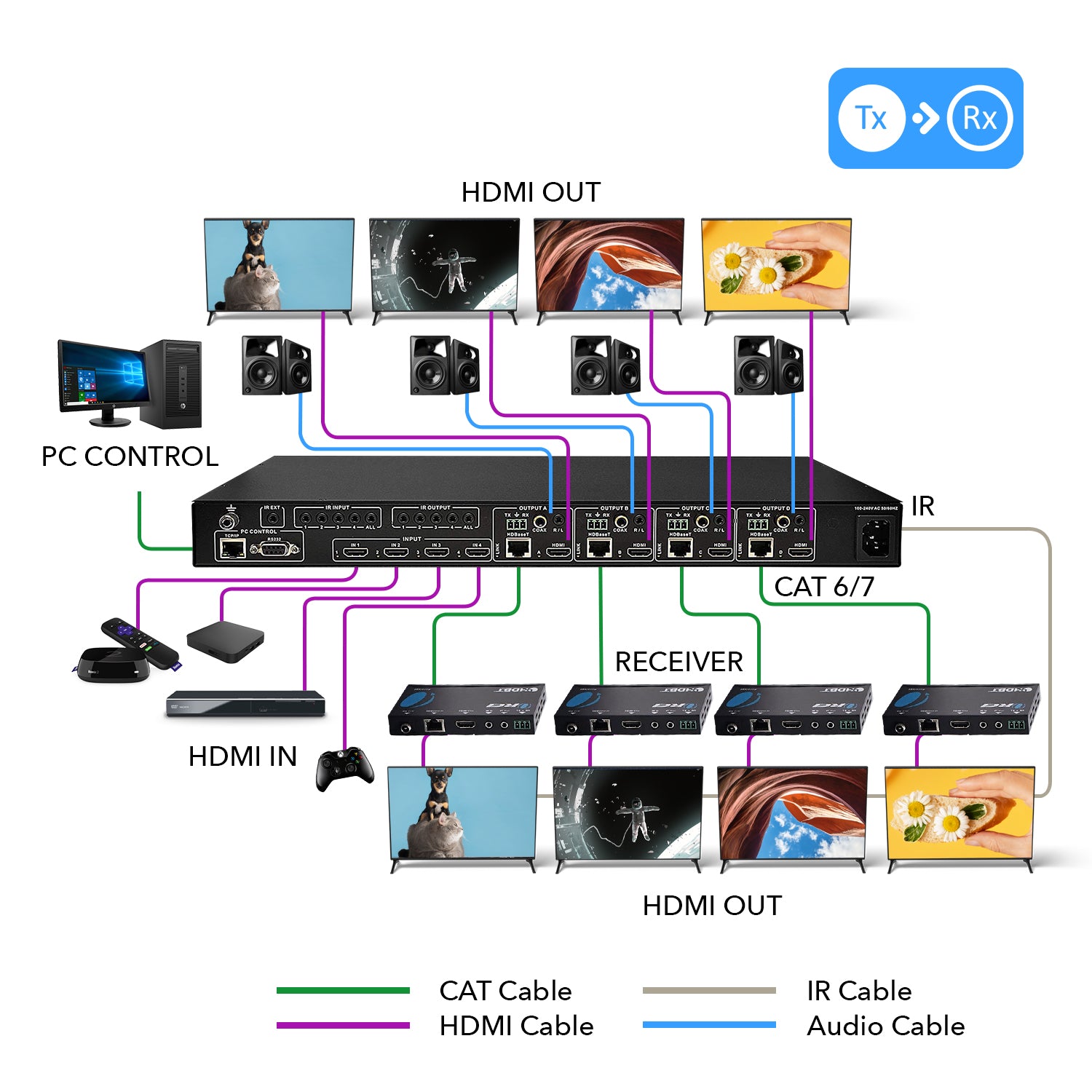

Few sample applications:

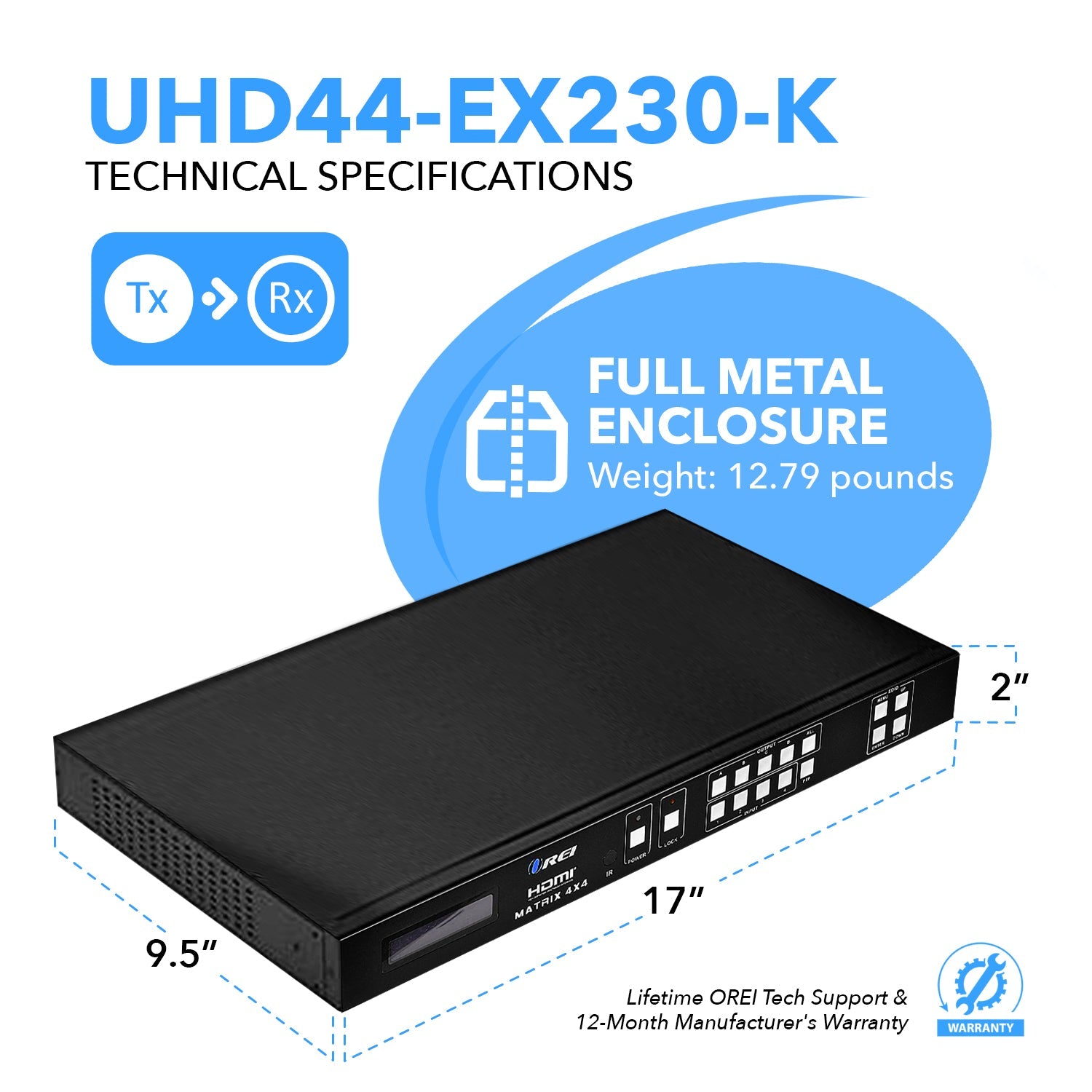

The OREI UHD44-EX230-K HDMI HDBaseT 4x4 HDMI Matrix with simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources to up to four displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a HDBaseT output over a cat5e/cat6 cable which attaches to an additional receiver that converts the output to HDMI.
This matrix switch supports the transmission of video (resolutions up to 4K @ 60Hz YUV 4:2:0) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The extended connection over lan cable can be up to 230 ft for multi-room connectivity for each of the receivers. It also supports bi-directional IR control to send IR signals from the displays to the source or from the source to the displays. RS-232 command prompt control and TCP/IP control to send commands using a PC. It also features Digital coaxial audio output and analog L/R 3.5mm output for each of the four outputs. Full EDID management: Copy the EDID settings from any of your HDMI displays or choose from a wide selection of pre-programmed EDID settings set within the Matrix.
This is a great solution for multimedia setup in an environment with multiple displays such as conference rooms, sports bars, schools, news network rooms and more.
[tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
4×HDMI
5×IR Receiver
1×RS-232
1xRJ-45(Control)
4x RS232
OUTPUT PORTS:
4×CAT5e/6/7
5×IR Blaster
4×HDMI
Receiver:
INPUT PORTS:
1x HDBaseT In
1x IR In
1xRS232
OUTPUT PORTS:
1x HDMI Out
1x IR Out
COMPLIANCES
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
RJ-45 CONNECTOR Type
WE/SS 8P8C
POWER
Power Consumption (Max):
50W, 0.5w (Standby)
Power Supply:
AC Power Supply (US/EU standards, CE/FCC/UL certified)
PHYSICAL PROPERTIES
Color:
Black
Housing:
Metal
PACKAGE CONTENTS

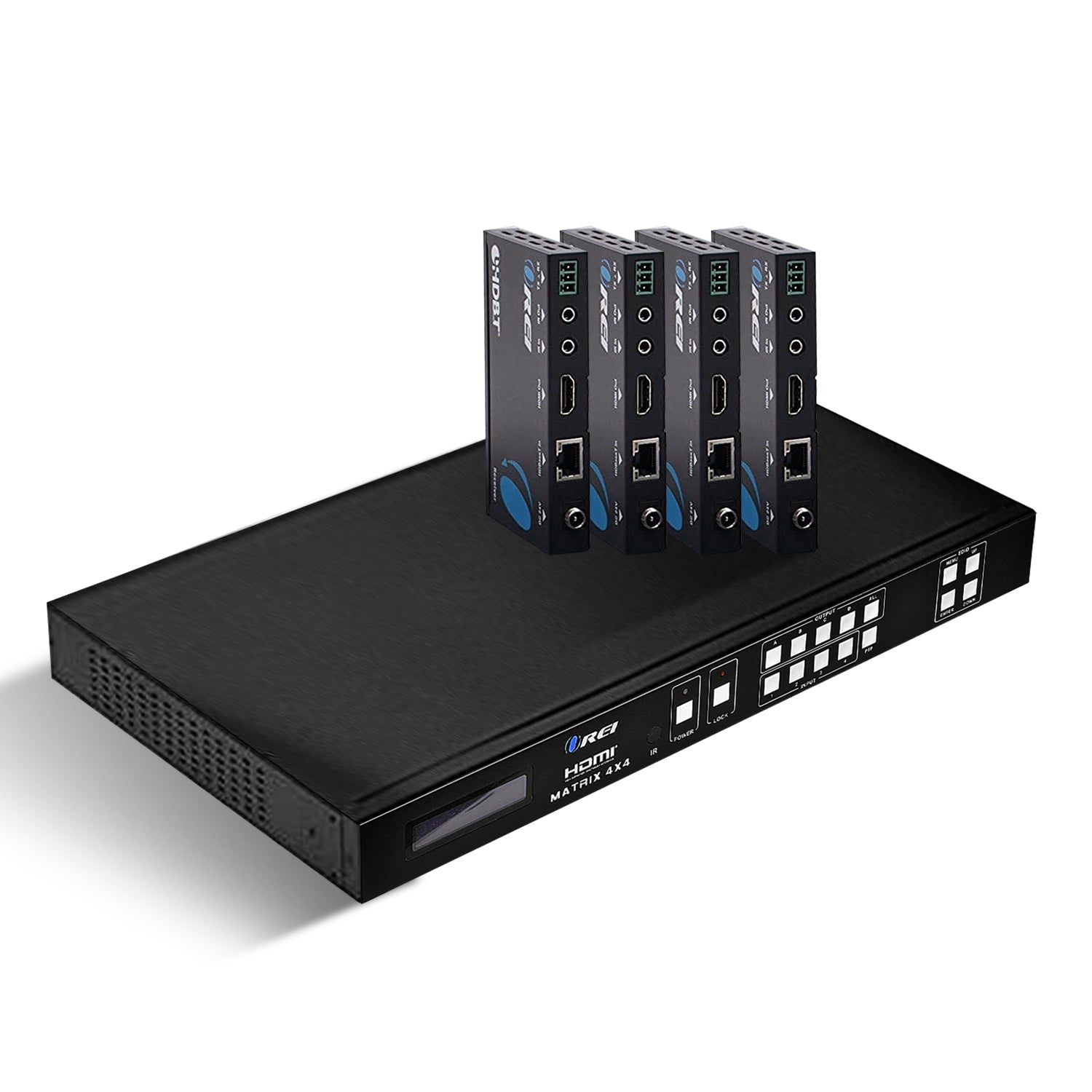

1x HDBaseT HDMI Transmitter
4x HDBaseT Receiver
1x AC power cable
5x Wideband IR Tx cable
6x Wideband IR Rx cable
1x HDMI Matrix IR Remote
2x Mounting ears(Matrix)
8x Mounting ears(Receiver)
1x RS-232 cable
1x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
Here's a quick overview of the IR connection on our extenders: https://www.youtube.com/watch?v=95f7sFudpSg&t=10s
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
