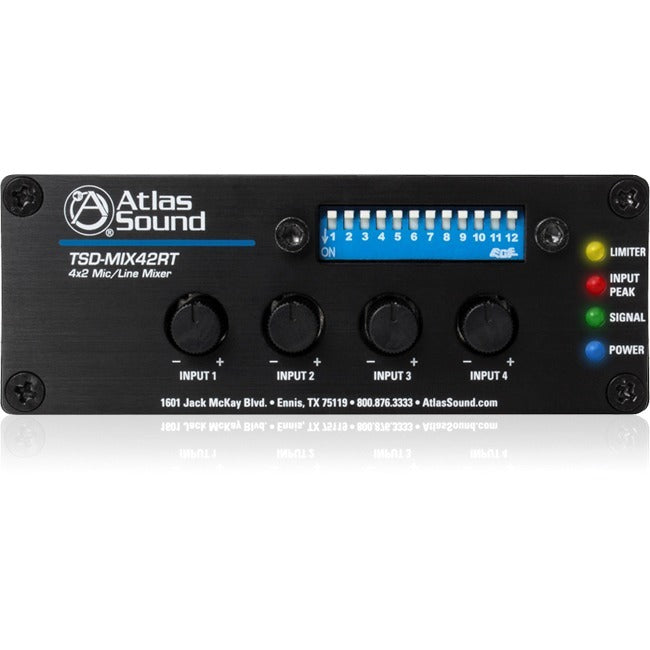

Atlas Sound 4x2 Mic/Line Mixer with Priority Sense and Remote Control
The AtlasIED TSD-MIX42RT 4x2 mic/line mixer is ideal for applications where paging, priority music override and/or remote input selection with level control are required. Use alone or in conjunction with amplifiers in meeting rooms, digital signage, luxury suites, and other applications requiring versatile, stereo or mono multi source mix control.

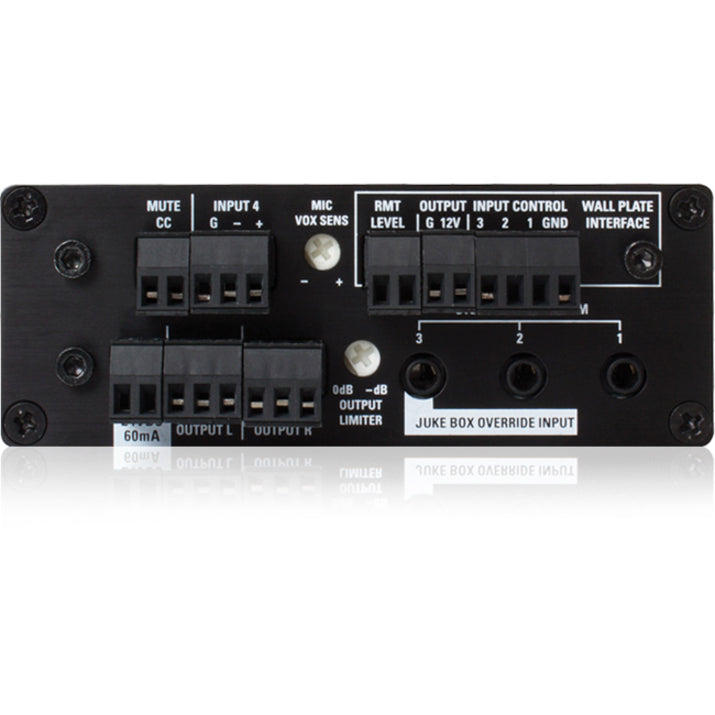

The unit includes one mic/balanced line input via removable Phoenix style connector and three stereo 3.5mm inputs. Switchable phantom power is provided for the mic input to facilitate condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter @ 125Hz also is available on the mic input to minimize bass rumble and low frequency feedback.
The TSD-MIX42RT can be used in conjunction with a WPD-MIX42RT decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer. The WPD-MIX42RT features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the TSD-MIX42RT and the Juke Box Override, any page made through the system will override the selected source so that the page can be heard clearly.
Priority paging can be accomplished via contact closure or VOX trigger on Input 1 that will mute Inputs 2, 3, or 4 (assignable). Remote level control feature allows use of the AtlasIED AAVC-10K or WPD-VC10K decorative wall plate control for convenient remote adjustment of either the entire Master mix bus or Inputs 1, 2, 3. A variable output limiter provides system protection by reducing clipping and distortion - which is especially useful when mixing mic and/or line sources with varying volumes.
- Power Supply Sold Separately
- Remote Level Control Feature Allows use of the WPD-VC10K Wall Plate Control
- Priority Paging Via Contact Closure or VOX Trigger on Input 1
- 12dB/octave High Pass Filter @ 125Hz Available on the Mic Input
- Three Unbalanced Stereo Line Inputs 3.5mm
- Stereo or Mono Configurations
- One Balanced Mic/Line Input
Product Type: Audio Mixer
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Product Series: TSD
Brand Name: Atlas Sound
Manufacturer: Atlas Sound LP.
Product Model: TSD-MIX42RT
Product Name: 4x2 Mic/Line Mixer with Priority Sense and Remote Control
Mount Type: Rack Mountable
Manufacturer Part Number: TSD-MIX42RT
Manufacturer Website Address: http://www.atlassound.com
Package Contents:
- 4x2 Mic/Line Mixer with Priority Sense
- Remote Control
- Velcro
- 2 x Brackets
- Security Covers
- 2 x Cable Retainer
Limited Warranty: 3 Year
Weight (Approximate): 6.61 lb
