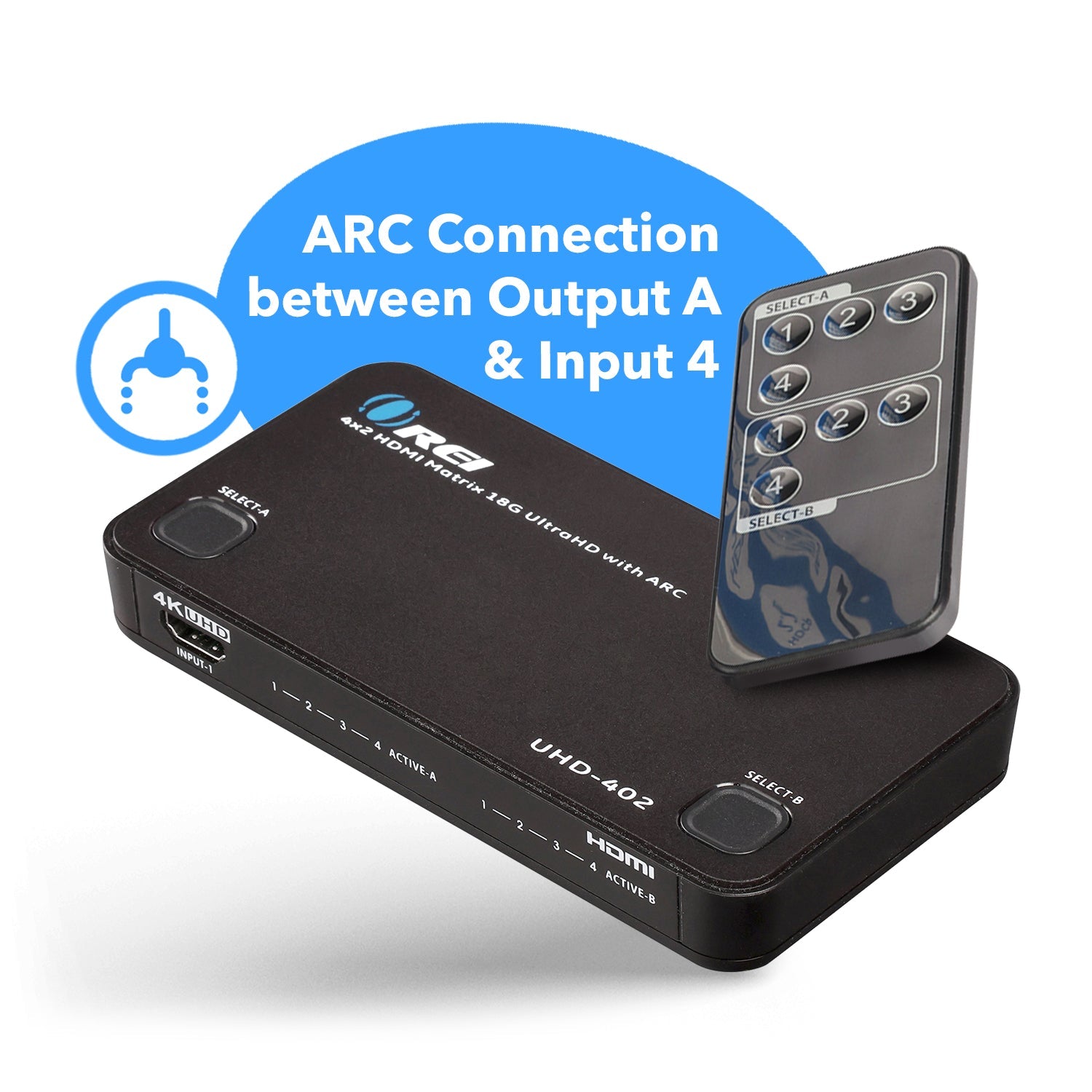

Audio Return Channel (ARC) support between Input 4 and Output A

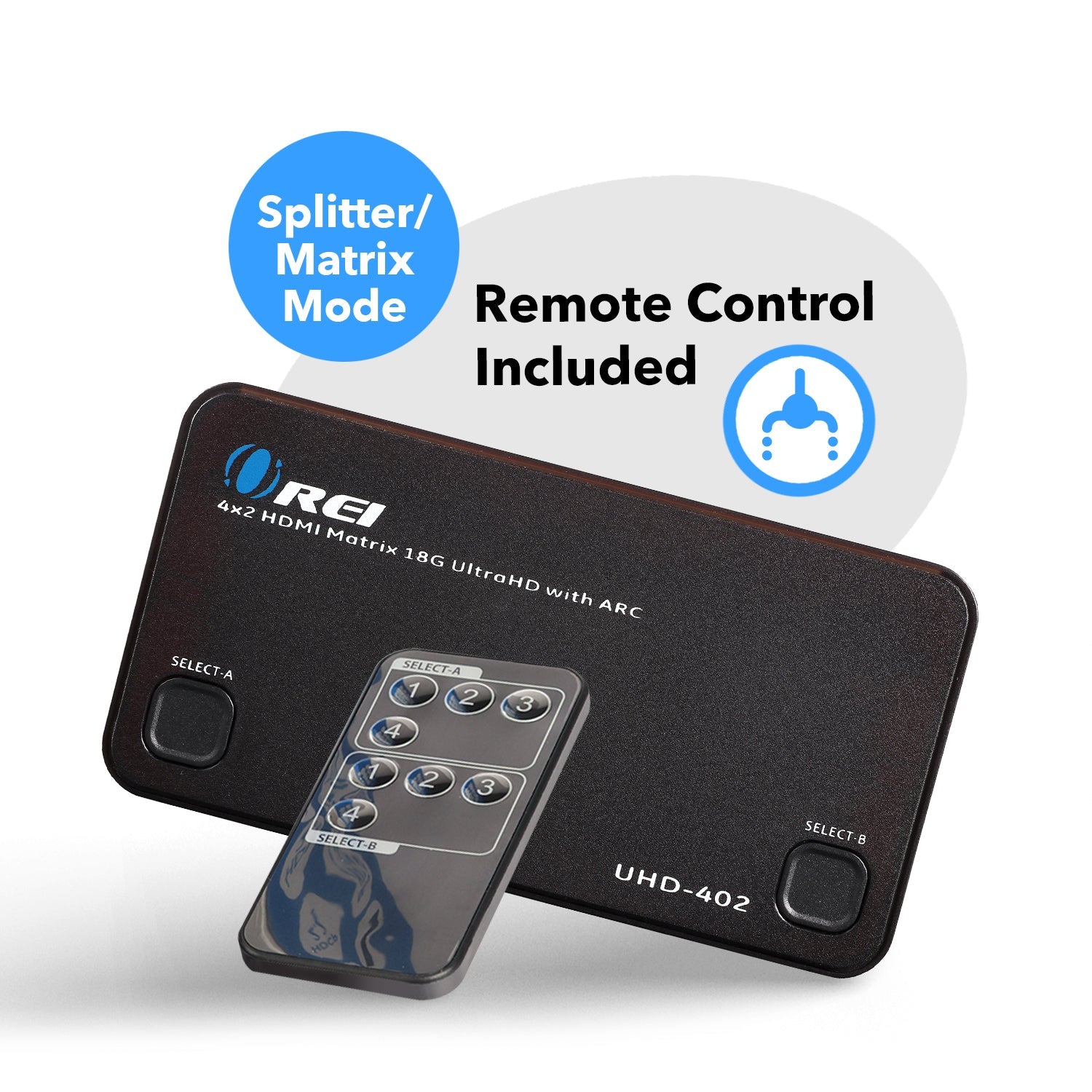

Control through the included remote or the buttons on the device
Durable ABS plastic body

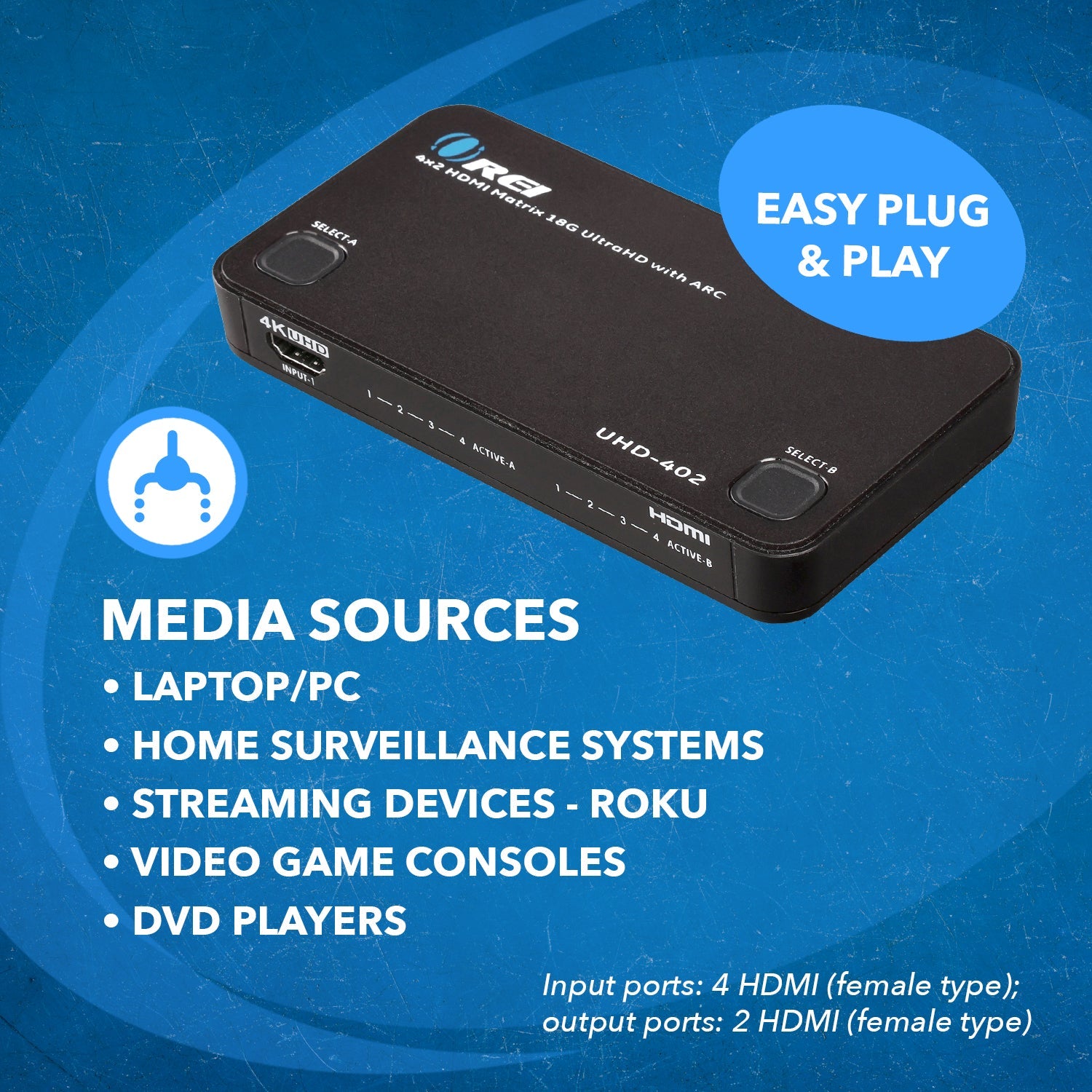

Plug-and-play setup

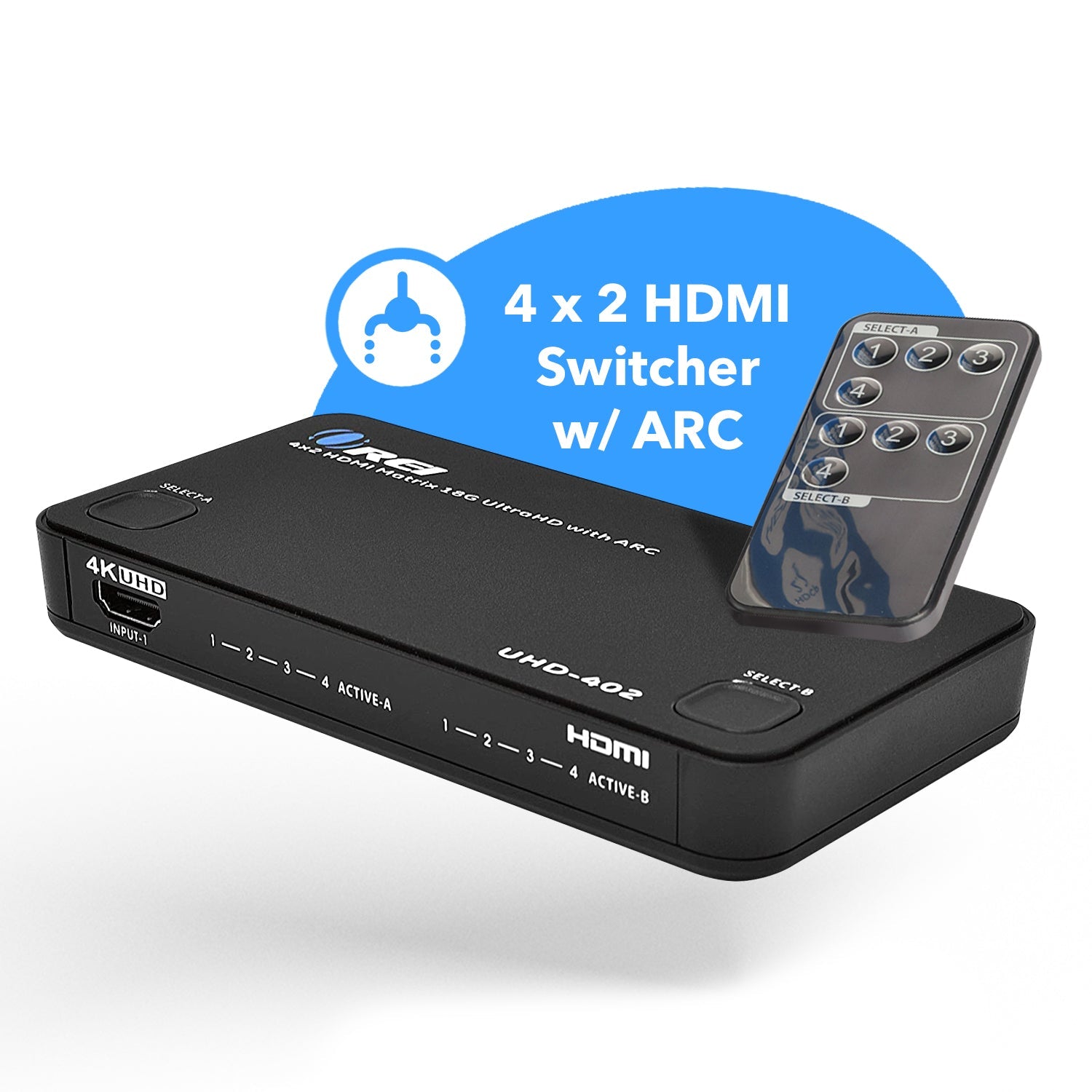

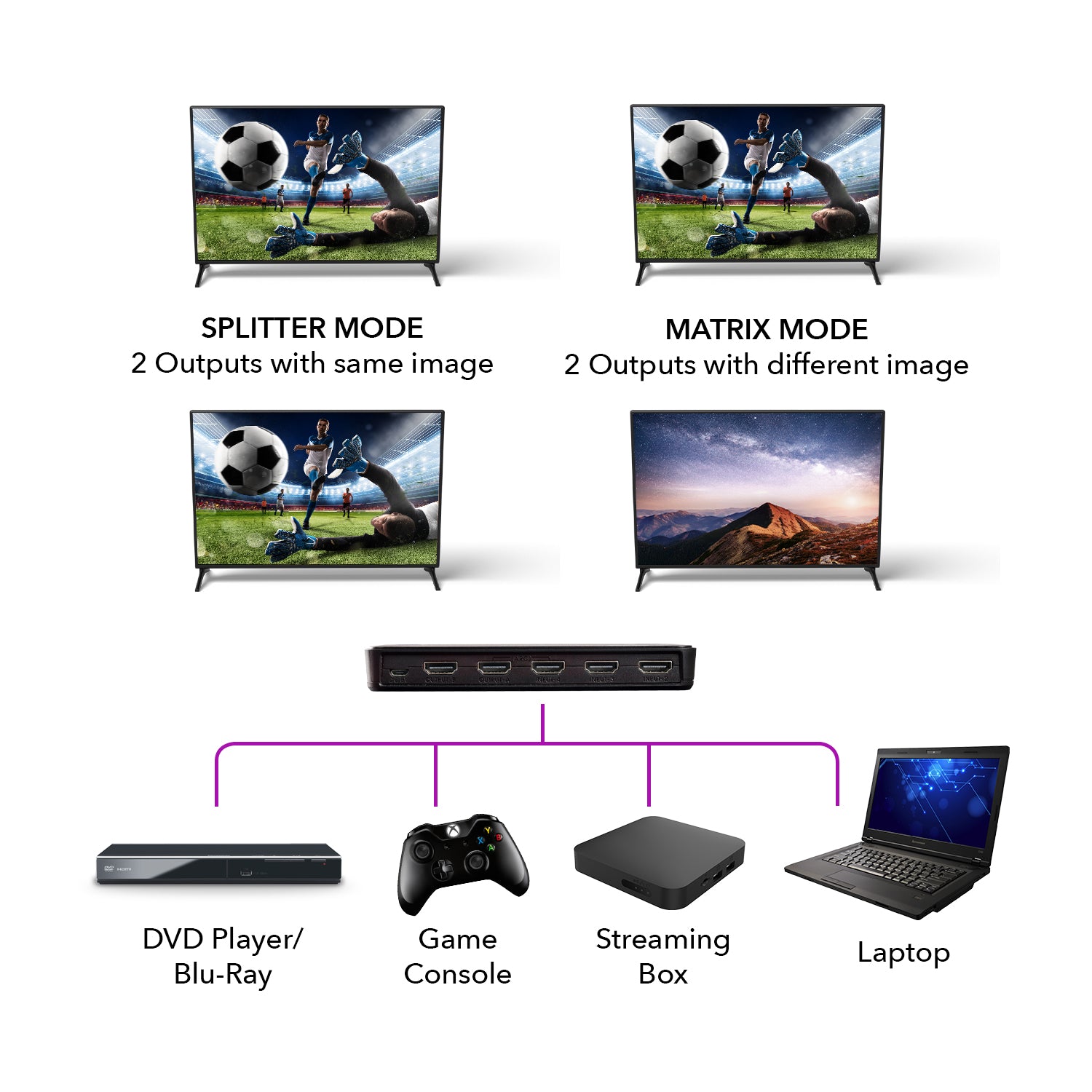

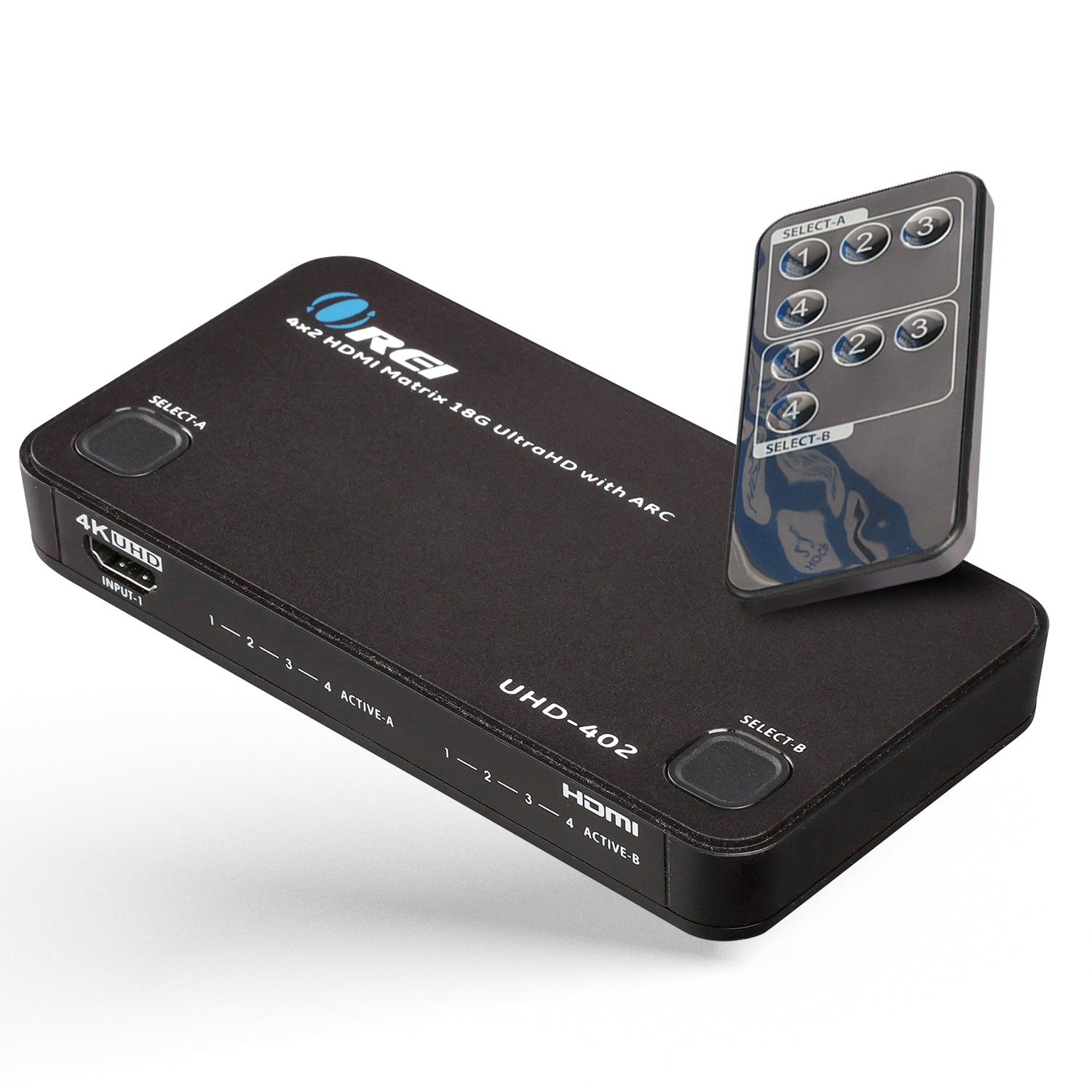

The UHD-402 HDMI Matrix switch lets you connect up to 4 media devices and independently distribute them on 2 displays. It supports video resolutions up to 4K@60Hz with a pixel clock rate of up to 600MHz. It includes ARC support between Input 4 and Output A, along with DTS-HD and Dolby TrueHD lossless audio. The device is easily controlled via the included remote or the buttons on the device. The UHD-402 is perfect for any home theater or commercial setup.
[shortdes]
Durable ABS plastic body
Video resolutions up to 4K@60Hz
ARC support between Input 4 and Output A
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
4 × HDMI [Type A, 19-pin female]
OUTPUT:
2 × HDMI [Type A, 19-pin female]
PACKAGE CONTENTS
1x UHD-402
1x Remote
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0 / 2.1
We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance
EXTENDING DISTANCE
4K@60Hz:
30 Feet
VIDEO OUTPUT
Video Bandwidth:
18 Gbps
Video Resolutions:
Up to 4K@60Hz
ADDITIONAL FEATURES
CEC:
No
ARC:
Yes
USB KVM:
No
PoC/PoE:
No
IR Control:
Yes
Downmix:
No
Downscale:
No
Over IP:
No
HDBaseT:
No
RS-232:
No

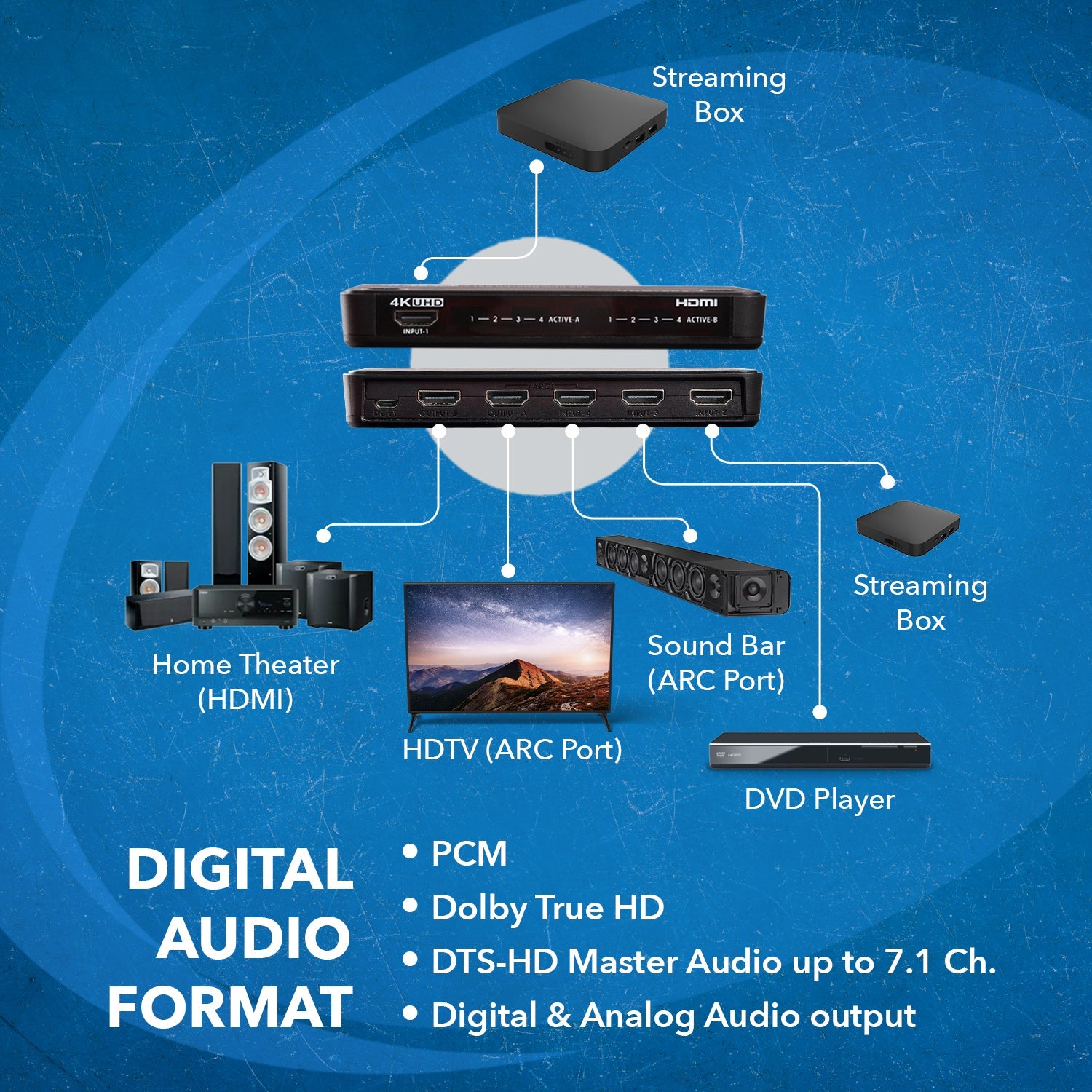

AUDIO SUPPORT
HDMI Audio Formats:
Dolby TrueHD, DTS-HD
COMPLIANCES
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
2W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 5V/1A

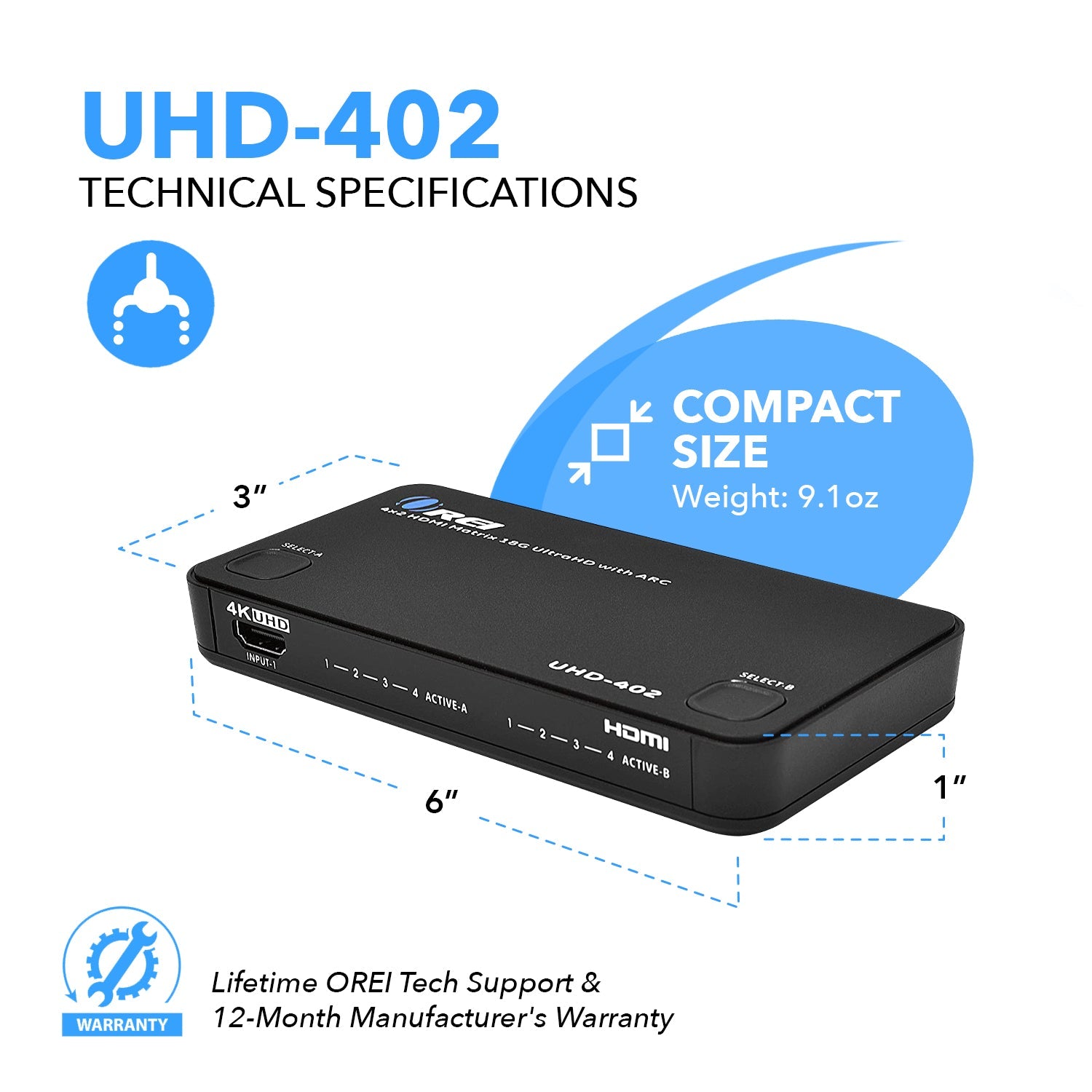

DIMENSIONS & WEIGHT
Length:
150 mm / 5.91inch
Width:
74.5 mm / 2.93inch
Height:
20.5 mm / 0.81inch
Weight:
123g / 4.34oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
General Information
UPC
850008956065
