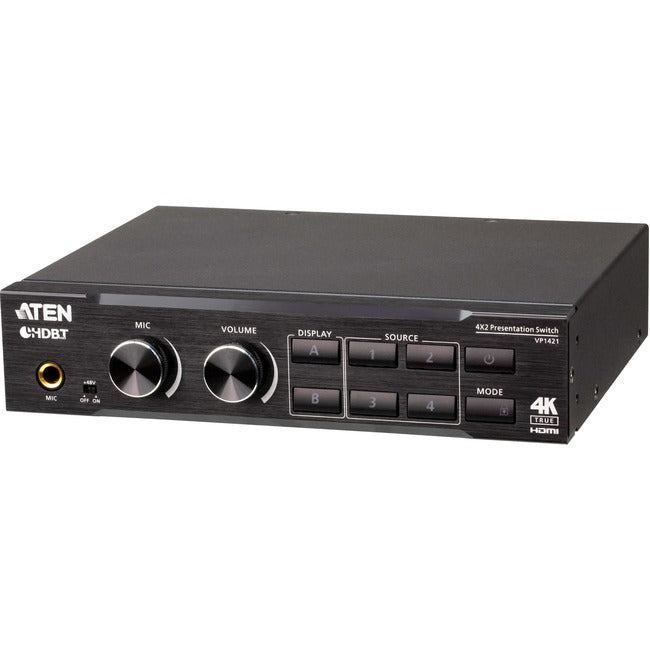

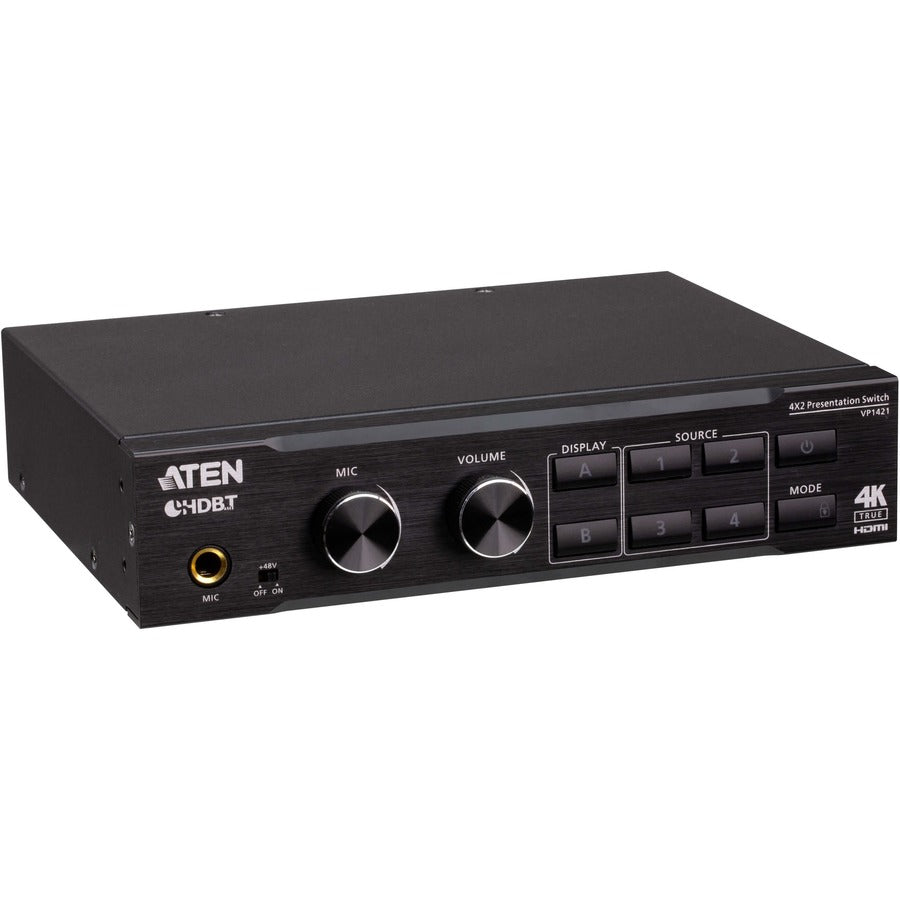

ATEN 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
The VP1421 is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, HDBaseT extender, audio DSP, and analog-to-digital converter functions into a single compact enclosure, ideal for meeting rooms and educational spaces.
True 4K, HDR Visual Clarity
Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR to deliver vivid content in every presentation.
Smooth AV Switching Scaled to Perfection
Connect up to 4 sources (1 HDBaseT, 2 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.
HDBaseT Extended Transmission over One Cable
Simplifies cabling and transmits AV, power, and bi-directional RS-232 and IR control signals up to 140m via Cat 6/6a or ATEN 2L-2910 Cat 6 cables (applying both HDBaseT input and output ports).
Built-in Advanced Audio DSP
Supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output while automatically reducing program audio to enhance speech audibility.
Flexible Audio Embedding/De-Embedding
Supports stereo audio embedding into HDMI output or separation to Audio Line Out and Optical Audio Out. Extract HDMI and HDBaseT audio to different audio outputs as well to ease adaptation to you preferred audio setup.
Versatile Control, Streamlined Operations

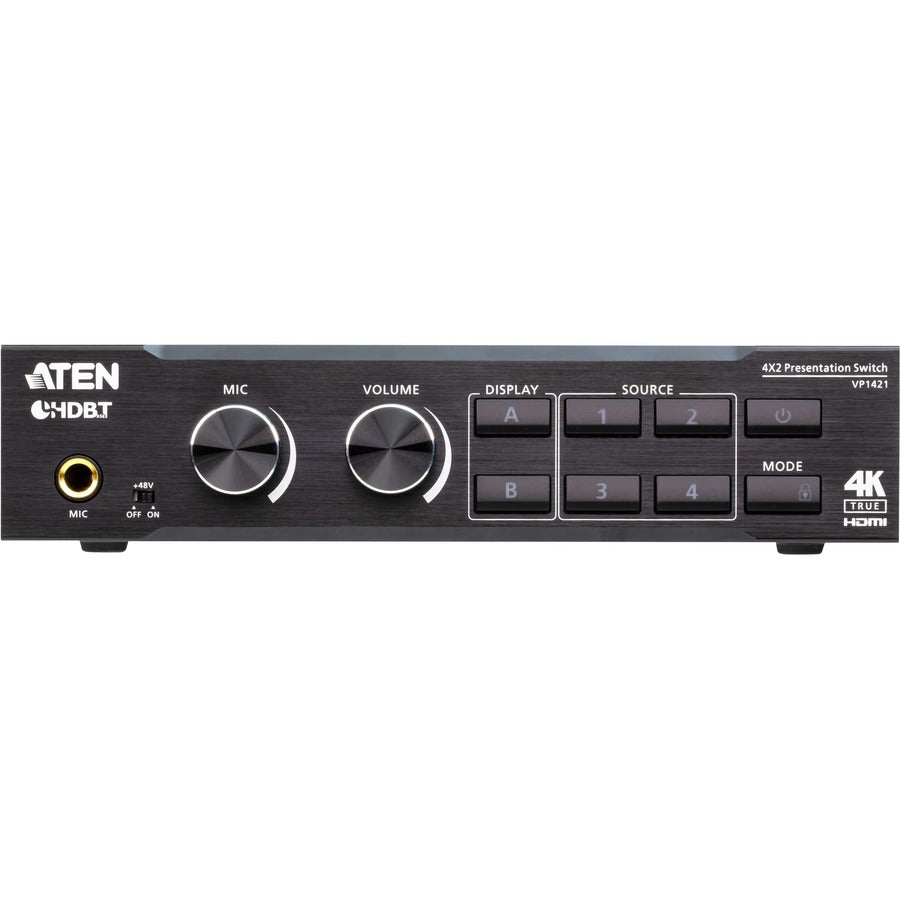

Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.
- Scaler - supports video upscaling to 4K for display A and downscaling to 1080p for display B
- Superior video quality - True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI) / 4096 x 2160@60Hz (4:2:0) (HDBaseT); HDR support
- HDBaseT-Lite technology - extends uncompressed AV, IR, RS-232, and power over one Cat 6/6a cable up to 70m

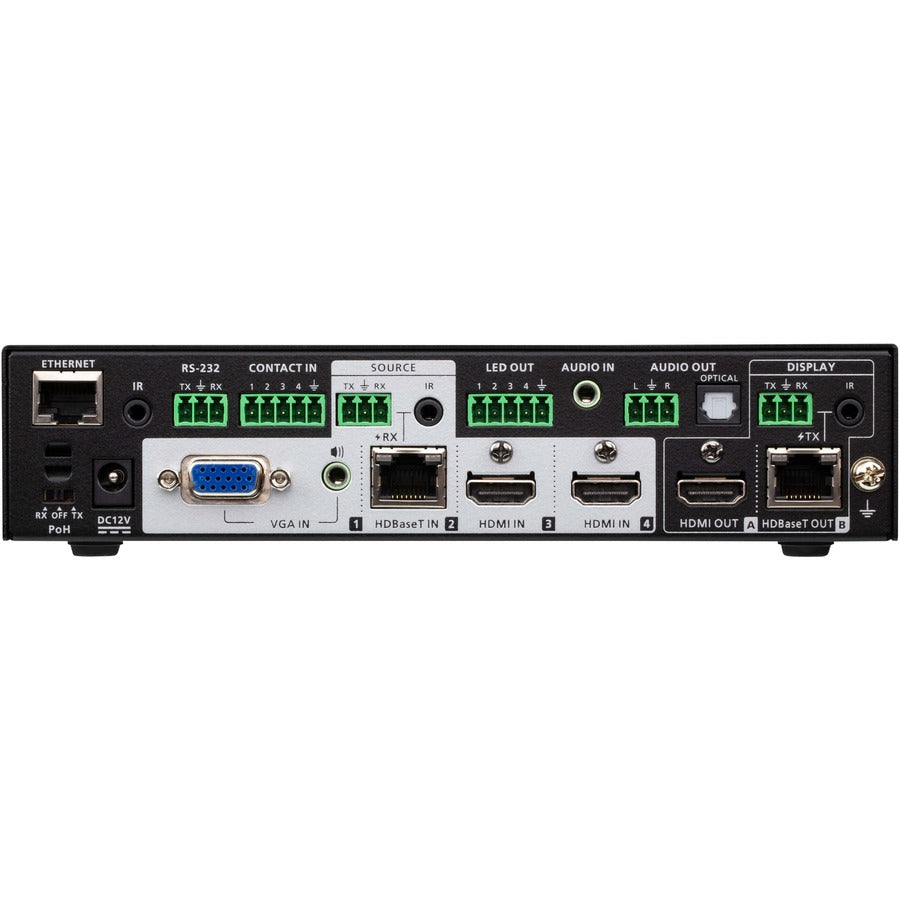

- Multi-format AV Switching - switch among 1 HDBaseT, 2 HDMI and 1 VGA inputs to 1 HDBaseT and 1 HDMI outputs and support of audio DSP
Product Type: Audio/Video Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology, Inc
Product Model: VP1421
Product Name: 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
Manufacturer Part Number: VP1421
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:
- 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
- 1x IR Receiver
- 1x IR Remote Control
- 4x 3-pole Terminal Blocks
- 2x 5-pole Terminal Blocks
- 1x Power Adapter
- 1x User Instructions
Weight (Approximate): 2.56 lb
