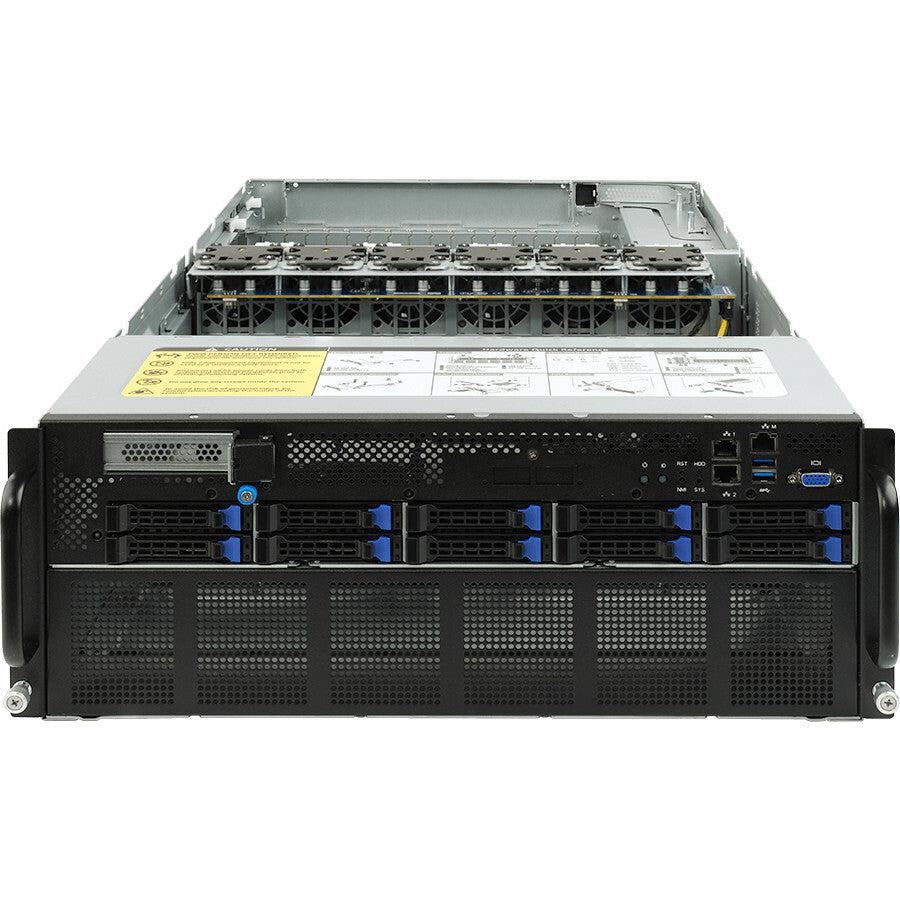

Gigabyte G482-Z51 Barebone System - 4U Rack-mountable - Socket SP3 - 2 x Processor Support

Gigabyte G482-Z51 Barebone System - 4U Rack-mountable - Socket SP3 - 2 x Processor Support

• Up to 8 x PCIe Gen4 GPGPU cards
• Dual AMD EPYC™ 7002 series processor family
• 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
• 2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
• 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
• 1 x dedicated management port
• 10 x SATA 2.5" hot-swappable HDD/SSD bays
• Aspeed® AST2500 remote management controller
• 3 x 80 PLUS Platinum 2200W redundant PSU

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

• Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
• Up to 64 core per CPU, built using Zen 2 high performance cores and AMD's innovative chiplet architecture
• Supporting PCIe Gen 4.0 with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
•
  Embedded security protection to help defend your CPU, applications, and data

GIGABYTE Management Console (AMI MegaRAC SP-X)

This GIGABYTE server product utilizes a AMI MegaRAC SP-X platform for BMC server management, with a feature rich and easy to use browser-based graphical user interface.
Notable features include:

•
  RESTful API support (including the latest DMTF standards of Redfish) allows the administrator to integrate with 3rd party applications for server management
•
  HTML5-based iKVM remote management client included as a standard feature, no additional add-on license required to purchase
•
  Detailed FRU information from SMBIOS
•
  Pre-event automatic video recording feature from 10 to 30 seconds
•
  SAS / RAID controller monitoring feature

GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE's proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:

•
  GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node's BMC.
•
  GSM CLI, a command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node's BMC.
•
  GSM Agent, a software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/...) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
  *GSM Agent is currently compatible with Avocent MergePoint IPMI 2.0 BMC firmware, but not yet compatible with Megarac SP-X BMC firmware.
•
  GSM Mobile, a remote server management mobile APP, available for both Android and iOS.
•
  GSM Plugin, a plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware's vCenter.

Intuitive & Informative User Interface

Starting from the GSM Server dashboard, the user can clearly understand the status of each node in the IT environment, including:

• Node connection status (system is online/offline)
• Node hardware sensor status (to detect hardware anomalies). Sensors measure voltage, fan speed and temperature

• Perform computational tasks effectively accrediting the EPYC processor


• DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation


• Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network


• Provides 2 USB ports for responsive and expanded device connections


• With Serial Attached SCSI (SAS) interface get superb reliability and high-speed data transfer

Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Taiwan
Rack Height: 4U
Brand Name: Gigabyte
Form Factor: Rack-mountable
Manufacturer: GIGABYTE Technology, Inc
Product Model: G482-Z51
Product Name: G482-Z51 (rev. 100)
Manufacturer Part Number: G482-Z51
Manufacturer Website Address: http://www.gigabyte.us
Packaged Quantity: 1
Package Contents:

• G482-Z51 (rev. 100)
• 2 x CPU Fan-Sinks
• 1 x Rail Kit
