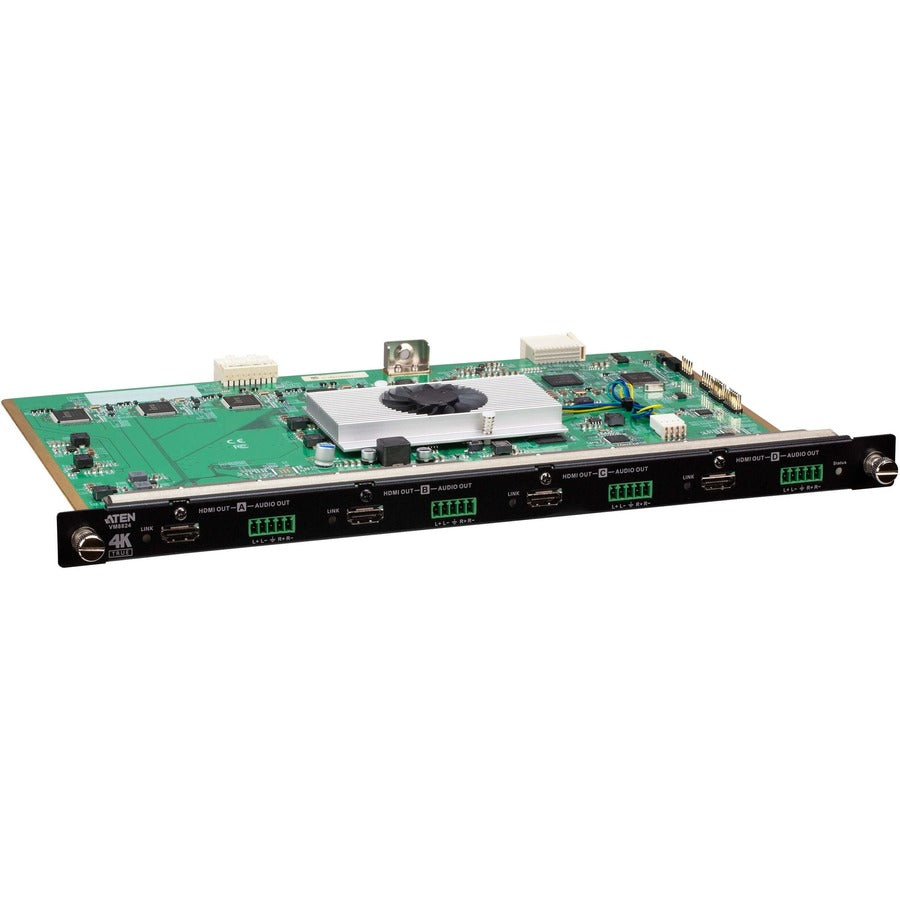

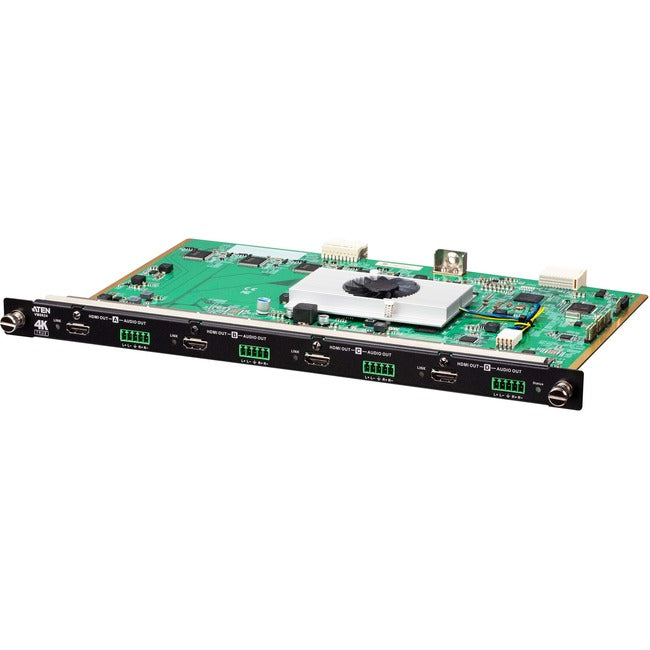

VanCryst VM8824 4-Port True 4K HDMI Output Board with Scaler
The VM8824 is a True 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 analog/digital audio/video sources to 4 HDMI displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal, the VM8824 also provides 4 stereo audio output ports that enable HDMI audio extraction.
Considering video wall applications always require fast video switching and resolution adaptation, the VM8824 supports Seamless Switch™ technology that provides real-time video switching, a built in 4K scaler that handles different video resolutions, and the EDID Expert technology for fast smooth switching between displays. All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
- Compatible with the VM Modular Matrix Switches; mix and match with modular I/O boards of any type for optimum flexibility
- True 4K Resolutions - handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 @ 60Hz (4:4:4)
- 4K Scaler - features a video scaling function to integrate a video wall seamlessly with various output video resolutions
- Seamless Switch™ - features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions
- Video Wall - allows you to create custom video wall layouts via intuitive web GUI
- True 4K EDID Expert - selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
- FrameSync - prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
- Cable Quality Tester - examines the HDMI cable quality
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
Product Type: HDMI Output Board
Product Material: Metal
Brand Name: VanCryst
Form Factor: Wall Mountable
Length: 13.9"
Manufacturer: ATEN Technology, Inc
Product Model: VM8824
Product Name: VM8824 4-Port True 4K HDMI Output Board with Scaler
Product Line: Professional
Application/Usage: Matrix Switcher
Manufacturer Part Number: VM8824
Manufacturer Website Address: http://www.aten.com/us/en/
Weight (Approximate): 1.43 lb
