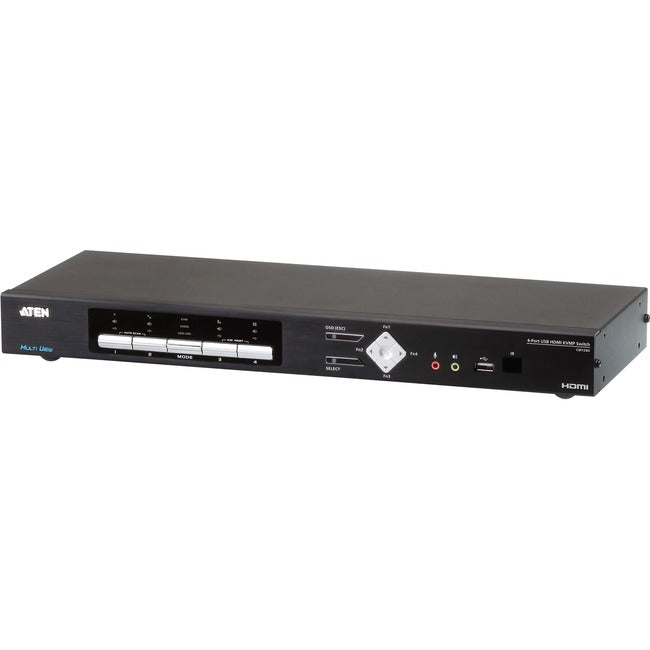

ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch-TAA Compliant

ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch-TAA Compliant

ATEN CM1284 4-Port USB HDMI Multi-View KVMP™ Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected, switched, and displayed at the same time with independent keyboard and mouse control.

Advanced video support provides a better-defined HDMI connection with video resolutions up to 4K (4096 x 2160 @ 30 Hz). The CM1284 guarantees users a real-time monitoring functionality by offering dual outputs on console side. One provides the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and the other one provides Full Screen mode. Featuring Boundless Switching, the CM1284 allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.

Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1284 units via a single console. In addition, CM1284 can be cascaded up to 2 levels to reach the maximum of 16 video sources to be simultaneously selected, switched, and displayed with independent keyboard and mouse control.

Engineered to meet the ever-increasing demand for multi-view functionality, the CM1284 is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, and medical application.

• Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)

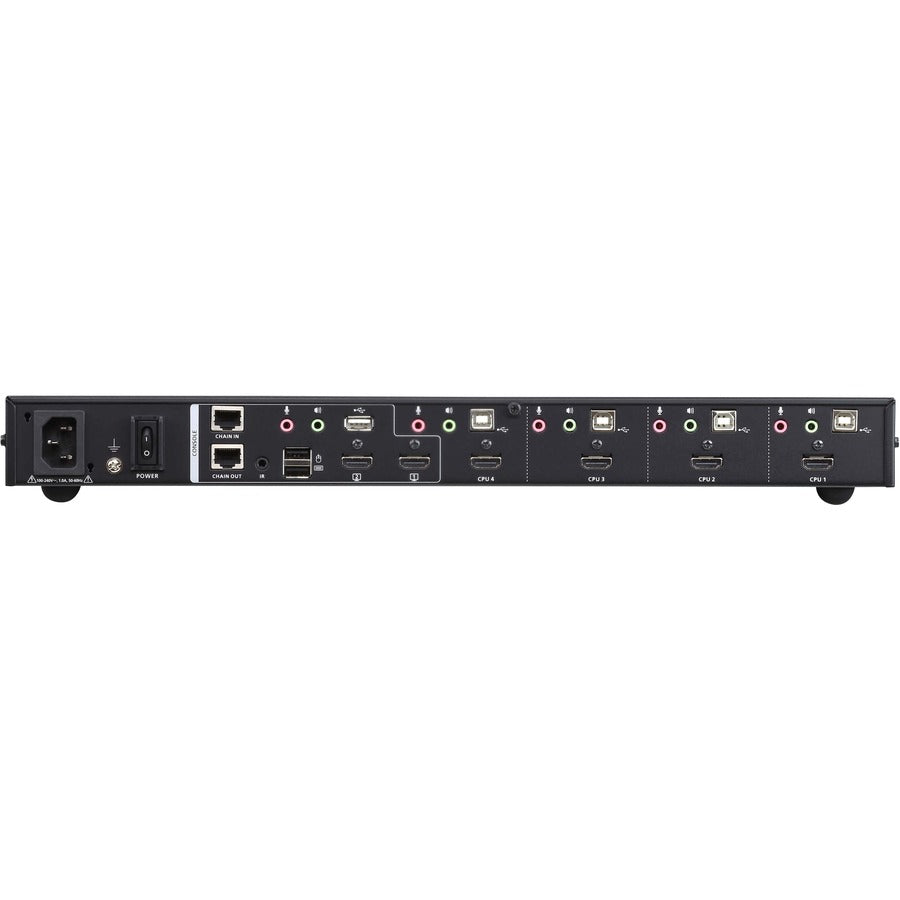

• Features dual output on console side - a multi-view output and a full screen output


• Easily resizes and / or reposition any PiP or PbP to suit users' viewing needs


• System configuration via front panel, OSD, IR Remote, and RS-232 commands - display mode and port selection


• Supports superior video quality - Up to 4K (4096 x 2160 @ 30 Hz) ; YCbCr 4 :2 : 2


• Drop down menu - edit display windows and other functions with the mouse and on-screen control panel


• Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands*


• Boundless Switching - Simply moves the mouse cursor across windows to switch to other video sources


• Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes the resolution when switching among different sources


• EDID Expert™ - Selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens

Product Type: KVM Switchbox
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology Inc
Product Model: CM1284
Product Name: CM1284 4-Port USB HDMI Multi-View KVMP Switch
Manufacturer Part Number: CM1284
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:

• CM1284 4-Port USB HDMI Multi-View KVMP Switch
• 4 x USB HDMI Cables
• 1 x Power Cord
• 1 x IR Remote Control
• 1 x Rack Mount Kit
• 1 x User Instructions
