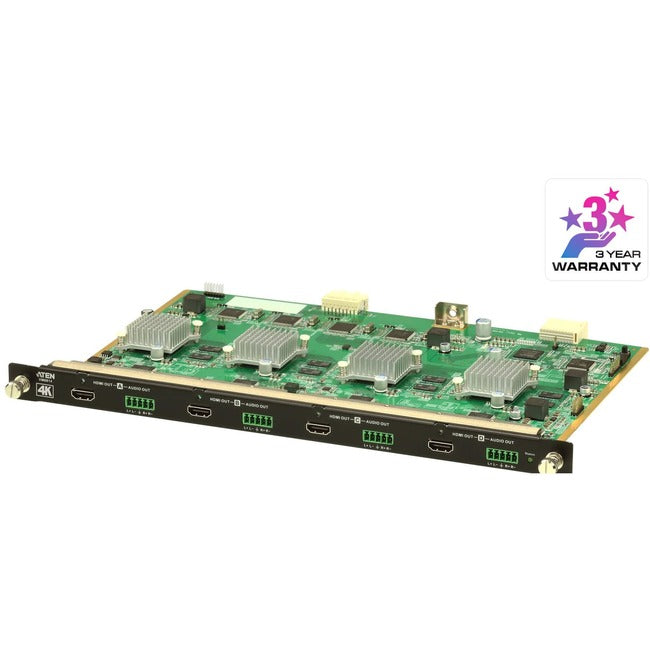

ATEN VM8814 4-Port 4K HDMI Output Board with Scaler
The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
- Compatible with the VM1600 / VM3200; mix and match with modular I/O boards of any type for optimum flexibility
- 4K Scaler -features a video scaling function to convert input resolutions to the optimum display resolutions
- Seamless Switch™ -features close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions*
- FrameSync -prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Product Type: HDMI Output Board
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Material: Metal
Country Of Origin: Taiwan
Product Series: VM
Brand Name: ATEN
Compatibility: ATEN Matrix Switchers:
Form Factor: Rack-mountable
Length: 13.9"
Manufacturer: ATEN Technology Inc
Product Model: VM8814
Product Name: 4-Port 4K HDMI Output Board with Scaler
Application/Usage: Matrix Switcher
Manufacturer Part Number: VM8814
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:
- 4-Port 4K HDMI Output Board with Scaler
- 4 x Terminal Blocks
- 1 x User Instructions
Limited Warranty: 3 Year
Weight (Approximate): 1.43 lb
