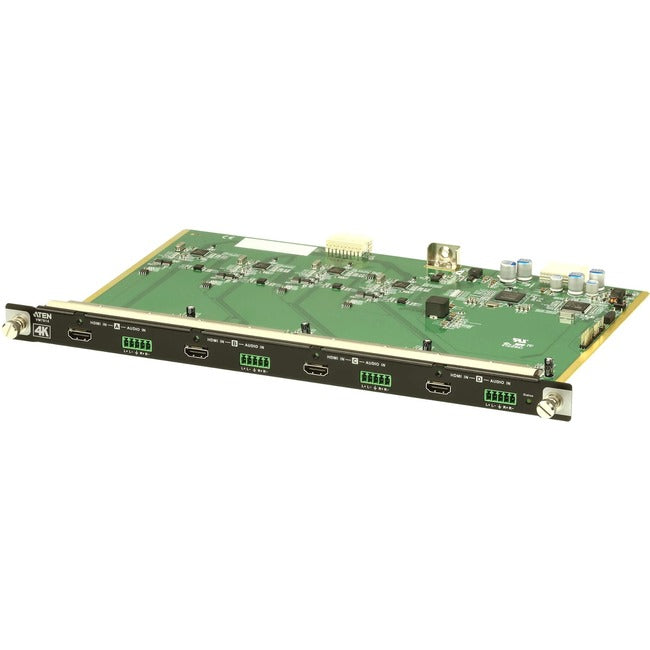

ATEN 4-Port 4K HDMI Input Board VM7814-TAA Compliant
The VM7814 is a 4K HDMI input board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM7814 is equipped with 4 stereo audio input ports that allow stereo audio embedding.
The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
- 4-port 4K HDMI Input Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Superior video quality - HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); 4K2K@60 (4:2:0)
- Audio-enabled, stereo audio can be embedded
- EDID Expert - selects optimum EDID settings for smooth power-up and the highest quality display
- HDMI (3D, Deep Color); HDCP 2.2 Compatible
- Cable Quality Tester - examines the HDMI cable quality
- Consumer Electronics Control (CEC) support
Product Type: HDMI Input Board
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Material: Metal
Country Of Origin: Taiwan
Brand Name: ATEN
Compatibility: Aten Modular Matrix Switchs:
Length: 13.9"
Manufacturer: ATEN Technology Inc
Product Model: VM7814
Product Name: 4-Port 4K HDMI Input Board VM7814
Application/Usage: Matrix Switcher
Manufacturer Part Number: VM7814
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:
- 4-Port 4K HDMI Input Board VM7814
- 4 x Terminal Blocks
- 4 x HDMI LockPro
- 1 x User Instructions
Limited Warranty: 3 Year
Weight (Approximate): 1.23 lb
