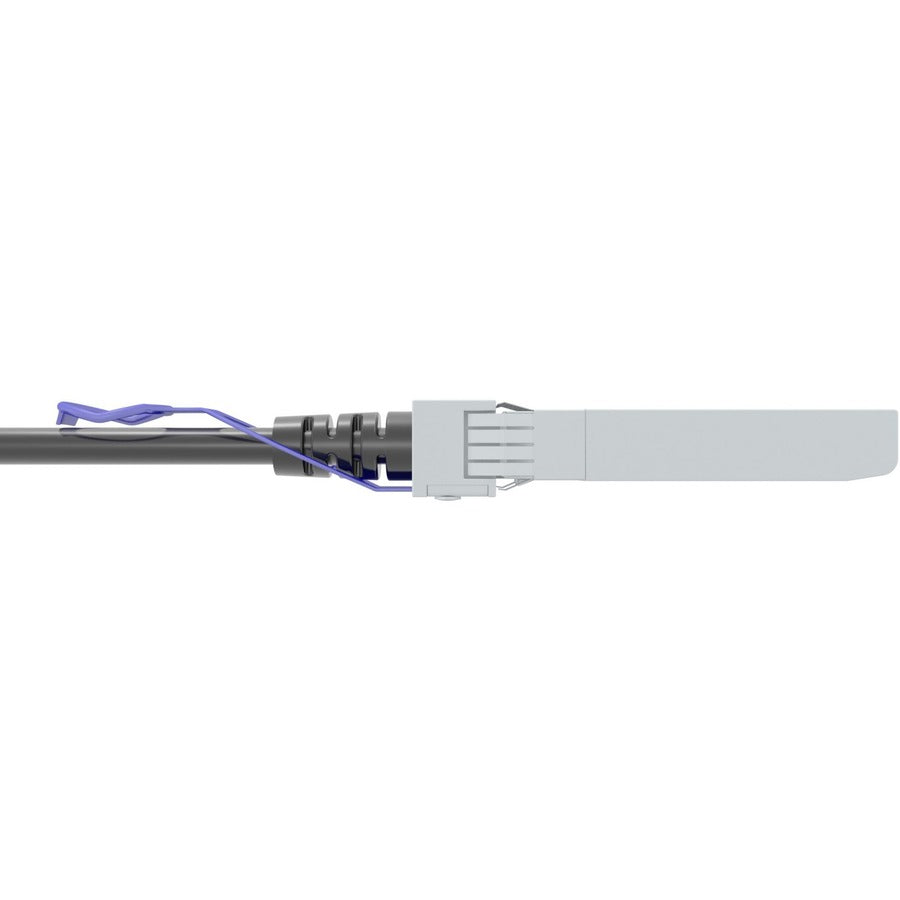

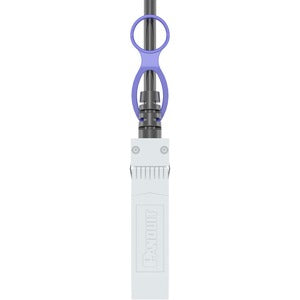

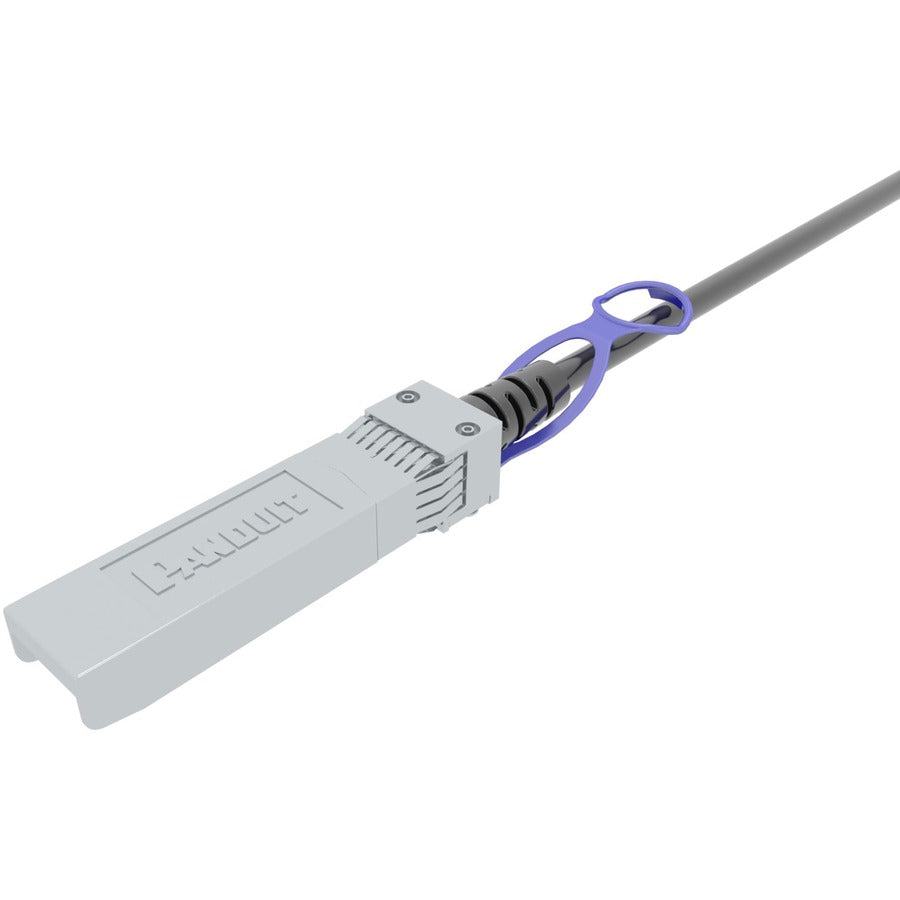

Panduit 10Gig SFP+ Direct Attach Passive Copper Cable Assemblies
Low Power, Low Latency 10 Gb/s Server Interconnect Solution for Top of Rack Switching Applications
As virtualization, consolidation, and convergence initiatives continue to grow, so do the demands placed on the physical infrastructure. To meet the needs for faster processing speeds, low power server inter-connect and I/O consolidation deployments, Panduit offers 10Gig™ SFP+ Direct Attach Passive Copper Cable Assemblies.
This high speed data transport capability is ideal as server virtualization becomes more prevalent. With multiple virtual machines, server I/O consolidation topology requires 10 Gb/s interconnects between top of rack switches and servers.
By incorporating 10Gig™ SFP+ Direct Attach Passive Copper Cable Assemblies into the physical infrastructure, businesses can achieve 10 Gigabit performance port-to-port without additional signal processing or conversion, providing a low power, low latency 10 Gb/s server interconnect option for top of rack switching applications.
End-to-end high speed data transport systems from Panduit deliver enhanced availability, agility, and security. Visit www.panduit.com to learn more about how these solutions help customers manage risk across the physical infrastructure.
- 100% performance tested : Confidence that each assembly delivers specified performance for ensured network availability
- Compliant to SFF-8431, SFF-8432 and SFF-8472 : Ensuring 10 Gb/s performance when mated to any SFF-8431 SFP+ compliant host port
- Robust construction : High speed 10 GHz twin-axial cable, with two shielded parallel pairs, factory terminated to SFP+ 10 Gb/s hot pluggable modular connectors; rated to a minimum 250 mating cycles
- Low latency performance : Ideal for high performance computer clustering and other latency sensitive applications
- Passive low power assembly : Provides a low cost short reach interconnect option with no additional power draw
- Low profile : Robust easy-to-use connector latching feature allows easy installation in belly-to-belly high density installations
- Small diameter cable design : Enables proper cable management and improved airflow
- Built-in strain relief : Ensures proper bend radius control for reliable deployment
- Variety of lengths : Available 1 to 5 meters for design flexibility and optimum airflow
- Variety of colors : Available in Blue, White, Black, and Red for easy identification of multiple networks and fabrics
Product Type: Network Cable
Environmentally Friendly: Yes
Environmental Certification: RoHS
Jacket Material: Polyvinyl Chloride (PVC)
Product Color: Black
Brand Name: Panduit
Manufacturer: PANDUIT CORP
Product Name: 10Gig SFP+ Direct Attach Passive Copper Cable Assemblies
Product Line: 10Gig
Manufacturer Part Number: PSF1PZC4MBL
Manufacturer Website Address: http://www.panduit.com
Packaged Quantity: 1
