OREI 4K KVM Extender over Cat6/7 up to 330 feet - With ARC/eARC Audio Extraction, Bi-directional IR, RS-232, & PoC (UHD-EXB350EAU-K)
Key Features:
HDMI 2.0b, HDCP 2.2, and HDBaseT 3.0 compliant
Video resolutions up to 4K@60Hz
18Gbps video bandwidth
Send media up to 328ft/100 meters via a CAT 6/7 cable
HDR10+, Dolby Vision, and HLG support
ARC/eARC support. Extract audio from the TV at the Receiver to an eARC Soundbar or AVR at the Transmitter.
HDMI OUT on the Transmitter can switch to an Audio Only output for AVRs
SPDIF and L/R audio outputs for audio extraction
Audio formats like LPCM, Dolby Digital/Plus, Dolby True HD, DTS High Res, DTS-HD Master Audio, and DSD supported through HDMI
Bi-directional KVM (USB2.0) allows you to control a PC from either end
Bi-directional IR and RS-232
Power over cable support; only requires a power adapter at a single-end
Extra ethernet ports for internet access

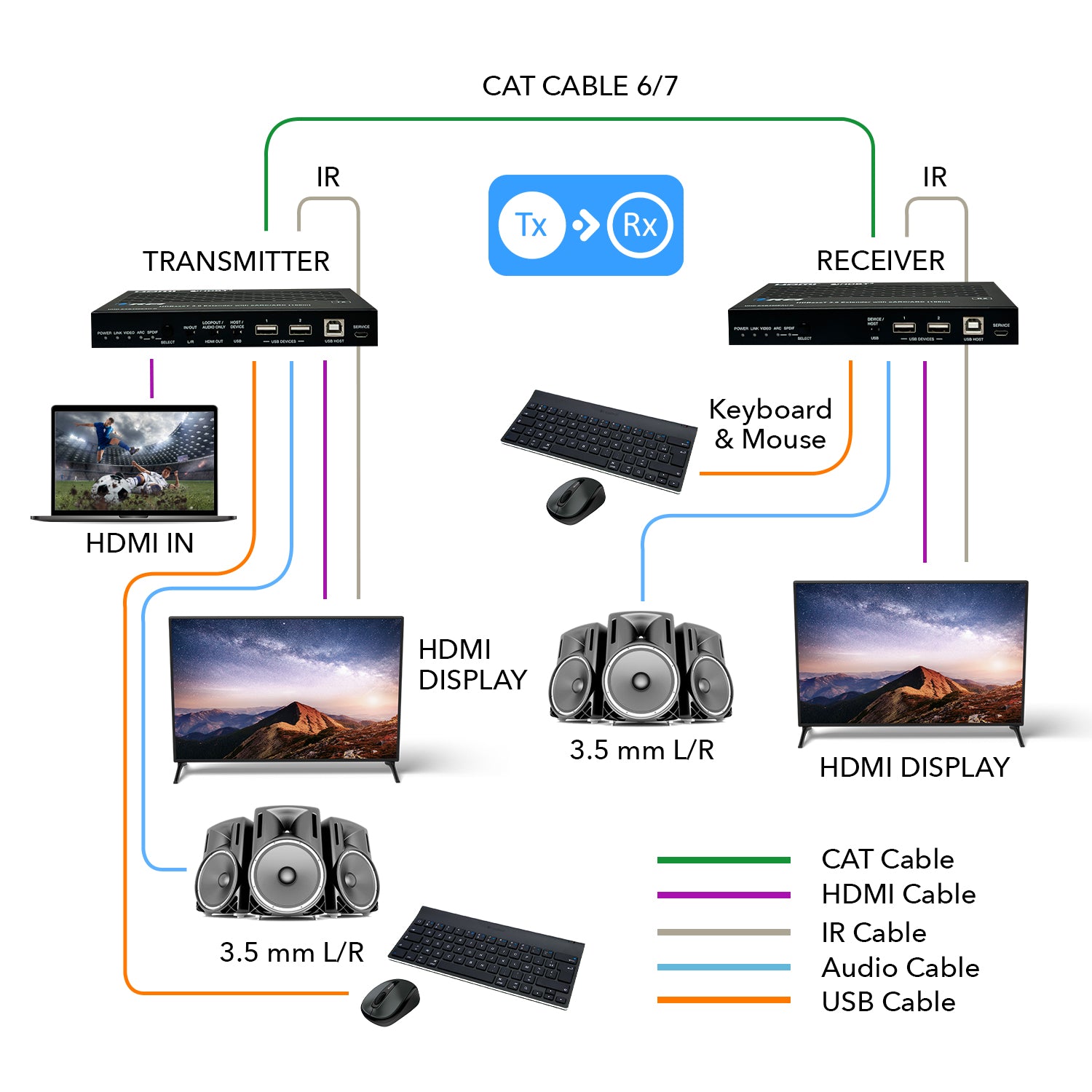

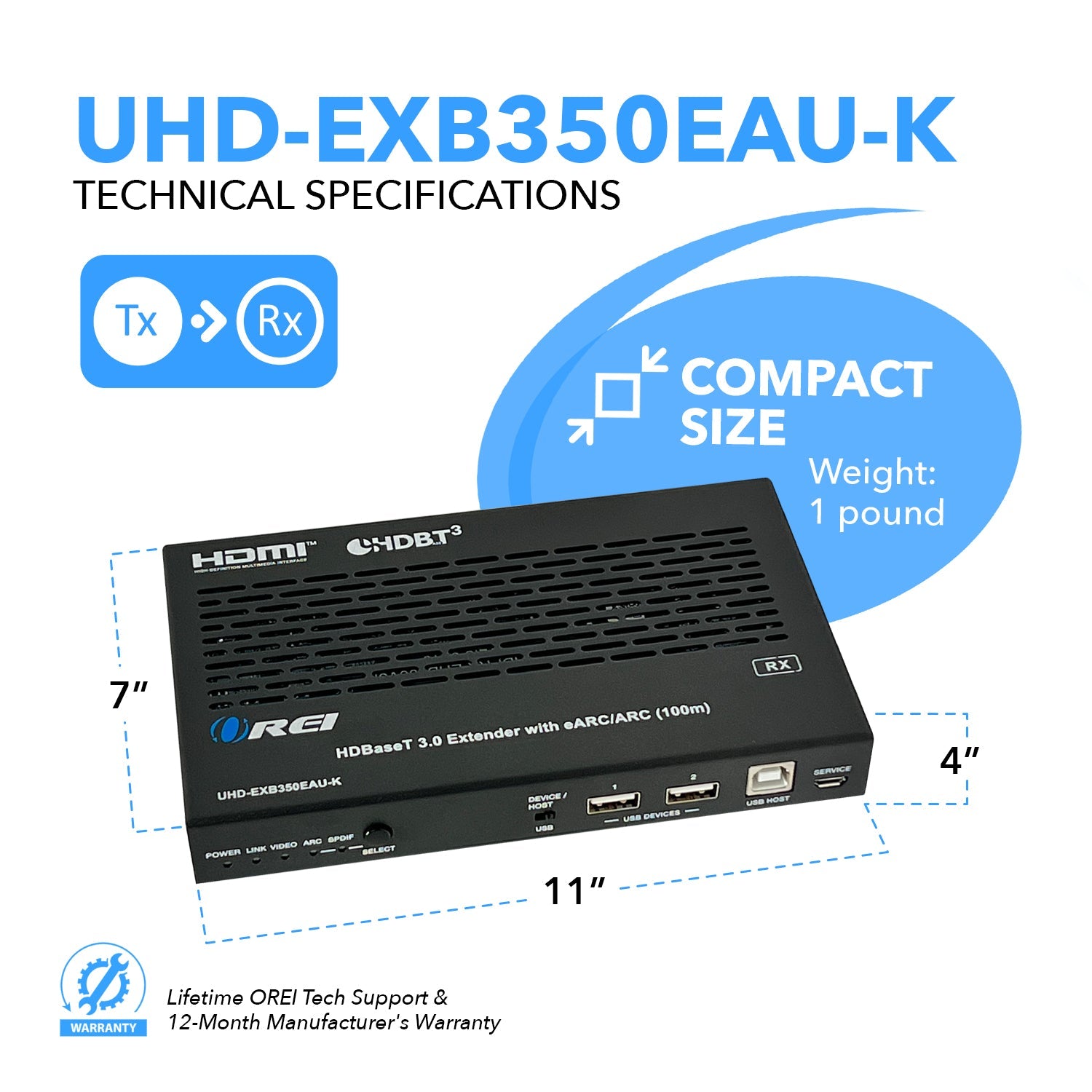

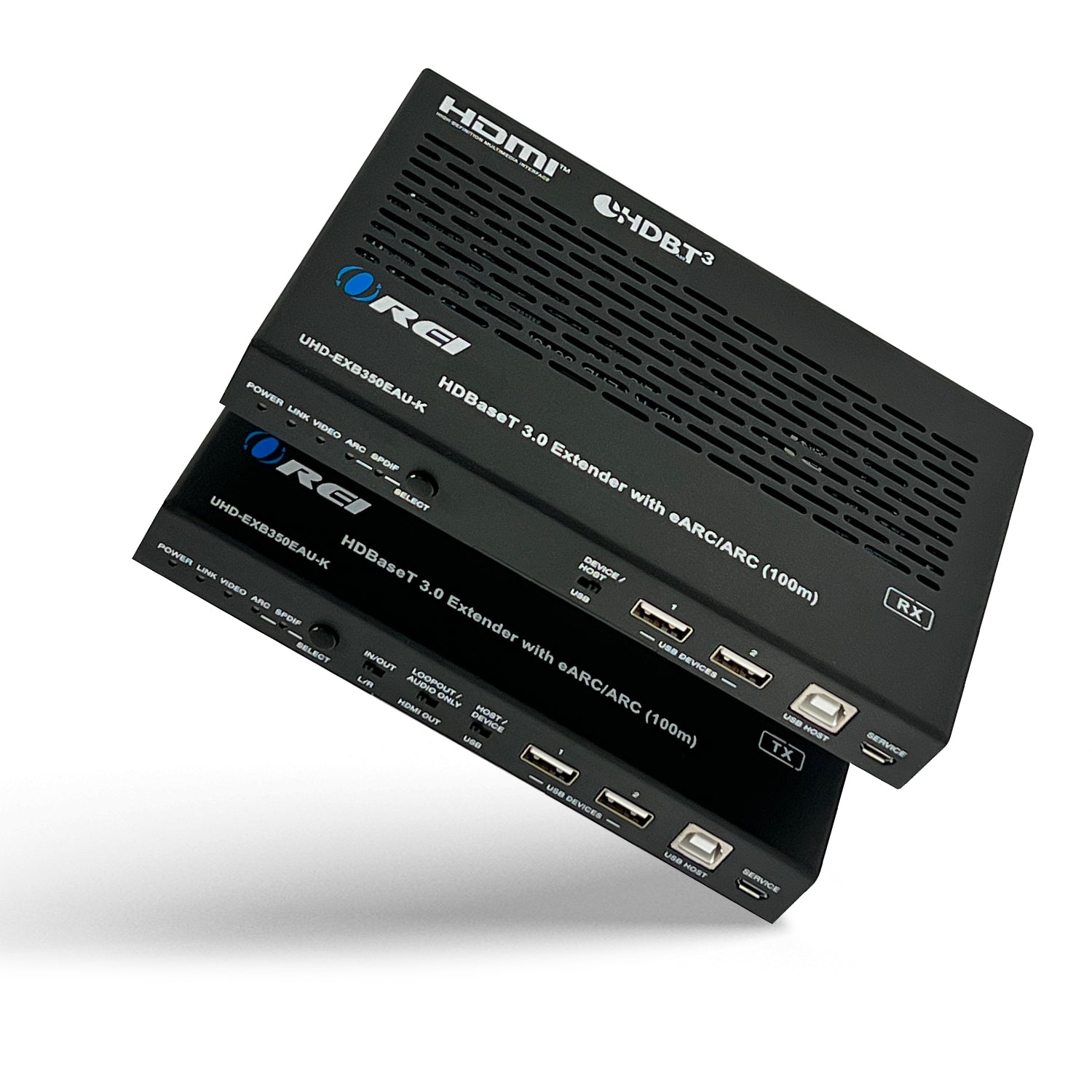

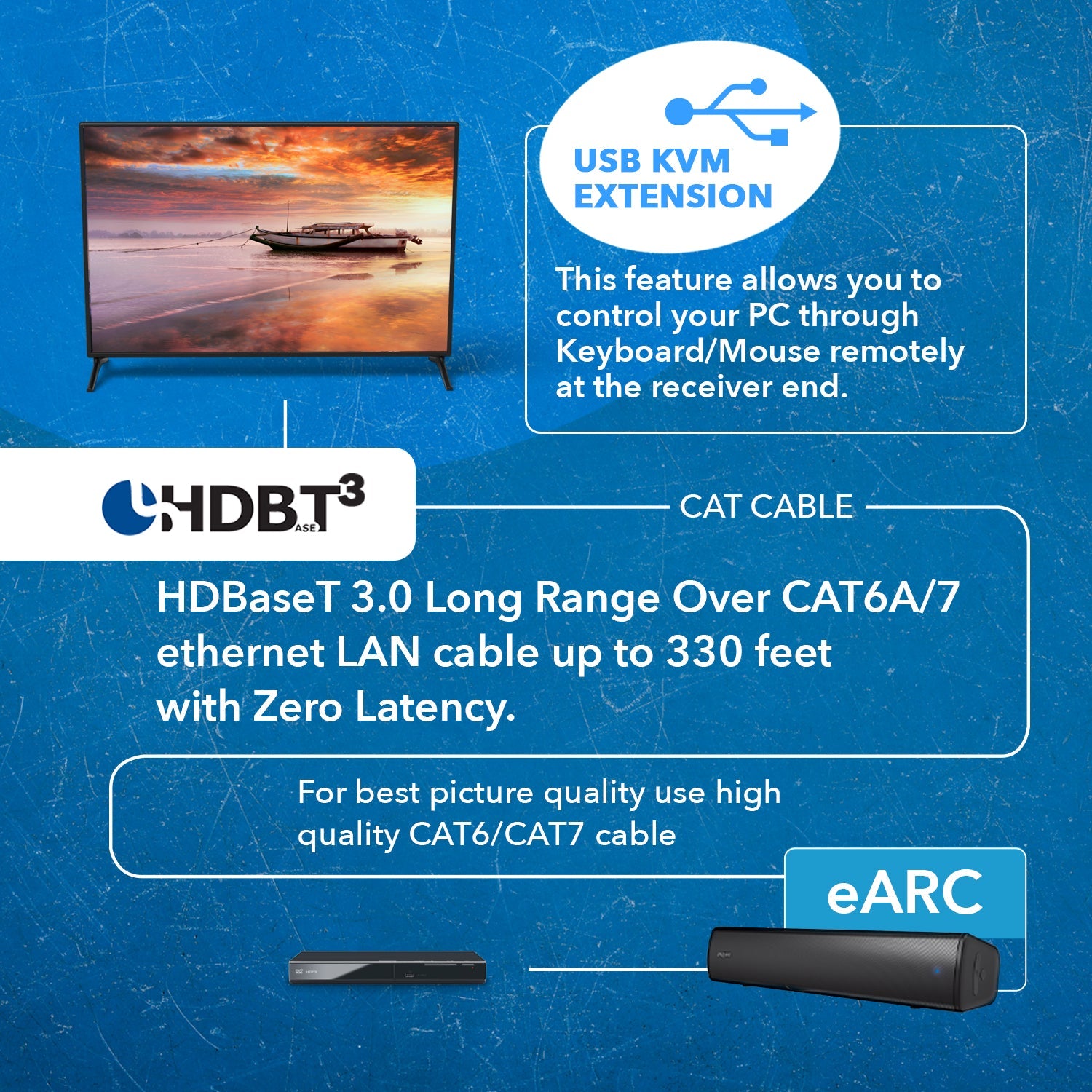

The UHD-EXB350EAU-K is an HDBaseT 3.0 extender with KVM support and video resolutions up to 4K@60Hz. It is compliant with HDMI 2.0b, HDCP 2.2, HDBaseT 3.0 & USB2.0 standards. It can transmit HDMI and USB signals up to 330 feet over a CAT6 cable. The extender features USB 2.0 ports on both the transmitter and receiver enabling bi-directional KVM functionality. It can extract audio from the source or an ARC/eARC TV, providing output via HDMI, S/PDIF, and L/R ports. These ports also support reverse transmission, allowing the receiver to send audio back to the transmitter. The transmitter's HDMI loop output port can be used for audio-only output to connect an AV receiver. Bi-directional 1Gb Ethernet pass-through for data transmission with a bandwidth of up to 1000Mbps. It offers bi-directional IR and RS-232 passthrough for enhanced control and bi-directional Power over Cable functionality, requiring only one power adapter to power up both units. Compact and robust design. Perfect for both commercial and personal use.
[shortdes]
KVM and HDMI extender With ARC/eARC
Video resolutions up to 4K@60Hz
ARC/eARC Audio Extraction, Bi-directional KVM IR, PoC & RS-232
[/shortdes]
[tab]

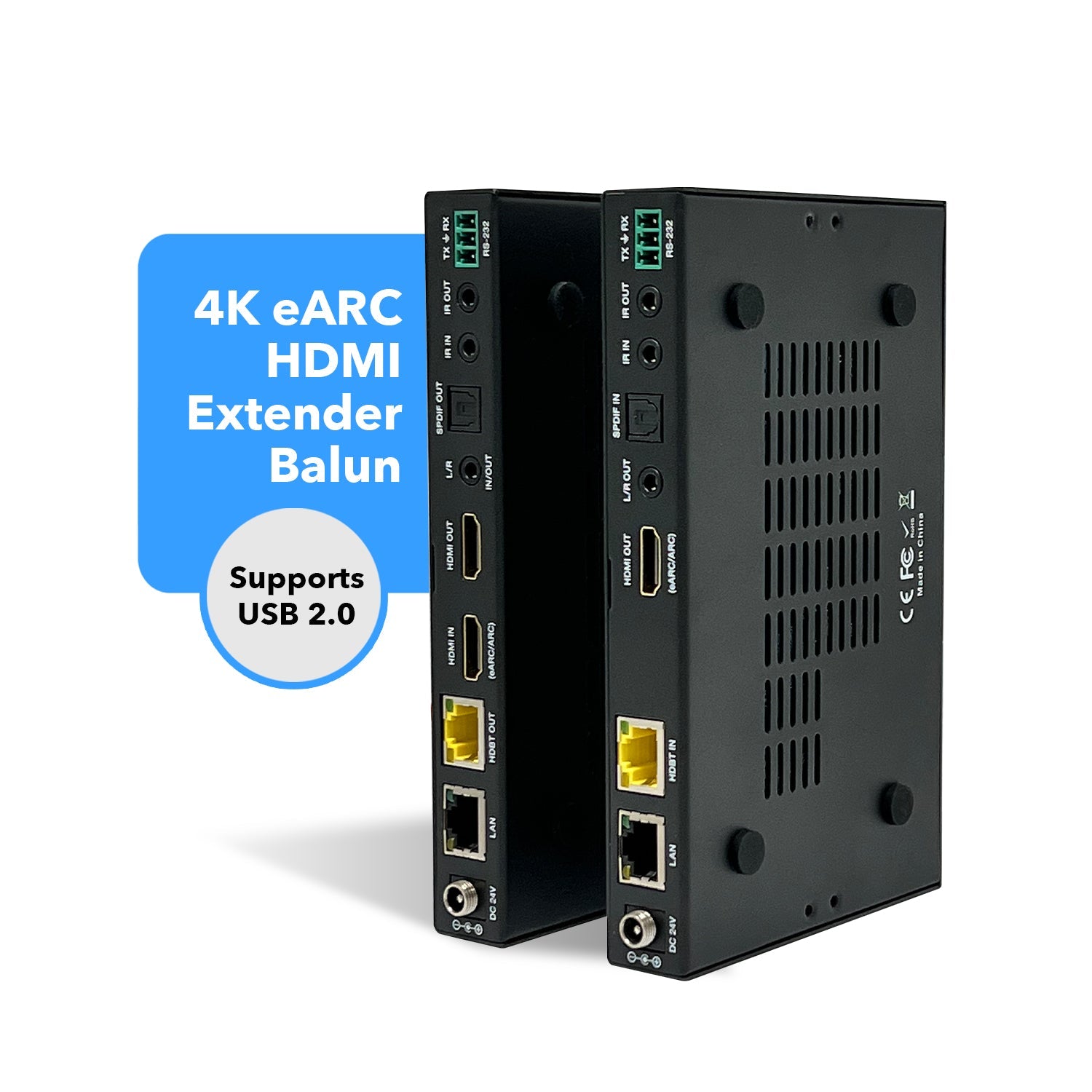

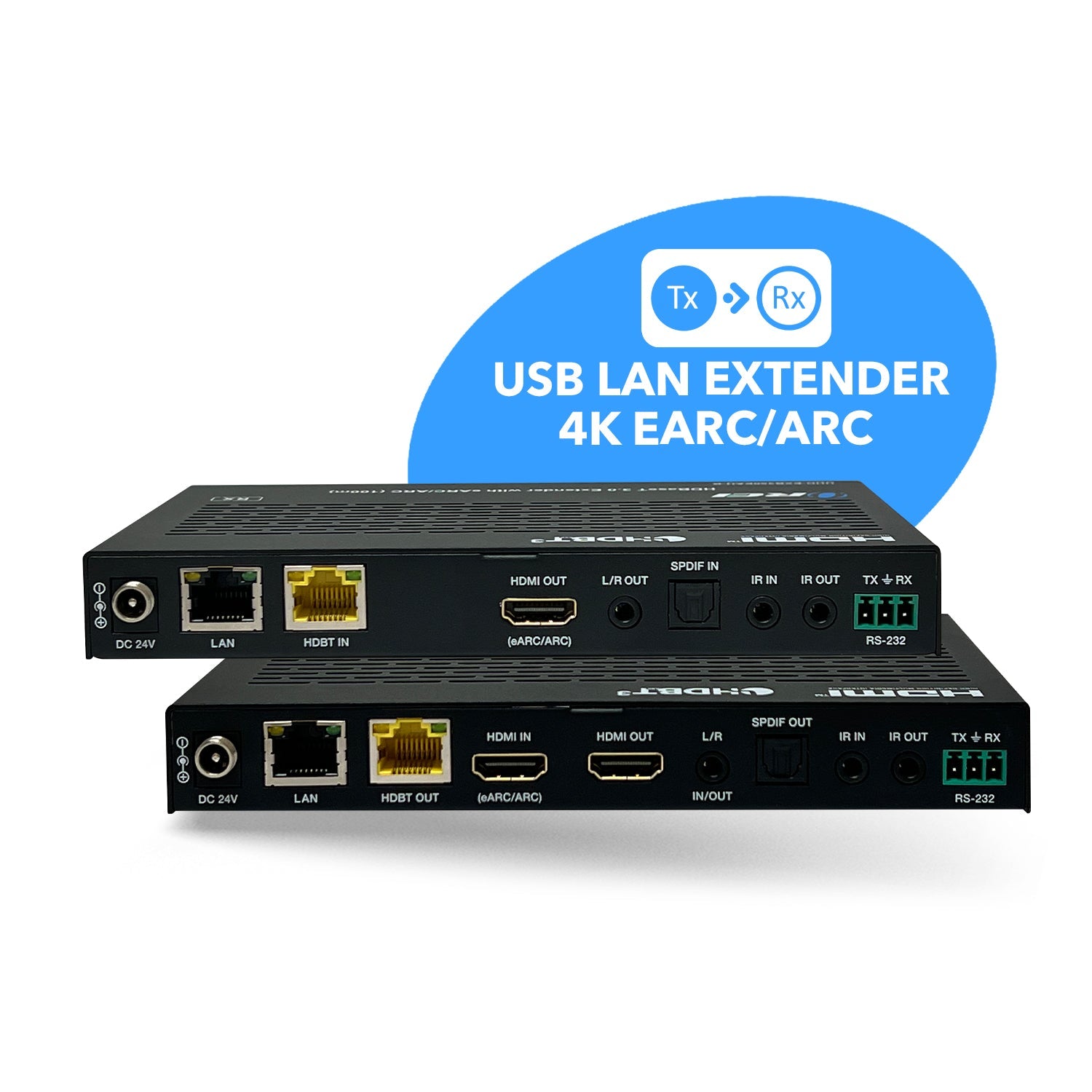

CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × HDBaseT [RJ45, 8-pin female]
CONTROL:
1 × L/R [3.5mm Stereo Mini-jack]
1 × Optical [S/PDIF]
1 × SERVICE [Micro USB, Update port]
CONTROL
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3-pin phoenix connector]
1 × USB HOST [USB Type B]
2 × USB 2.0 [USB Type A]
1 × LAN [RJ45, 8-pin female]
1 × SERVICE [Micro USB, Update port]
Receiver:
INPUT:
1 × HDBaseT [RJ45, 8-pin female]
1 × Optical [S/PDIF]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × L/R [3.5mm Stereo Mini-jack]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × IR OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3-pin Phoenix connector]
1 × USB HOST [USB Type B]
2 × USB 2.0 [USB Type A]
1 × SERVICE [Micro USB, Update port]
1 × LAN [RJ45, 8-pin female]
PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x IR Blaster cable
1x IR Receiver cable
2x 3-pin Phoenix Connectors
4x Mounting Ears
8x Machine Screws
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
