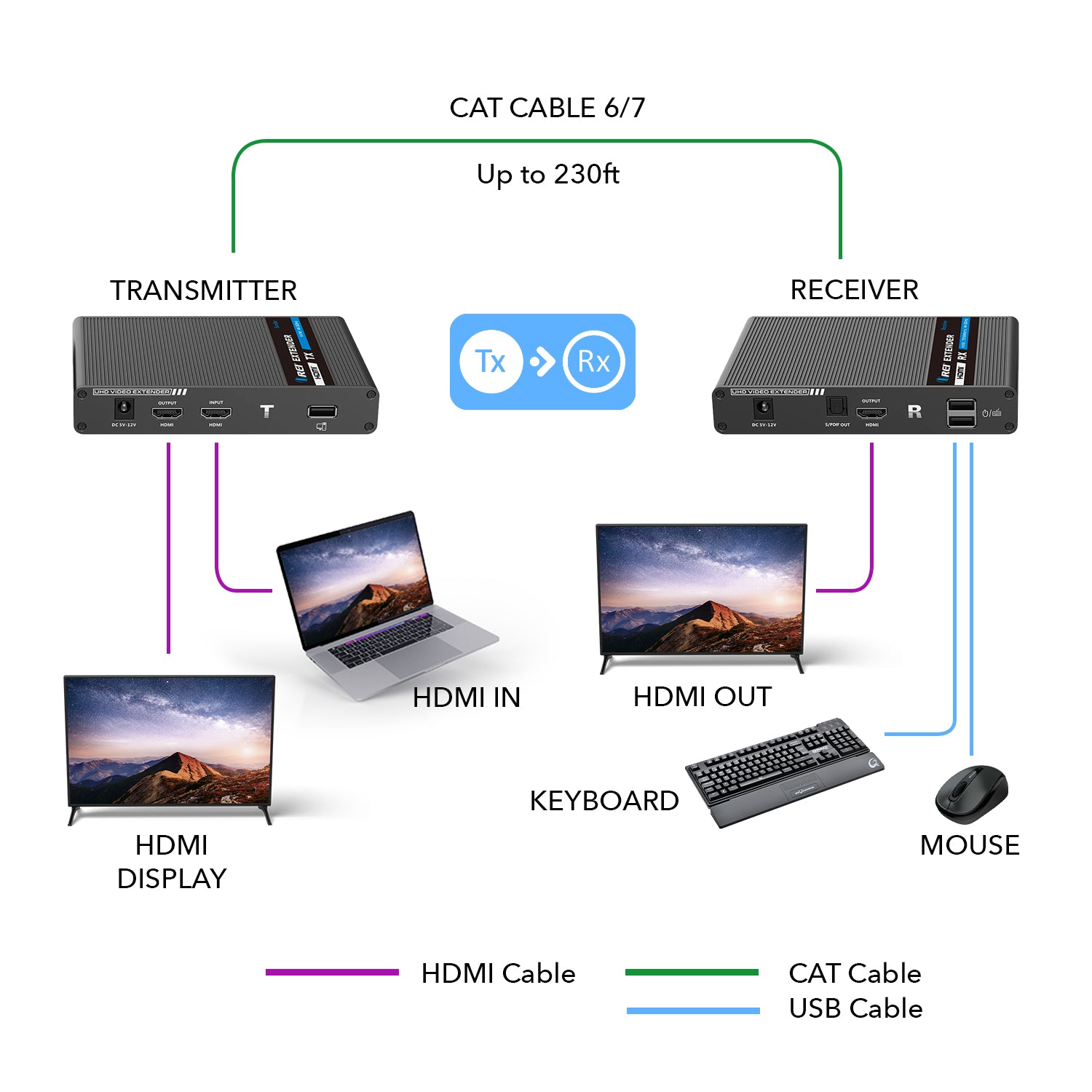

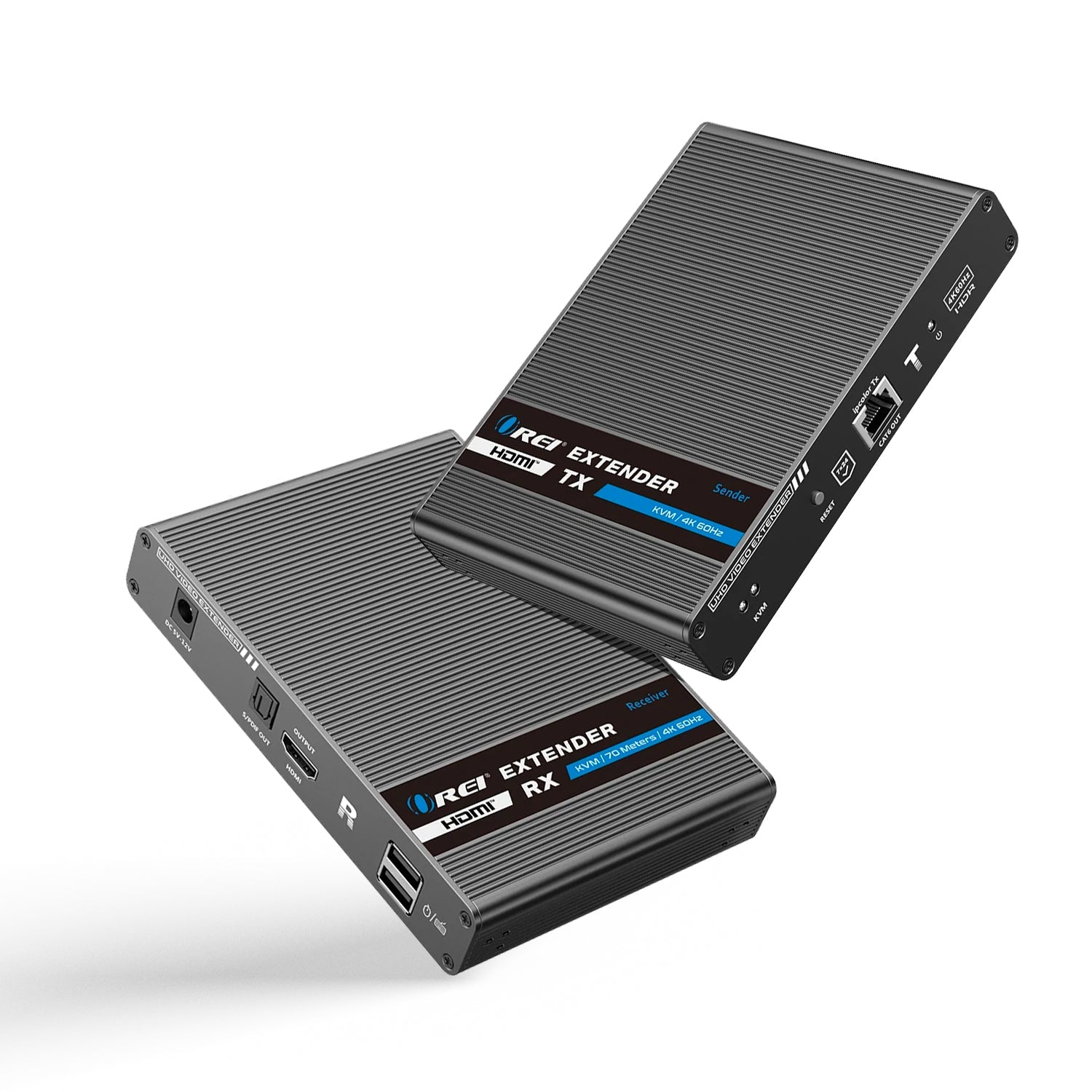

UHD-IPC230-KVM is a 4K UHD KVM HDMI Extender, allows HDMI signal to be transmitted up to 230 feet at 4K@60Hz resolution using a round shielded CAT6/7 network ethernet cable.
Compatible with HDMI units such PC, Roku, TV, Amazon Fire TV, Ultra Projector, Xbox, Apple TV, HDMI LCD, Cable box, Blu-ray player, DVD player, PC, STB and more. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, conference etc.
[shortdes]

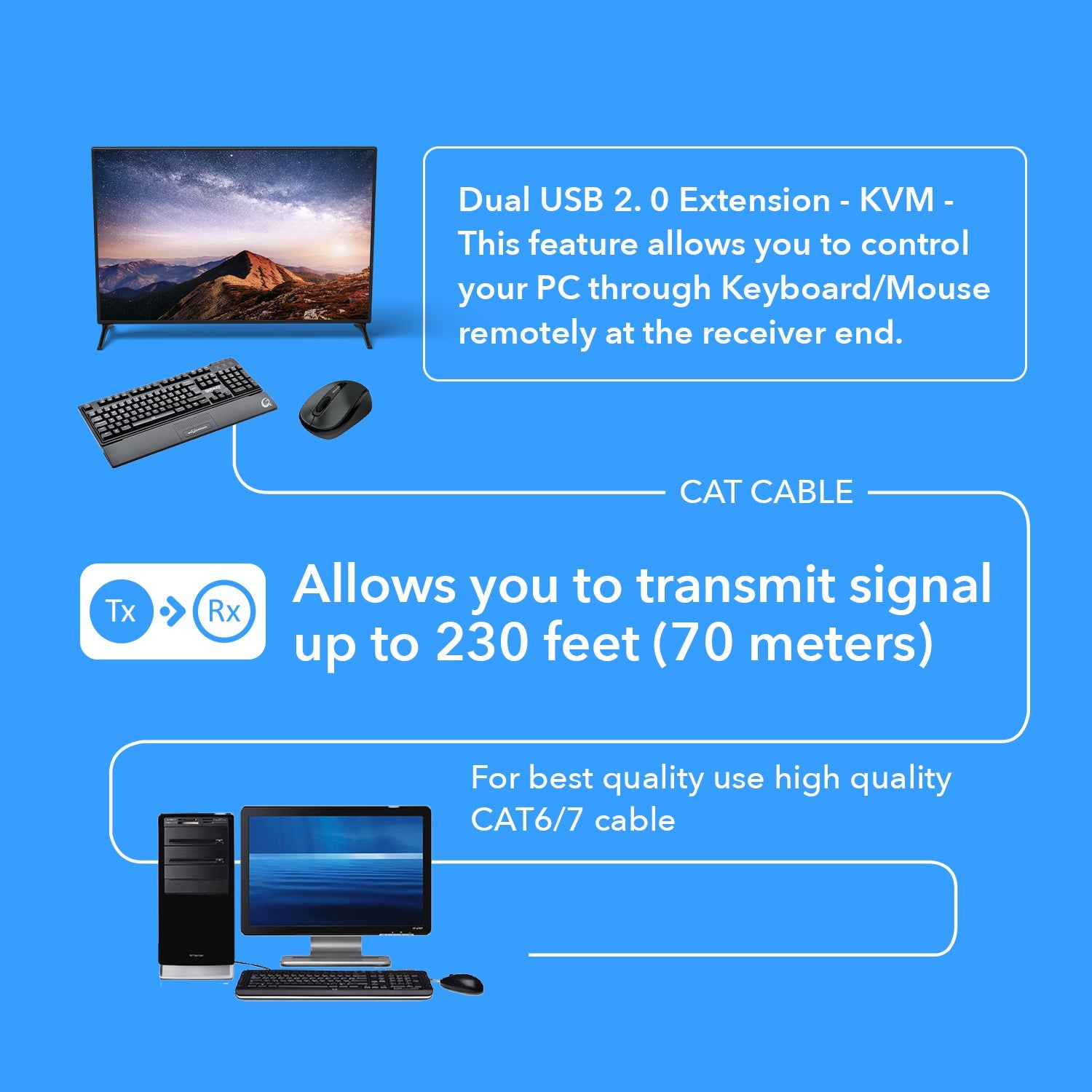

Supports KVM function
Able to extract the audio via S/PDIF port
Supports HDR (YUV 4:4:4), EDID pass back
[/shortdes]
[tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
1x HDMI Input
1x USB
OUTPUT PORTS:
1x Optical Output
1x RJ45 Output
Receiver:
INPUT PORTS:
1x RJ45 Input
OUTPUT PORTS:
1x HDMI Output
2x USB
COMPLIANCES
HDMI Compliance:
HDMI 2.0
HDCP Compliance:
HDCP 2.2
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
CEC Function:
No
ARC Function:
No
USB KVM Function:
Yes
PoC/PoE Function:
No
IR Controller:
No
Downscaler Function:
No
Over Network/IP Function:
No
HDBaseT Function:
No
RS-232 Function:
No
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO OUTPUT
HDMI Audio Formats:
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1 Ch.
SPDIF/Optical Audio Formats:
Up to 5.1Ch.
SIGNALS
TMDS Signals:
0.7-1.2Vp-p(TMDS)
DDC Signals:
5Vp-p(TTL)

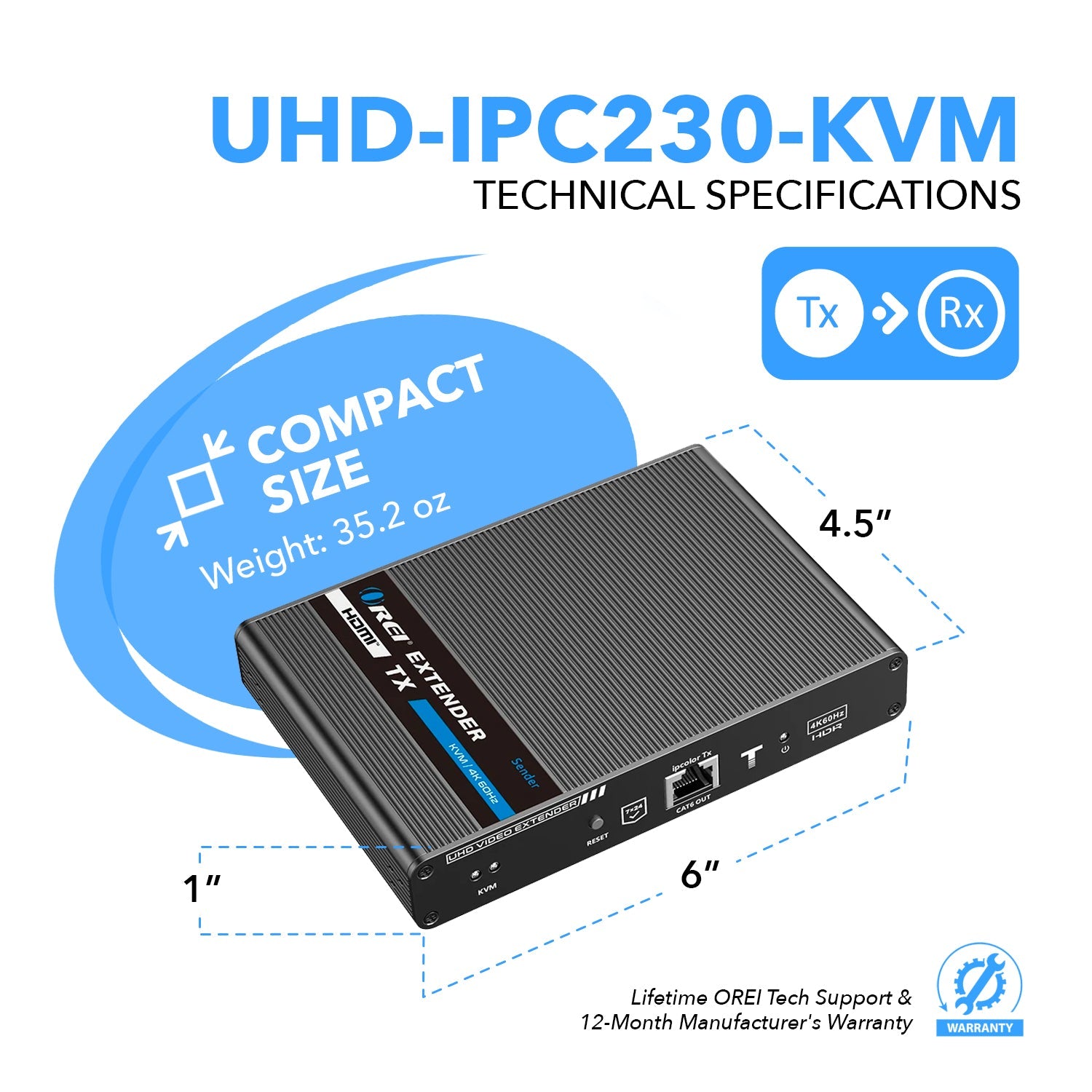

DIMENSIONS & WEIGHT
Height:
28.4mm
Width:
107mm
Depth:
150mm
Weight:
Transmitter:
260g
Receiver:
260g
PROTECTION
Operation Temperature:
-20 ~ 60°C
Storage temperature:
-30 ~ 70°C
Relative Humidity:
0 ~ 90% RH
Electrostatic Protection of the whole Machine:
1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2
RJ-45 CONNECTOR Type
WE/SS 8P8C
POWER
Power Consumption (Max):
Transmitter:
4W
Receiver:
4W
Power Supply:
DC5V/2A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Aluminium Alloy Material + Crystal Panel
Treatment Process:
Grit Blast
Input Cable Length:
<=8m(AWG24)
Output Cable Length:
<=8m(AWG24)

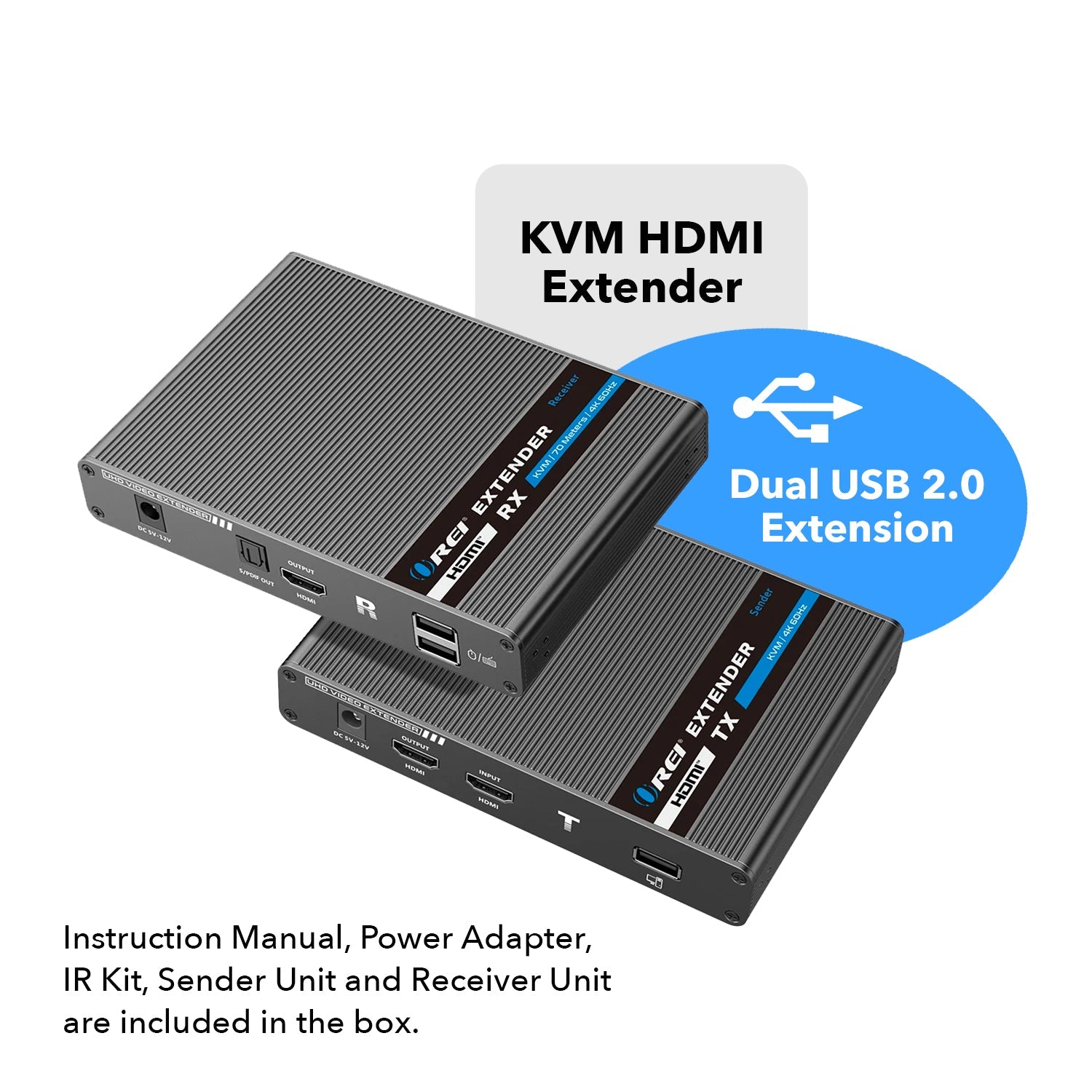

PACKAGE CONTENTS
1x HDMI Transmitter
1x HDMI Receiver
2x DC5V/2A Power Adapter
1x USB Cable
8x Mounting Brackets
18x Screw
1x User Manual
WARRANTY
1 - Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product does not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
You can extend the display devices up to 230 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
[/tab1]
General Information
UPC
850031132054
