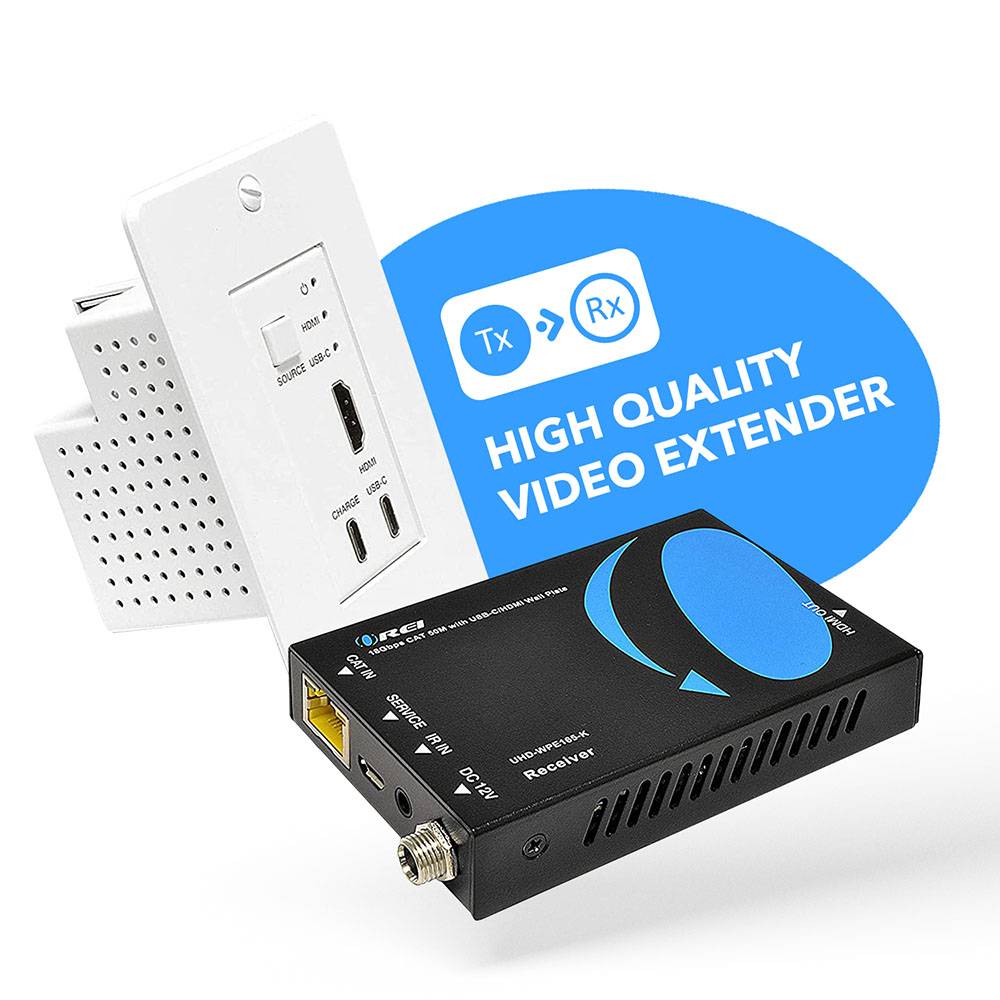

UHD-WPE165-K: 4K HDMI Extender Over CAT 6 with wall plate transmitter USB C input with charging up to 165 feet
Key Features:
HDMI 2.0, HDCP 2.2 compliant
Video resolutions up to 4K@60Hz and 2K@60Hz
18Gbps video bandwidth
Signal transmission up to 165 feet over a CAT 6/6 cable
HDMI and USB C inputs
Automatic switching or manual switching through the button on the wall plate
USB C charge port to charge your laptop

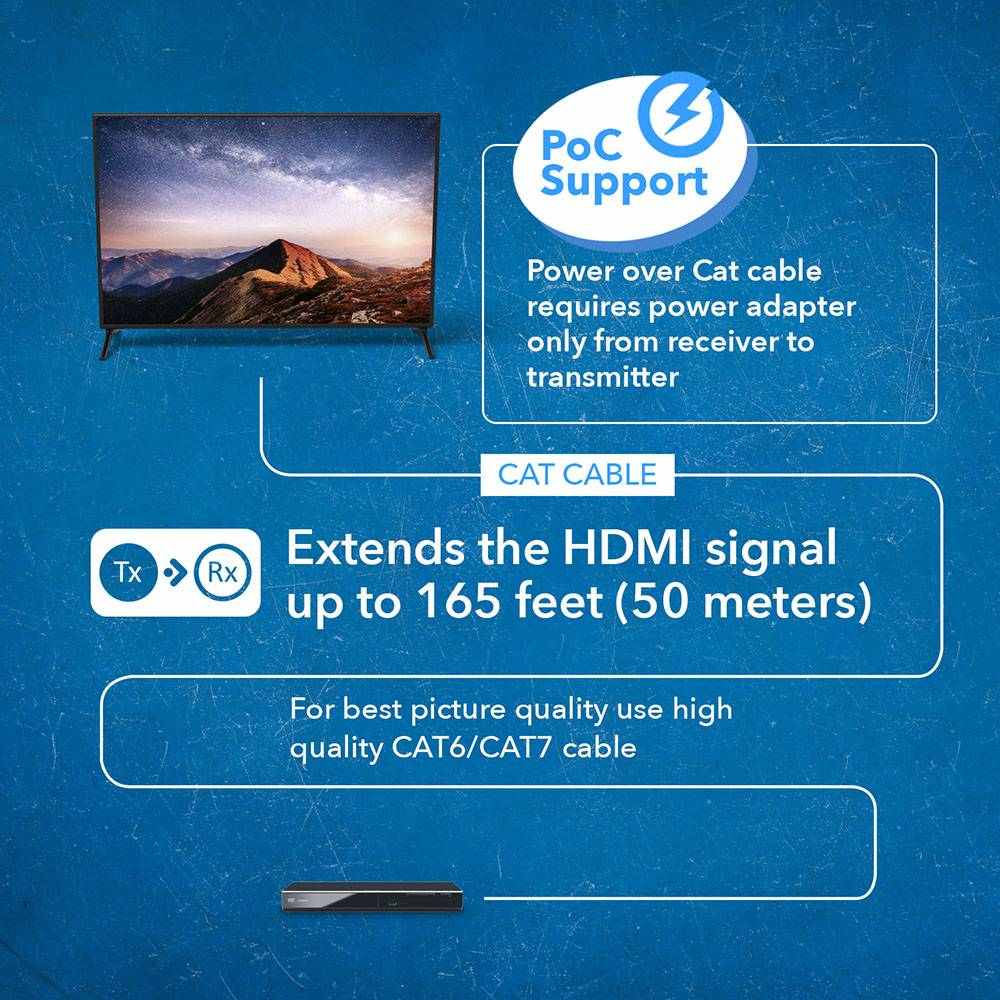

Power over Cable technology only requiring power adapter at the Receiver end
US decora wall plate for easy integration in your home

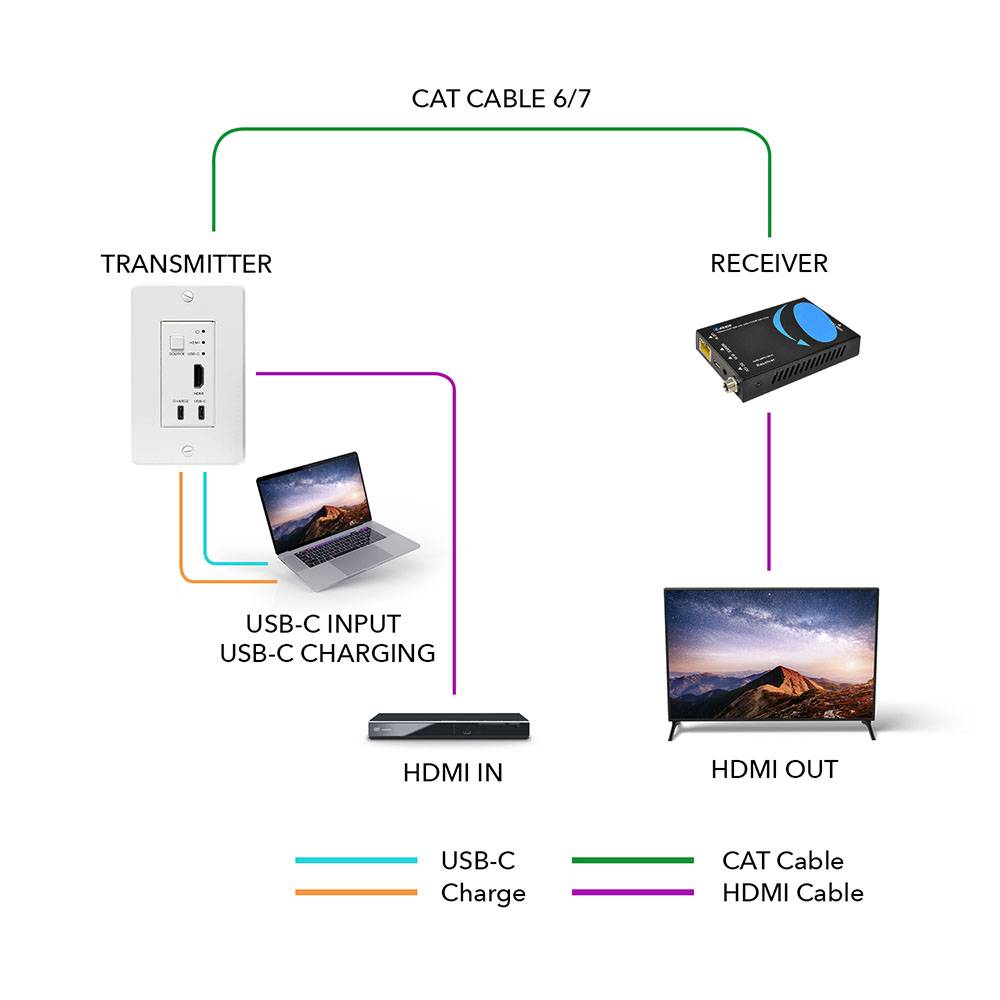

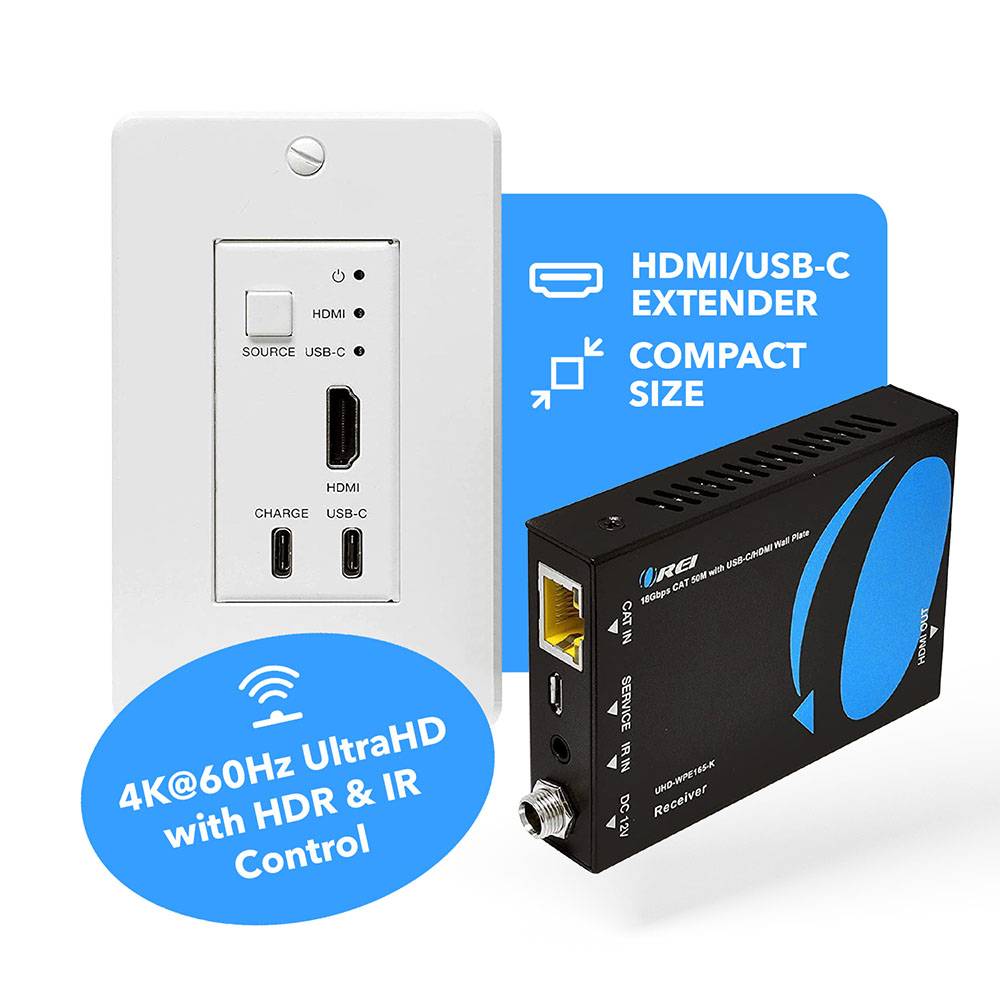

The UHD-WPE165-K HDMI Extender features a wall plate transmitter for seamless home integration. It supports video resolutions up to 4K@60Hz and 2K@60Hz and is HDMI 2.0 and HDCP 2.2 compliant. With an HDMI input and a USB C input, it also includes a USB C charge port on the left for laptop charging via a power adapter. Boasting an 18Gbps video bandwidth, it can switch between HDMI and USB C inputs automatically or manually using the wall plate button. Power over Cable technology requires just one power adapter at the Receiver end to power both units. Perfect for home setups.
[tab]
CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
1 × USB Type C [Female] 1 × USB Type C [for Charging Female]
OUTPUT:
1 × LAN [RJ45, 8-pin female]
CONTROL:
1 × SERVICE [Micro USB, Update port]
Receiver:
INPUT:
1 × LAN [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
CONTROL:
1 × IR IN [3.5mm Stereo Mini-jack]
1 × SERVICE [Micro USB, Update port]

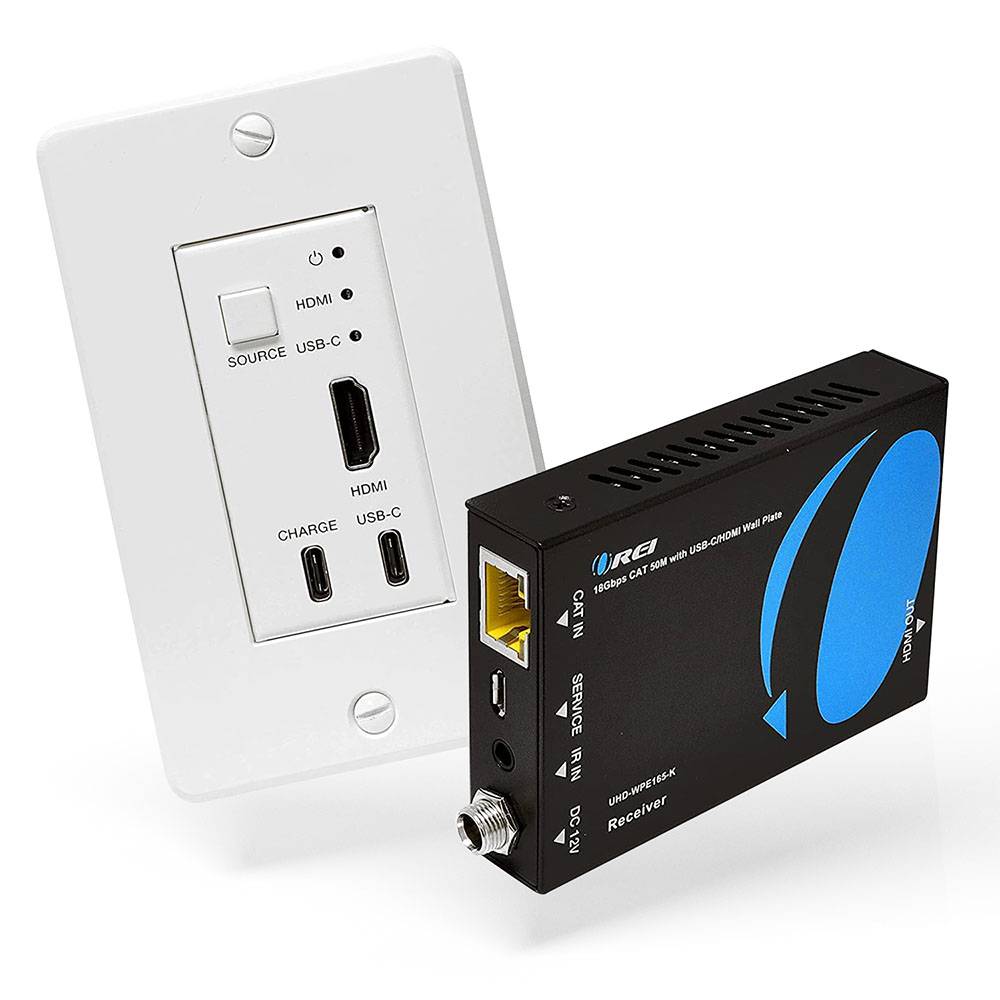

PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x Wall plate for Transmitter
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e/6/7 cables:
We recommend you use CAT6/7 cables for optimum performance.
